Products / LINEARLIGHT FLEX DIFFUSE TOP WHITE LFD800T-G2-965-06 135W 24V IP66/IP68

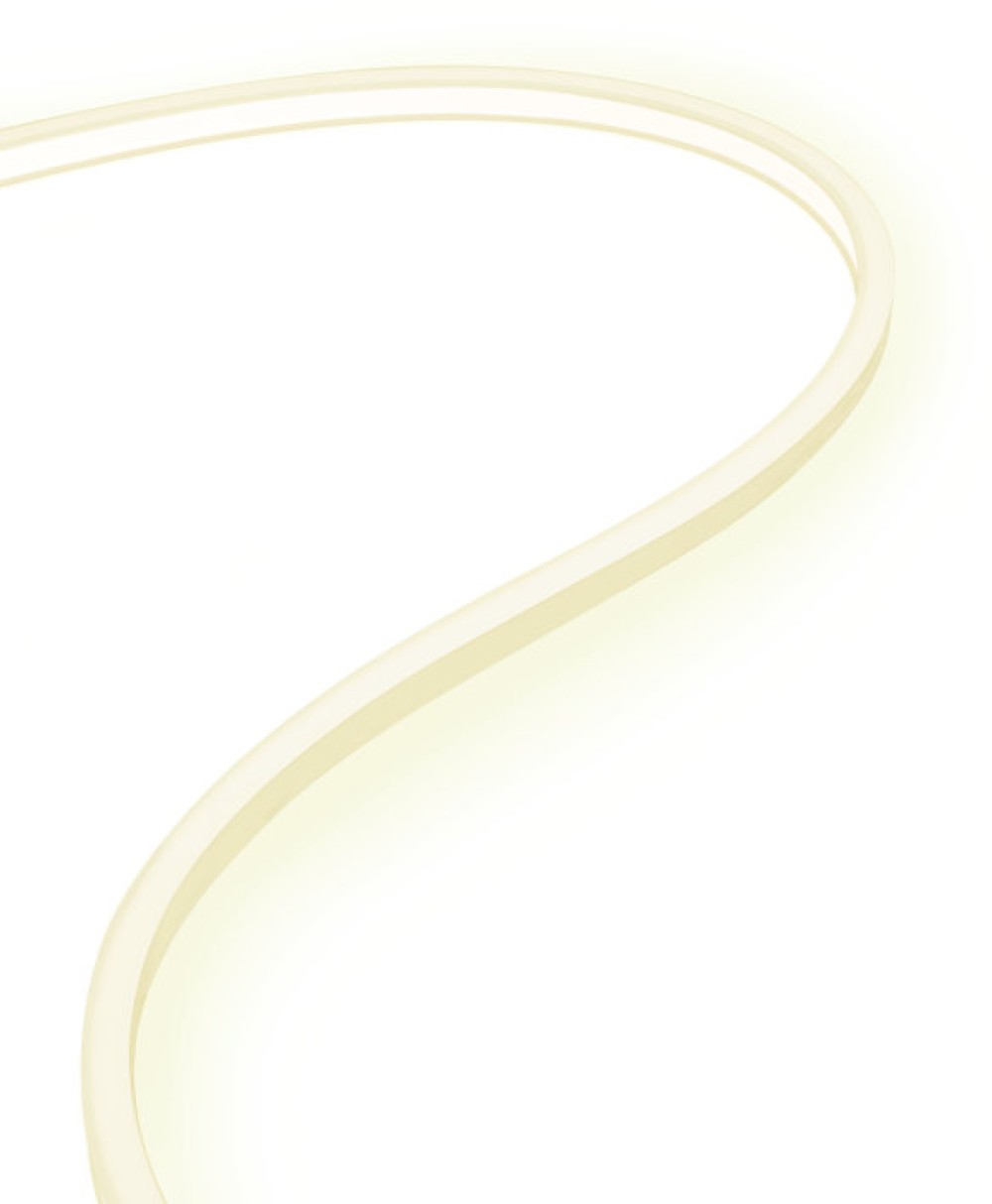

LINEARLIGHT FLEX DIFFUSE TOP WHITE LFD800T-G2-965-06 135W 24V IP66/IP68

EAN: 4062172270595

845,48 € (+ 20% VAT)

You need to register / log in to buy

Sales unit

Length 6000mm

Product features

Diffused light lines without visible spots
Flexible and cuttable module to support design freedom
Long operational length per single power feed possible (up to 6m)
Ideal for luminaire designs
Extra strong self-adhesive backside for easy mounting
24V technology for easy dimensioning
Recommended in system use with OPTOTRONIC
Increased reliability due to single piece reel-to-reel technology
Dimmable with PWM technology

Product benefits

IP67 protection with high performance silicone
Outdoor use possible: UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)

Areas of application

Individual and customized luminaires
Organic shaped luminaires
Architectural Integration – e.g. coves, walls
Object integration – e.g. handrails
Signage and illuminated advertising

Family data sheet View downloads

Products

Product	Color temp	Color rendering index Ra	Luminous flux per meter	Color temperature	Data sheet
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-824-06 69.12W 24V IP66/IP67	2385 K	>80	780 lm
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-830-06 69.12W 24V IP66/IP67		>80	810 lm	2950 K
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-827-06 69.12W 24V IP66/IP67	2675 K	>80	780 lm
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-840-06 69.12W 24V IP66/IP67	4265 K	>80	810 lm
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-865-06 69.12W 24V IP66/IP67	7575 K	>80	700 lm
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-924-06 69.12W 24V IP66/IP67	2305 K	≥90	550 lm
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-930-06 69.12W 24V IP66/IP67	2890 K	≥90	680 lm
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-935-06 69.12W 24V IP66/IP67	3240 K	≥90	680 lm
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-940-06 69.12W 24V IP66/IP67	4160 K	≥90	680 lm
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-965-06 69.12W 24V IP66/IP67	7010 K	≥90	640 lm
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-824-06 135W 24V IP66/IP68	2400 K	≥80	950 lm
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-827-06 135W 24V IP66/IP68	2700 K	≥80	1000 lm
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-830-06 135W 24V IP66/IP68	3000 K	≥80	1050 lm
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-835-06 135W 24V IP66/IP68	3500 K	≥80	1050 lm
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-840-06 135W 24V IP66/IP68	4000 K	≥80	1050 lm
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-865-06 135W 24V IP66/IP68	6500 K	≥80	950 lm
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-924-06 135W 24V IP66/IP68	2400 K	≥90	800 lm
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-927-06 135W 24V IP66/IP68	2700 K	≥90	870 lm
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-930-06 135W 24V IP66/IP68	3000 K	≥90	870 lm
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-935-06 135W 24V IP66/IP68	3500 K	≥90	910 lm
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-940-06 135W 24V IP66/IP68	4000 K	≥90	910 lm
