Products / LINEARLIGHT FLEX DIFFUSE TOP WHITE, LFD800T-G1-824-06 69.12W 24V IP66/IP67

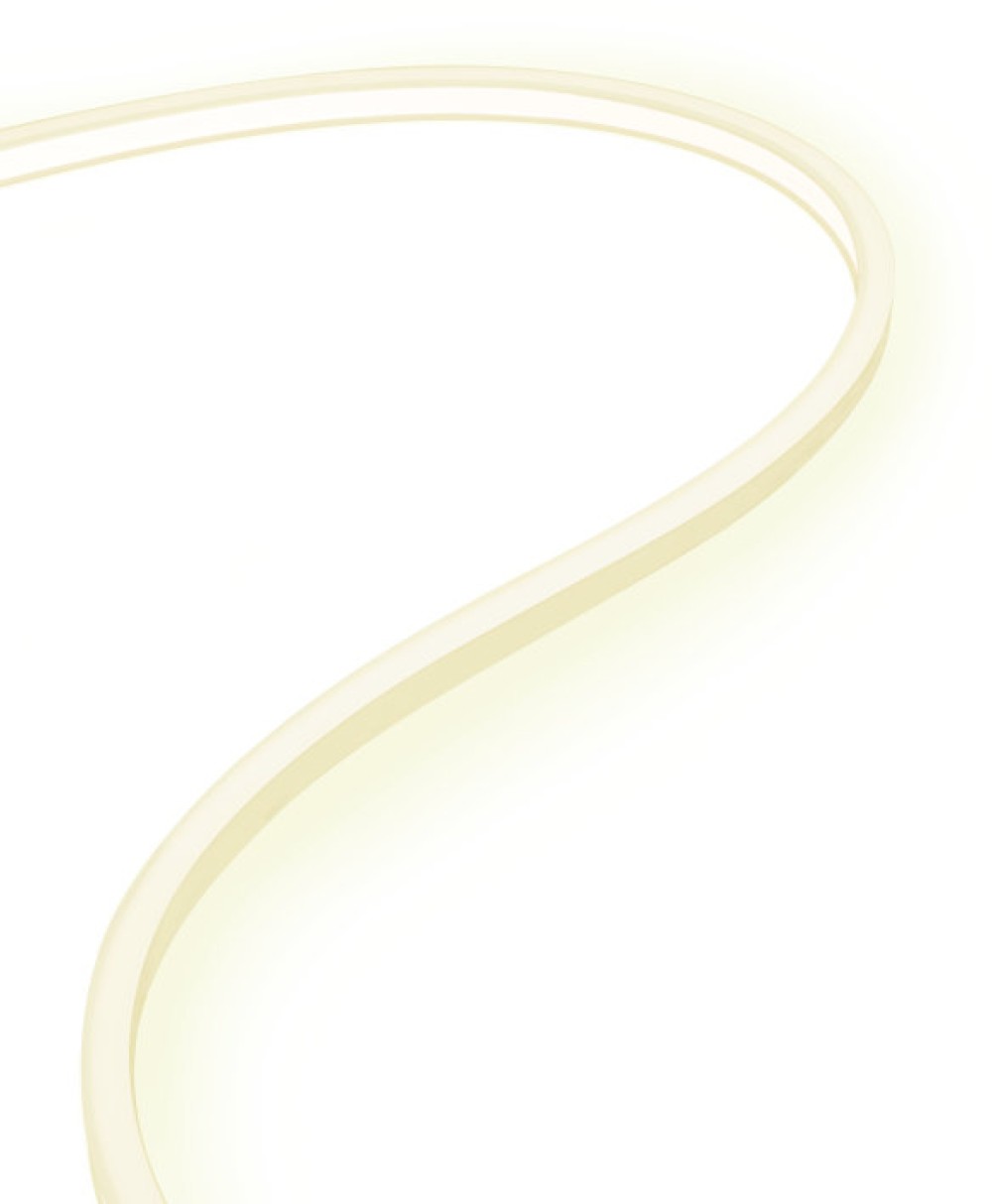

LINEARLIGHT FLEX DIFFUSE TOP WHITE, LFD800T-G1-824-06 69.12W 24V IP66/IP67

EAN: 4052899581883

748,94 € (+ 20% VAT)

You need to register / log in to buy

Sales unit

Length 6000mm

Product features

Diffused light lines without visible spots
Flexible and cuttable module to support design freedom
Long operational length per single power feed possible (up to 6m)
Ideal for luminaire designs
Extra strong self-adhesive backside for easy mounting
24V technology for easy dimensioning
Recommended in system use with OPTOTRONIC
Increased reliability due to single piece reel-to-reel technology
Dimmable with PWM technology

Product benefits

IP67 protection with high performance silicone
Outdoor use possible: UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)

Areas of application

Individual and customized luminaires
Organic shaped luminaires
Architectural Integration – e.g. coves, walls
Object integration – e.g. handrails
Signage and illuminated advertising

Family data sheet View downloads

Products

Product	Color rendering index Ra	Color temperature	Luminous flux per meter	Color temp	Data sheet
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-830-06 69.12W 24V IP66/IP67	>80	2950 K	810 lm
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-827-06 69.12W 24V IP66/IP67	>80		780 lm	2675 K
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-840-06 69.12W 24V IP66/IP67	>80		810 lm	4265 K
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-865-06 69.12W 24V IP66/IP67	>80		700 lm	7575 K
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-924-06 69.12W 24V IP66/IP67	≥90		550 lm	2305 K
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-930-06 69.12W 24V IP66/IP67	≥90		680 lm	2890 K
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-935-06 69.12W 24V IP66/IP67	≥90		680 lm	3240 K
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-940-06 69.12W 24V IP66/IP67	≥90		680 lm	4160 K
LINEARlight FLEX DIFFUSE Top White, LFD800T-G1-965-06 69.12W 24V IP66/IP67	≥90		640 lm	7010 K
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-824-06 135W 24V IP66/IP68	≥80		950 lm	2400 K
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-827-06 135W 24V IP66/IP68	≥80		1000 lm	2700 K
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-830-06 135W 24V IP66/IP68	≥80		1050 lm	3000 K
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-835-06 135W 24V IP66/IP68	≥80		1050 lm	3500 K
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-840-06 135W 24V IP66/IP68	≥80		1050 lm	4000 K
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-865-06 135W 24V IP66/IP68	≥80		950 lm	6500 K
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-924-06 135W 24V IP66/IP68	≥90		800 lm	2400 K
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-927-06 135W 24V IP66/IP68	≥90		870 lm	2700 K
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-930-06 135W 24V IP66/IP68	≥90		870 lm	3000 K
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-935-06 135W 24V IP66/IP68	≥90		910 lm	3500 K
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-940-06 135W 24V IP66/IP68	≥90		910 lm	4000 K
LINEARlight FLEX DIFFUSE Top White LFD800T-G2-965-06 135W 24V IP66/IP68	≥90		860 lm	6500 K

LINEARLIGHT FLEX DIFFUSE TOP WHITE, LFD800T-G1-824-06 69.12W 24V IP66/IP67

Products

Downloads

Data sheets, brochures and technical information
