OT 4DIM NFC IP20 OUTDOOR
EAN: OT 4DIM NFC IP20 OUTDOOR
Sales unit
- 1 pcs
- Input voltage: 220…240 V
- Current output range: 70…1,050 mA
- Easy and fast wireless luminaire programming via NFC
- Flexible current setting with one additional wire (LEDset2)
- AstroDIM for autonomous dimming with five independent levels (astro, time mode)
- Allows for energy saving in twilight phases
- MainsDIM function for dimming via reduction of line voltage amplitude
- Isolated DALI interface for bidirectional telemanagement systems
- Standby power consumption: < 0.5 W
- Constant Lumen Output (CLO)
- Overtemperature protection via external NTC
- Integrated customizable thermal management (Driver Guard)
- 4DIM functionality in one device (StepDIM, AstroDIM, MainsDIM, DALI)
- Easy and fast wireless luminaire programming
- Very high efficiency
- Wide current output range: 200 mA…1050 mA
- High surge protection: up to 10 kV (in protection class I or II)
- Great flexibility due to wide operating temperature range of -40…55 °C or 60 °C
- Protection through double isolation between mains input and LED output
- Street and urban lighting
- Industry
- Suitable for outdoor applications in luminaires with IP > 54
- Suitable for use in outdoor luminaires of protection class I and II
Products
| Product | Nominal output current | Nominal output voltage | Data sheet |

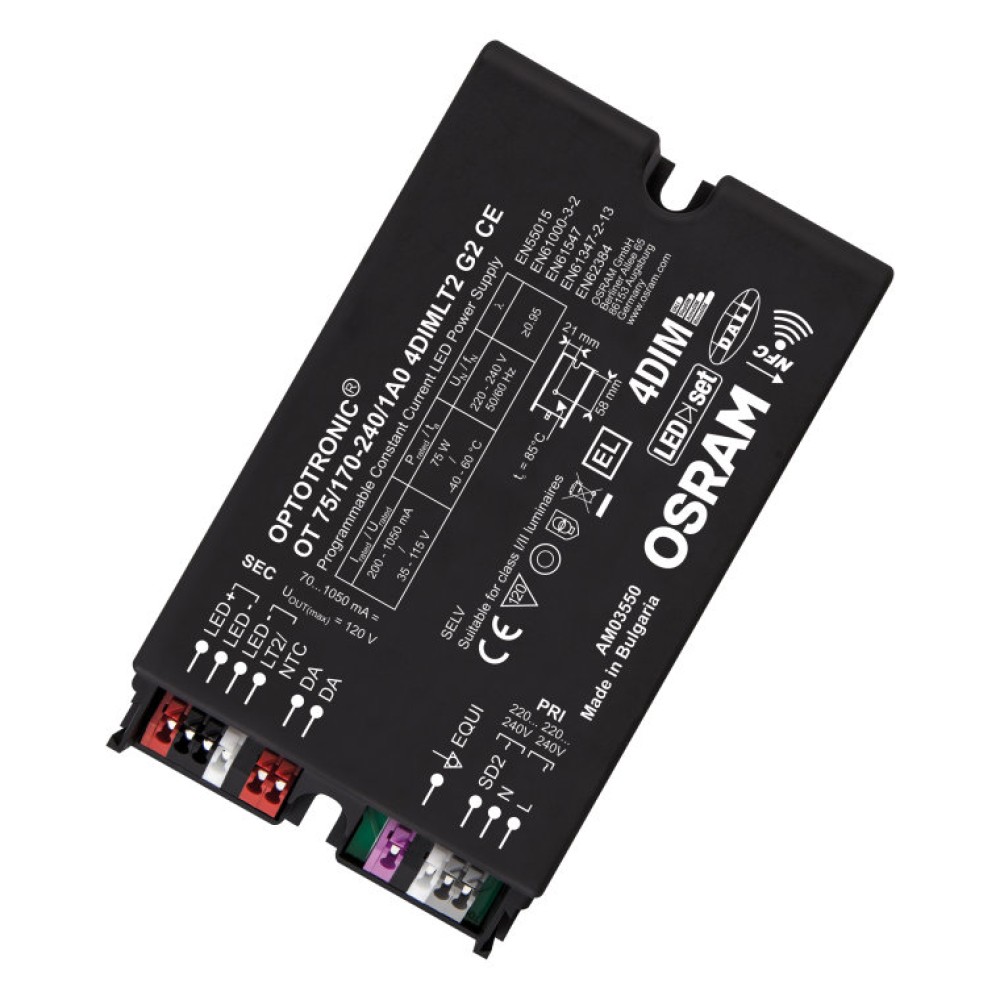

OT 75/170-240/1A0 4DIMLT2 G2 CE
|
200…1050 mA | 35…115 V | |

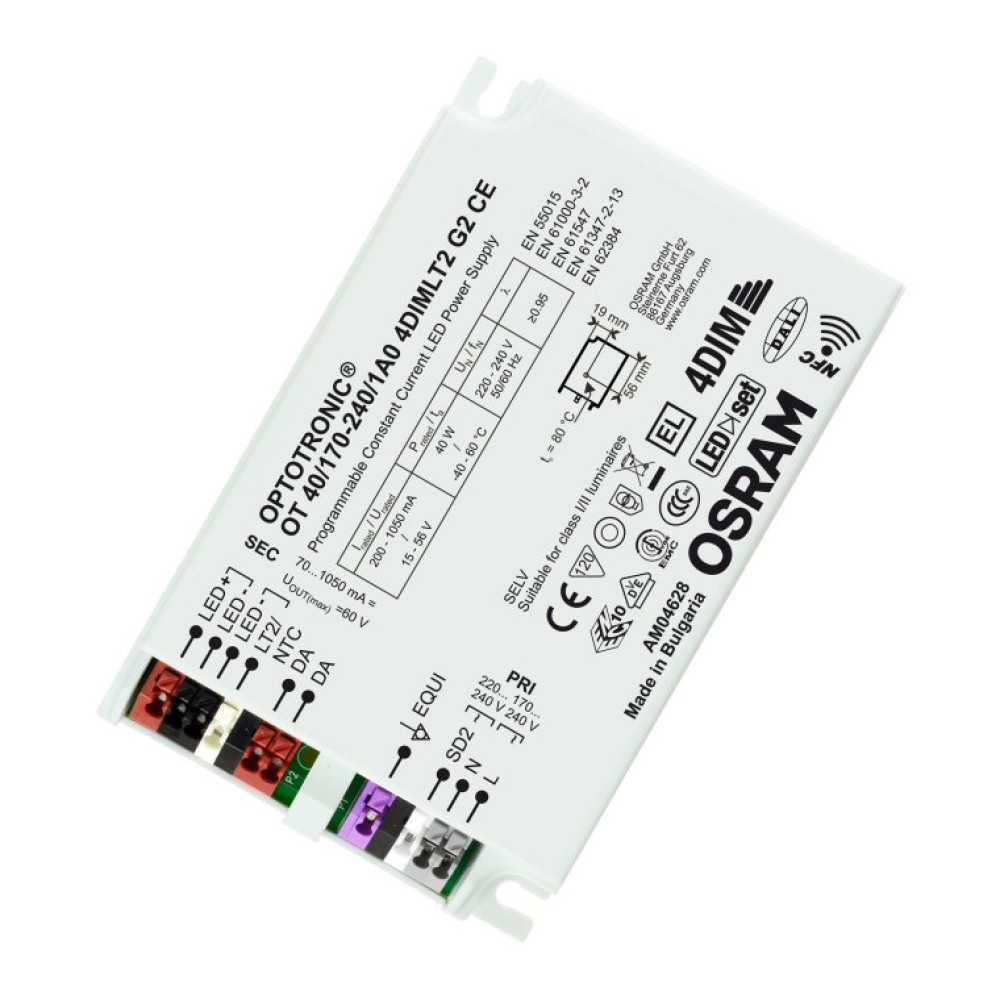

OT 40/170-240/1A0 4DIMLT2 G2 CE
|
200…1050 mA | 15…56 V | |

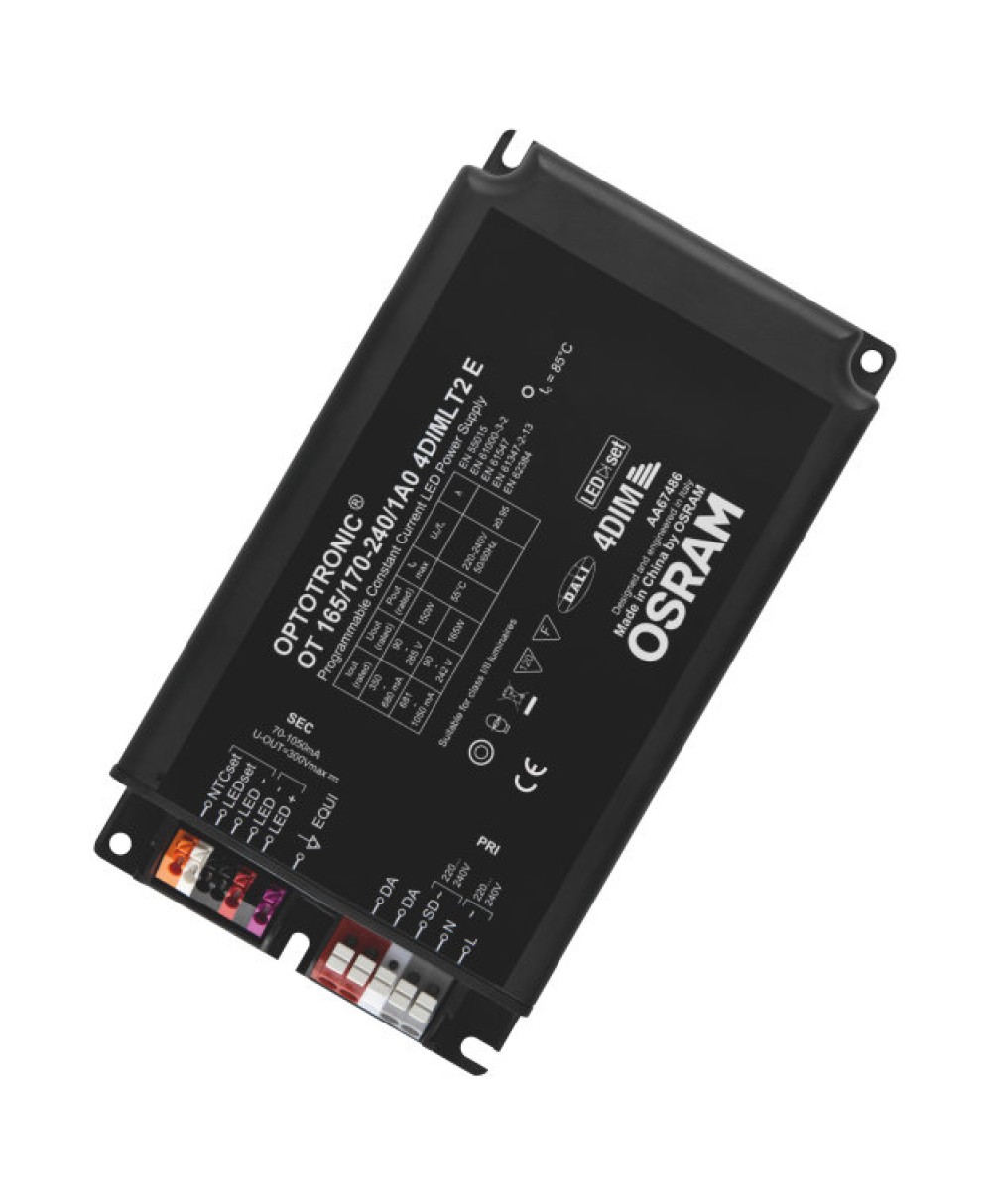

OT 165/170-240/1A0 4DIMLT2 E
|
200…1050 mA | 130…260 V | |
OT 20/170-240/800 4DIMLT2 G2 CE
|
200…1050 mA | 10…38 V | |

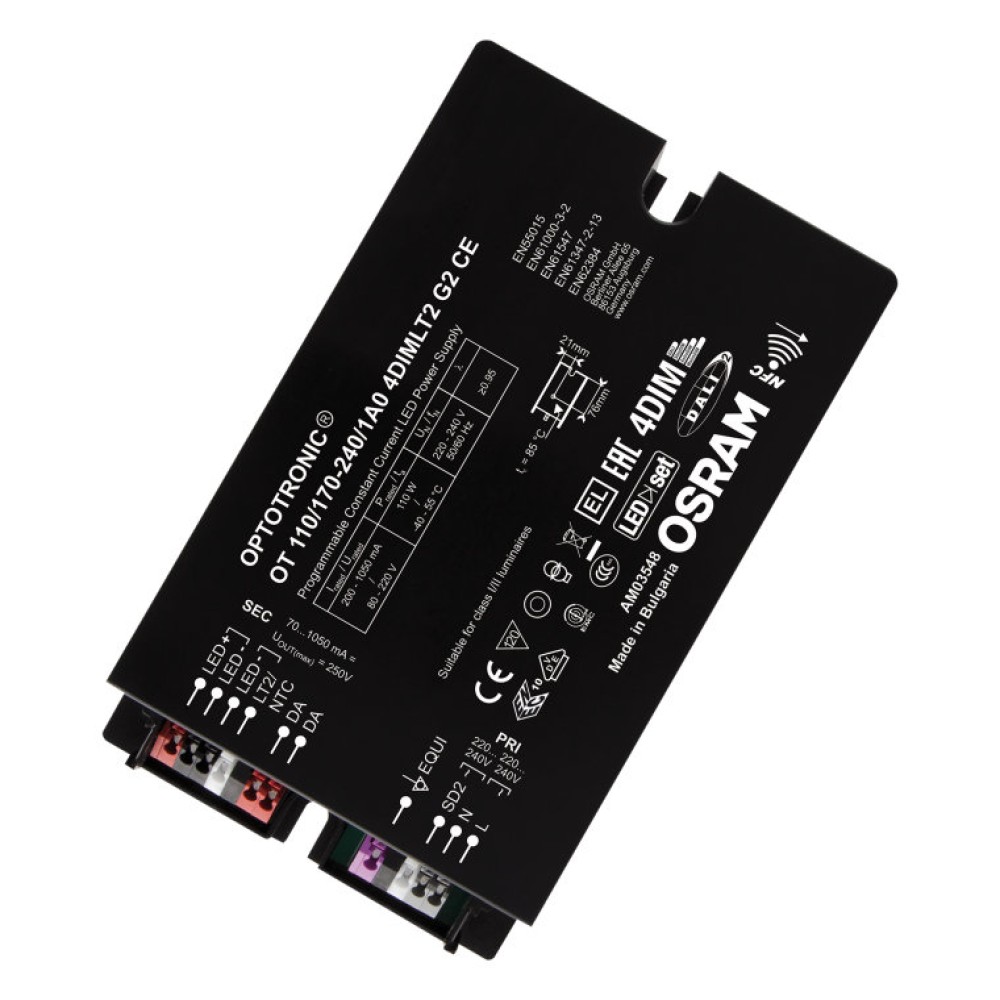

OT 110/170-240/800 4DIMLT2 G2 CE
|
200…1050 mA | 80…220 V |
