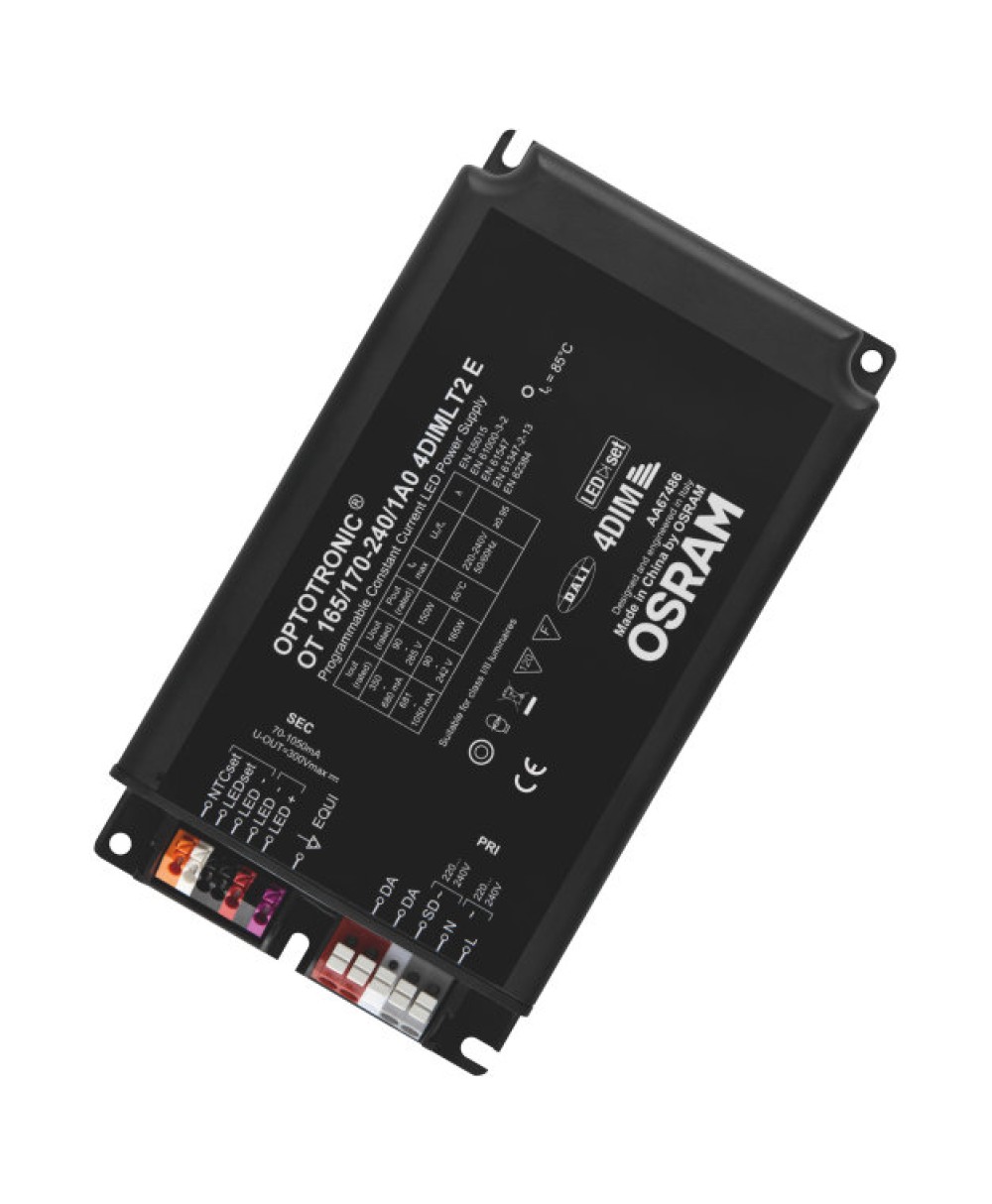

OT 165/170-240/1A0 4DIMLT2 E
EAN: 4052899925212
48,29 €
(+ 20% VAT)
You need to register / log in to buy
Sales unit
Family data sheet
View downloads
- 1 pcs
- Available with different wattage: 40 W, 60 W, 90 W, 165 W
- Input voltage: 120…277 V (40 W), 220…240 V (60 W, 90 W, 165 W)
- Current output range: 70…1,050 mA
- Flexible current setting with one additional wire (LEDset2)
- AstroDIM for autonomous dimming with five independent levels (astro, time mode)
- Allows for energy saving in twilight phases
- MainsDIM function for dimming via reduction of line voltage amplitude
- Isolated DALI interface for bidirectional telemanagement systems
- Standby power consumption: < 0.5 W
- Constant Lumen Output (CLO)
- Overtemperature protection via external NTC
- 4DIM functionality in one device (StepDIM, AstroDIM, MainsDIM, DALI)
- Very high efficiency
- High surge protection: up to 10 kV (1 pulse) / 8 kV, in protection class I or II
- Low luminous efficacy tolerance through low output current tolerance of ± 3 %
- Great flexibility due to wide operating temperature range of -40…55 °C or 60 °C
- Protection through double isolation between mains input and LED output
- Street and urban lighting
- Industry
- Suitable for outdoor applications in luminaires with IP > 54
- Suitable for use in outdoor luminaires of protection class I and II
- DALI magic hardware for configuring 4DIM ECGs necessary
- Programmable via Tuner4TRONIC software
Products
| Product | Nominal output current | Nominal output voltage | Data sheet |
OT 75/170-240/1A0 4DIMLT2 G2 CE
|
200…1050 mA | 35…115 V | |
OT 40/170-240/1A0 4DIMLT2 G2 CE
|
200…1050 mA | 15…56 V | |
OT 20/170-240/800 4DIMLT2 G2 CE
|
200…1050 mA | 10…38 V | |
OT 110/170-240/800 4DIMLT2 G2 CE
|
200…1050 mA | 80…220 V |
