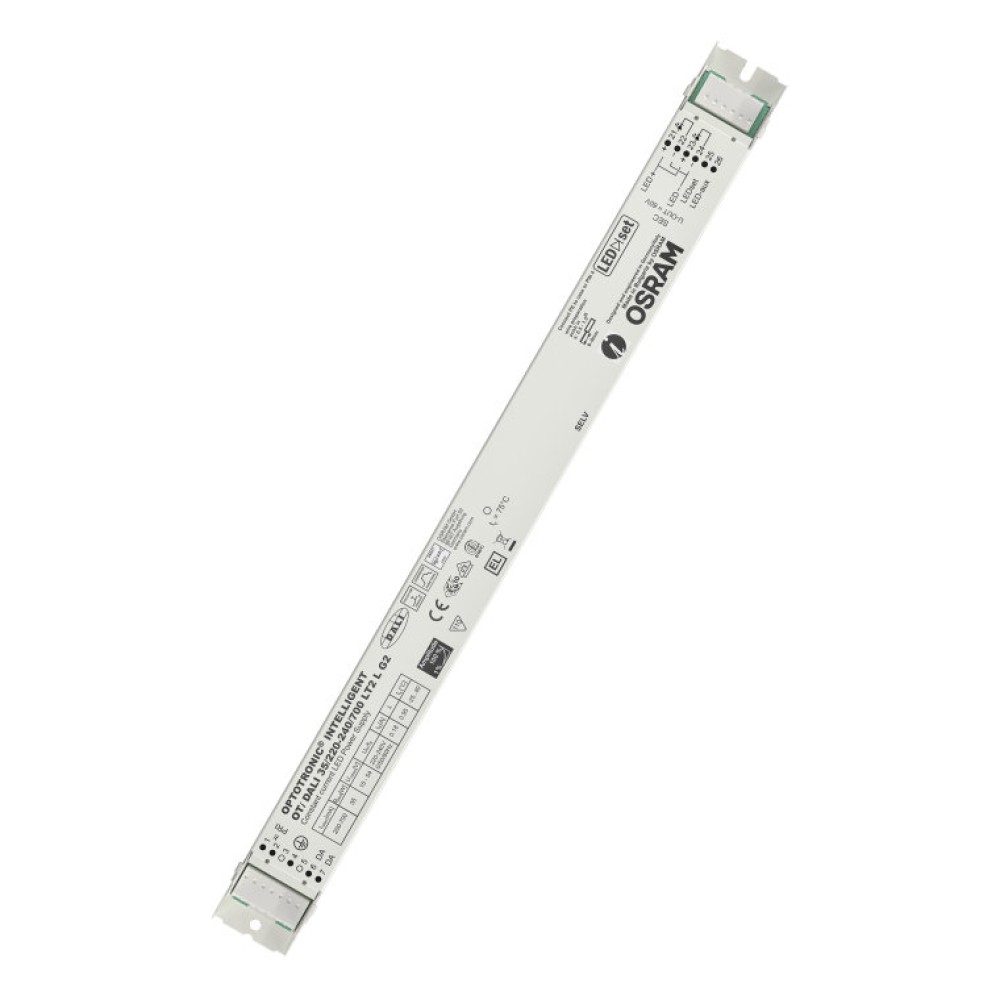

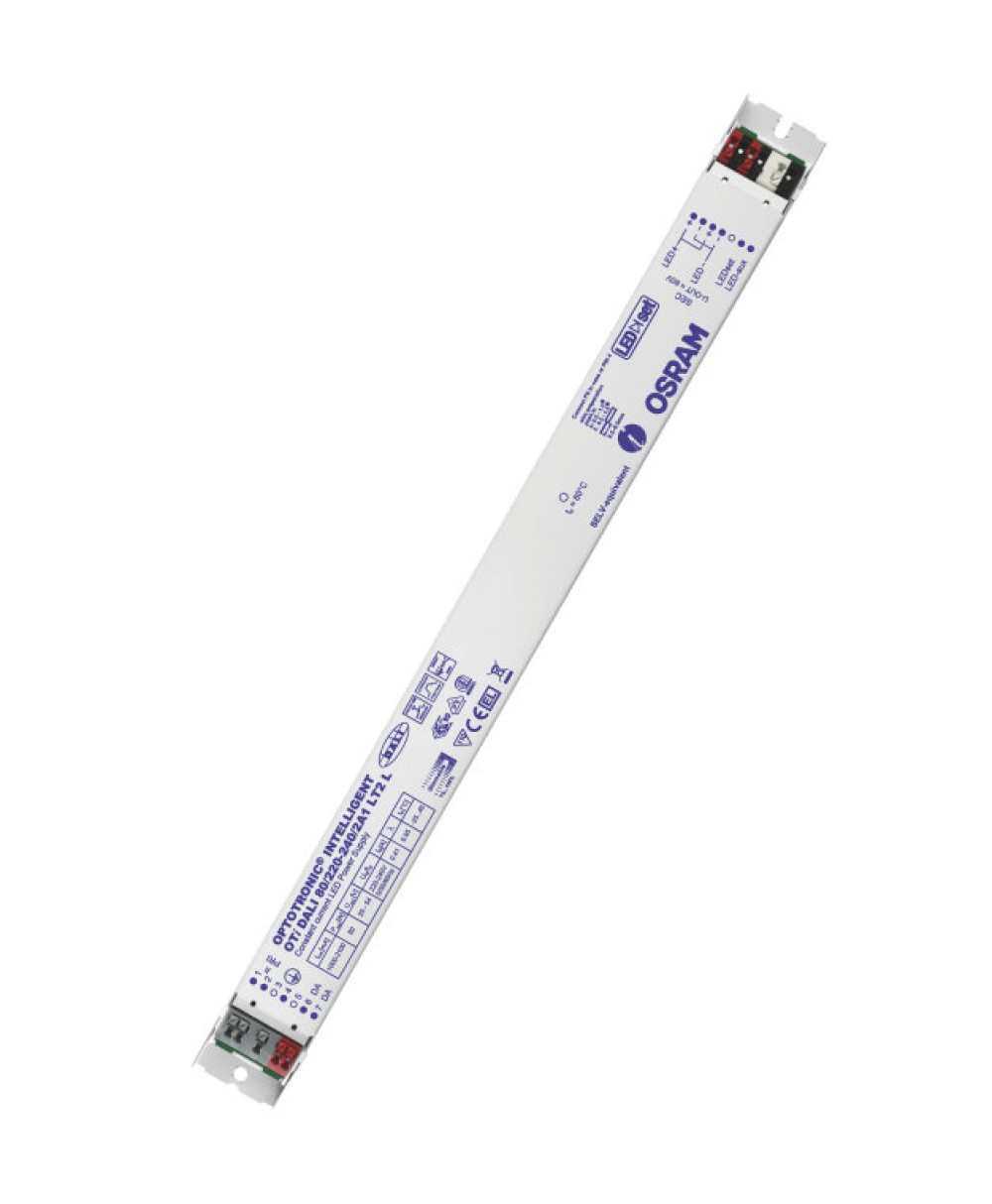

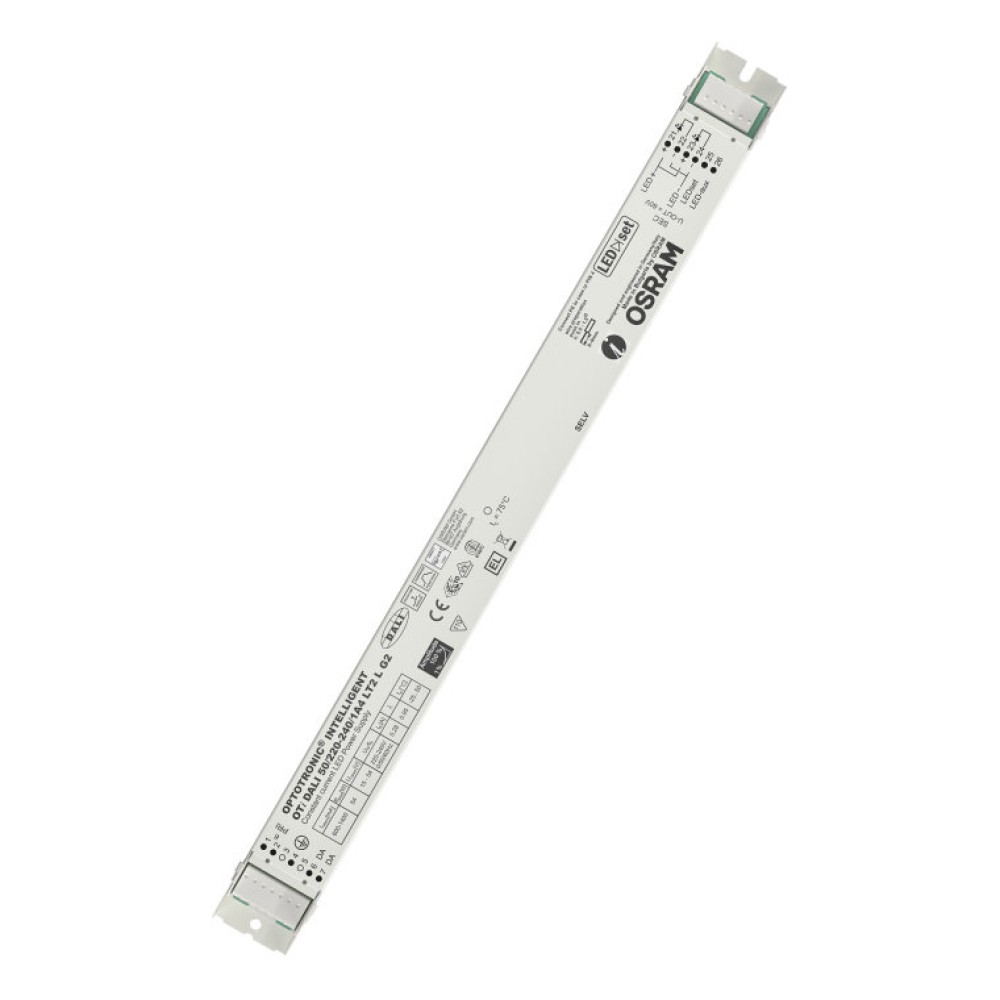

OPTOTRONIC INTELLIGENT – DALI LEDSET LT2 (SELV)

EAN: OPTOTRONIC INTELLIGENT – DALI LEDSET LT2 (SELV)

Sales unit

Product family features

Product family benefits

Fully programmable via software (DALI Interface)
Flexible current setting (LEDset2)
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
High-quality dimming of 1…100 % by amplitude dimming (except 80 W versions)
High quality of light thanks to <1% output ripple current
Very high efficiency
Very low standby power consumption: < 0.15 W (SELV)*, < 0.25 W (non-isolated)
Fulfill safety requirement due to overload, overtemperature, Hot Plug protection

Versatile scope of application due to OSRAM DALI Technology:

Easy to use in corridors and restrooms because of three-level Corridor function
Touch DIM application: easy to control via pushbutton or sensor
Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
Feedback of power consumption and operating hours (Fit for SMART GRID)
Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Luminaire information for easy maintenance

Areas of application

Linear lighting for office, education, industry, storage areas and retail
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for luminaires of protection class I
