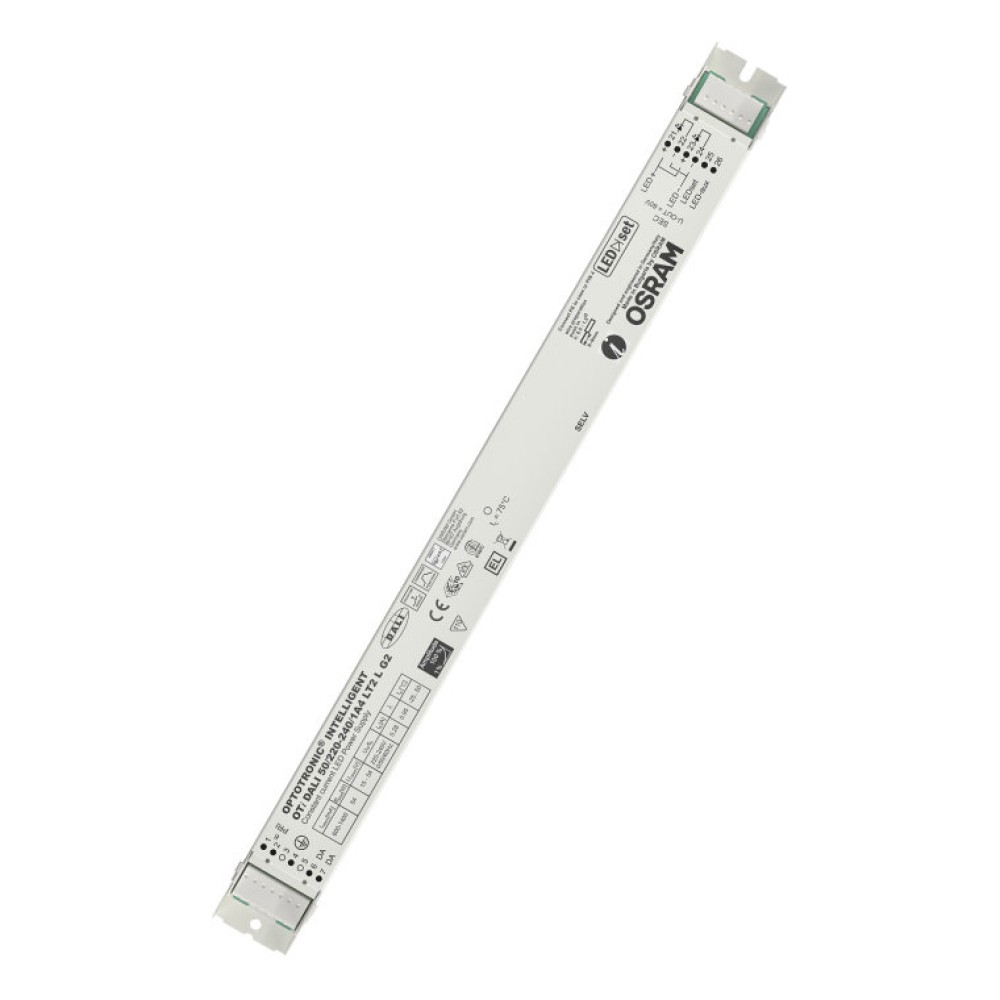

OTI DALI 50/220-240/1A4 LT2 L G2

EAN: 4052899551787
40,92 € (+ 20% VAT)

You need to register / log in to buy
Sales unit
  • 1 pcs
Product family features
  • Line frequency: 0 Hz | 50 Hz | 60 Hz
  • Output power: 50 W
  • Supply voltage: 220…240 V
  • Available with output current range: up to 1,400 mA
  • Constant Lumen Output (CLO)
  • Integrated customizable thermal management (Driver Guard)
  • SELV and non-isolated versions available
  • DALI-2 certified (Part -101,-102 and -207)
Product family benefits
  • Fully programmable via software (DALI Interface)
  • Flexible current setting (LEDset2)
  • Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
  • High-quality dimming of 1…100 % by amplitude dimming (except 80 W versions)
  • High quality of light thanks to <1% output ripple current
  • Very high efficiency
  • Very low standby power consumption: < 0.15 W (SELV)*, < 0.25 W (non-isolated)
  • Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Versatile scope of application due to OSRAM DALI Technology:
  • Easy to use in corridors and restrooms because of three-level Corridor function
  • Touch DIM application: easy to control via pushbutton or sensor
  • Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
  • Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
  • Feedback of power consumption and operating hours (Fit for SMART GRID)
  • Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
  • Luminaire information for easy maintenance
Areas of application
  • Linear lighting for office, education, industry, storage areas and retail
  • Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
  • Suitable for luminaires of protection class I
Family data sheet View downloads

Products

Product Nominal output voltage Nominal output current Data sheet
OTi DALI 80/220-240/1A6 LT2 L 20…54 V 600…1550 mA
OTi DALI 80/220-240/2A1 LT2 L 20…54 V 1000…2100 mA
OTi DALI 35/220-240/700 LT2 L G2 15…54 V 200…700 mA
