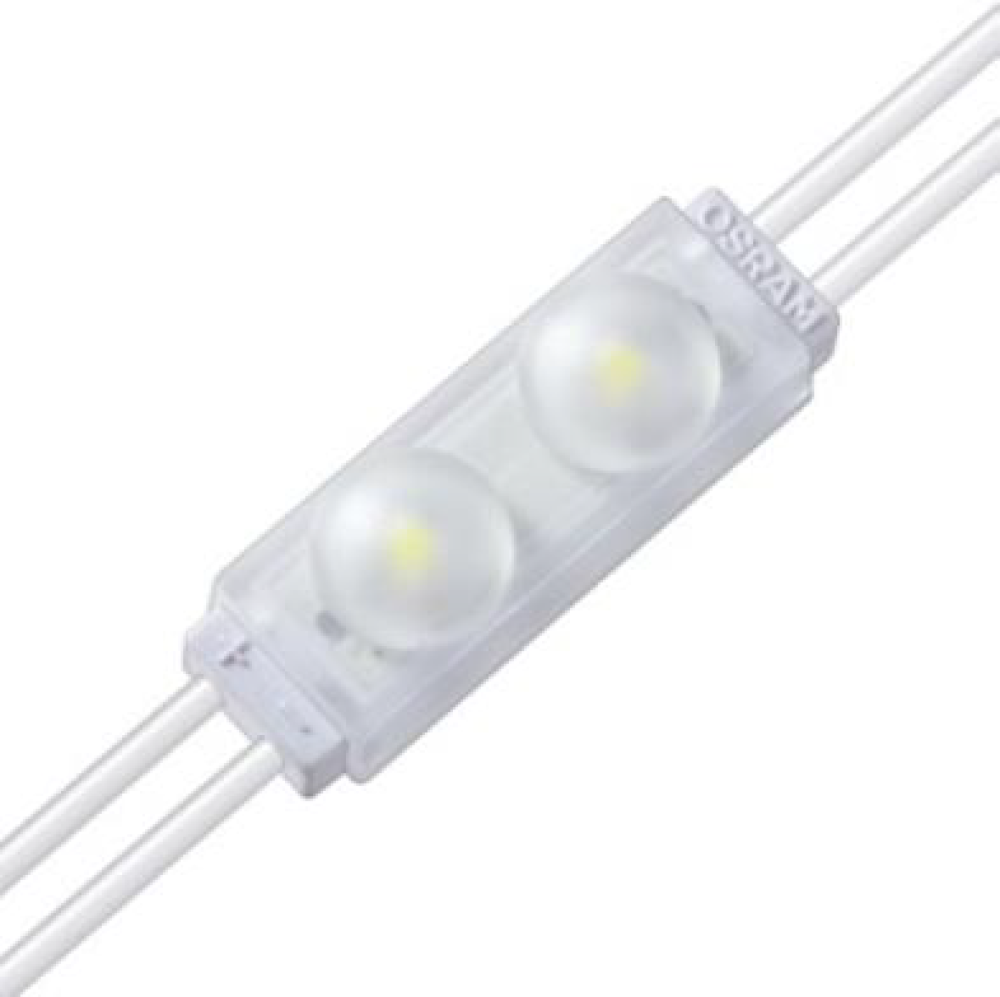

BACKLED M PLUS G4
EAN: BACKLED M PLUS G4
Sales unit
Family data sheet
View downloads
- LED chain comprising 40 LED modules connected by flexible cables
- Uniform illumination in narrow channels thanks to Oval Lens Technology
- PCB and LEDs are protected inside a complete overmolded IP66 housing
- CRI >80 and 3SDCM
- Large CCT choice
- Very long life time and 5 years guarantee
- Backlighting of small and/or flat channel letters
- Backlighting of thin and flat light boxes
- Permanent outdoor use in enclosed light boxes or channel letters
Products
| Product | Color rendering index Ra | Color temperature | Luminous flux | Data sheet |
BackLED M CP, BA-M-CP 865 G4 28,8W 12V
|
≥80 | 6500 K | 82 lm | |
BackLED M CP, BA-M-CP 840 G4 28,8W 12V
|
≥80 | 4000 K | 82 lm | |
BackLED M CP, BA-M-CP 830 G4 28,8W 12V
|
≥80 | 3000 K | 78 lm | |
BackLED M CP, BA-M-CP RED G4 24W 12V
|
≥80 | Red | 21,5 lm | |
BackLED M CP, BA-M-CP BLUE G4 24W 12V
|
≥80 | Blue | 9 lm | |
BackLED M CP, BA-M-CP 880 G4 28,8W 12V
|
≥80 | 8000 K | 79 lm |
