OTI DX 150/220-240/850 D NFC IND L
EAN: 4062172050920
52,09 €
(+ 20% VAT)
You need to register / log in to buy
Sales unit
Family data sheet
View downloads
- 1 pcs
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Output power: 150 W
- Monitoring of luminaire operating parameters
- Supply voltage: 220…240 V
- Available with output current range: up to 850 mA
- Constant Lumen Output (CLO)
- Integrated customizable thermal management (Driver Guard)
- Non-isolated drivers
- Versatile non-isolated DEXAL LED driver up to 150 W due to flexible output characteristic
- Integrated DEXAL Bus power supply for sensors and wireless radios
- Simplified luminaire design for wireless lighting control system and sensors
- Locking and unlocking of luminaire/driver data
- Advanced luminaire/driver data (power, energy, operating hours…) for analytics
- Prepared for DiiA Specification Parts -250, -251, -252 and -253
- Fully programmable via T4T software (NFC, DALI Interface)
- Lifetime: up to 100,000 h (temperature at Tc = 75 °C, max. 10 % failure rate)
- High light quality: 1…100% amplitude dimming and <1% output ripple current
- Wide operating temperature range: -40…+65 °C
- High surge protection: up to 4 kV (L-N) / 4 kV (L/N-PE)
- Integrated inrush current limiter
- Very high efficiency (up to 96%)
- Linear and area lighting
- Industry lighting
- Suitable for luminaires of protection class I
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |

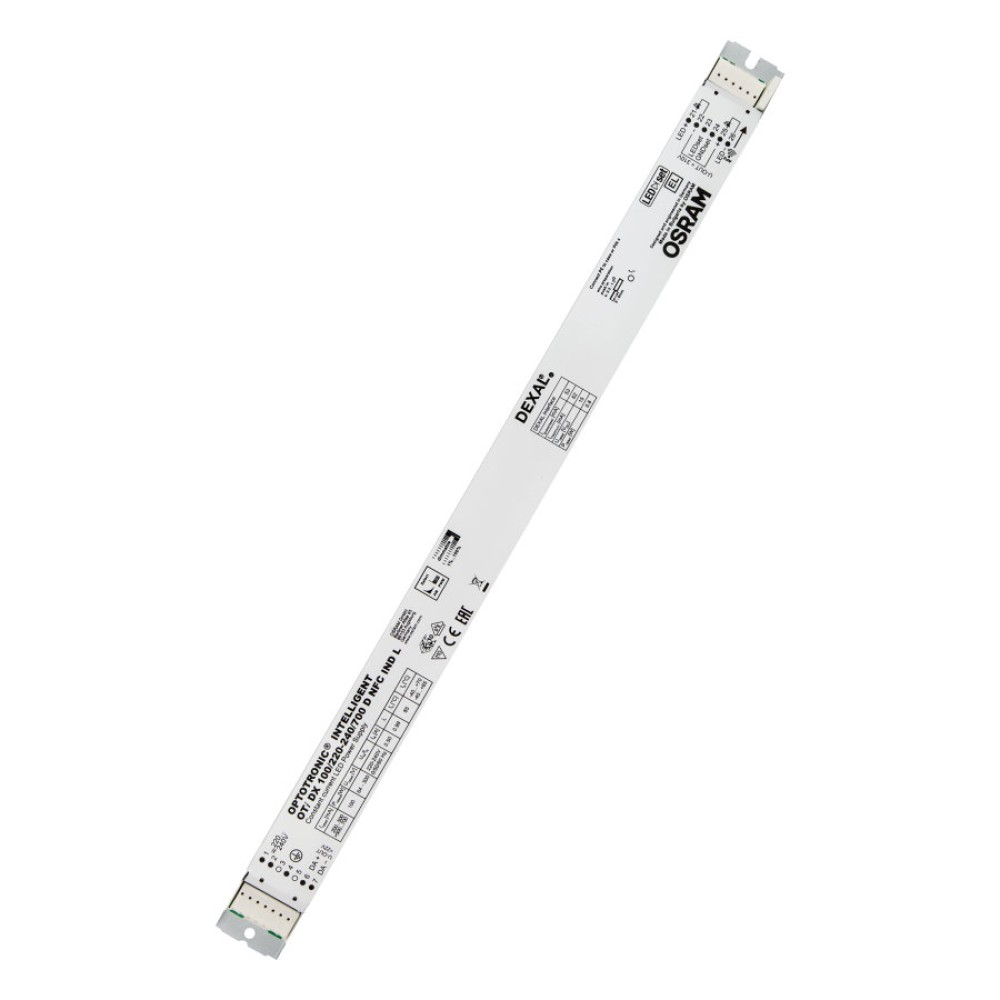

OTI DX 100/220-240/700 D NFC IND L
|
64…300 V | 200…700 mA |
