OTI DALI 75/220-240/500 D NFCFL
EAN: 4062172020787
38,45 €
(+ 20% VAT)
You need to register / log in to buy
Sales unit
Family data sheet
View downloads
- 1 pcs
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Output power: 75 W
- Supply voltage: 220…240 V
- Available with output current range: up to 500 mA
- DALI-2 certified (Part -101,-102 and -207)
- Monitoring of luminaire operating parameters
- Constant Lumen Output (CLO)
- Non-isolated drivers
- Flat housing (16 mm height) for innovative luminaire designs and applications
- Fully programmable via software (DALI Interface, NFC)
- Advanced luminaire/driver data (power, energy, operating hours…) for analytics
- Prepared for DiiA Specification Parts -251, -252 and -253
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- High-quality dimming of 1…100 % (amplitude and/or PWM selectable by software)
- Higher quality of light thanks to < 1% output ripple current
- Very high efficiency
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
- Linear lighting for office, education, industry, storage areas and retail
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for luminaires of protection class I
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |
OTi DALI 35/220-240/400 D NFCFL
|
54…240 V | 75…400 mA | |

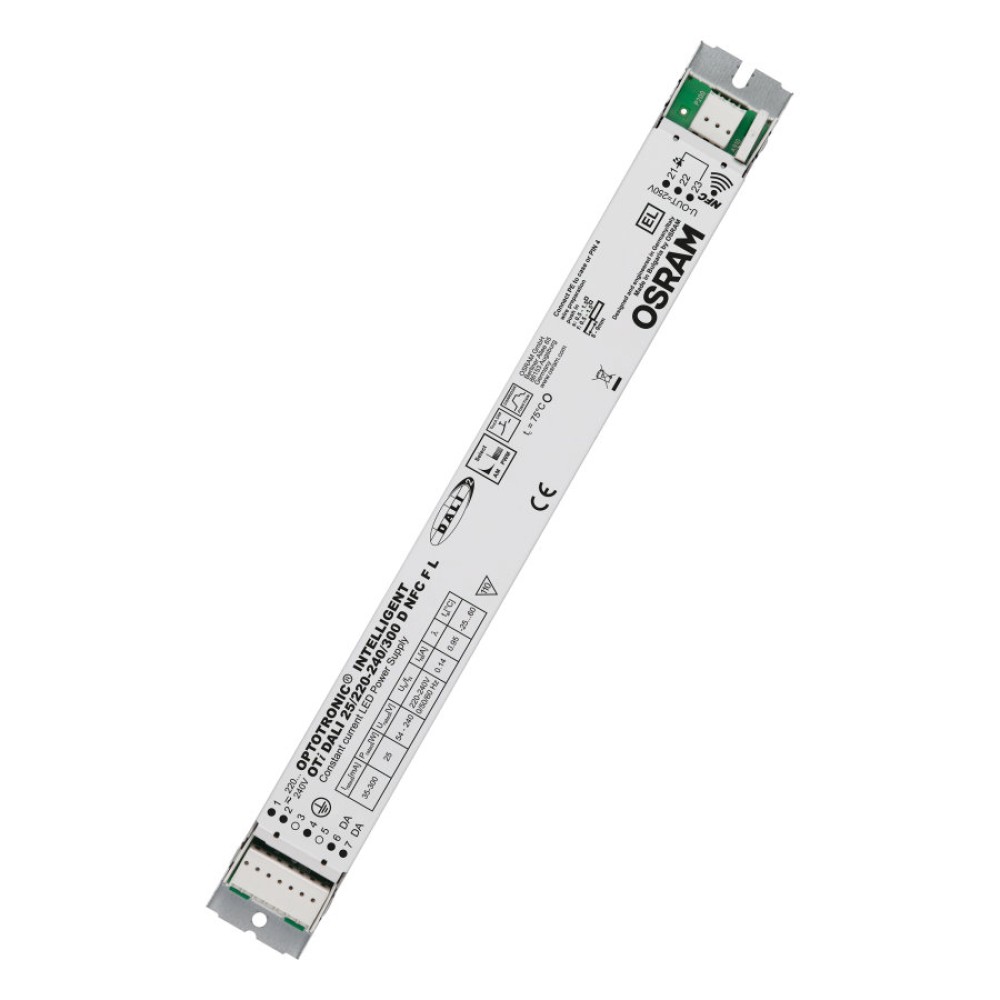

OTi DALI 25/220-240/300 D NFCFL
|
54…240 V | 35…300 mA |
