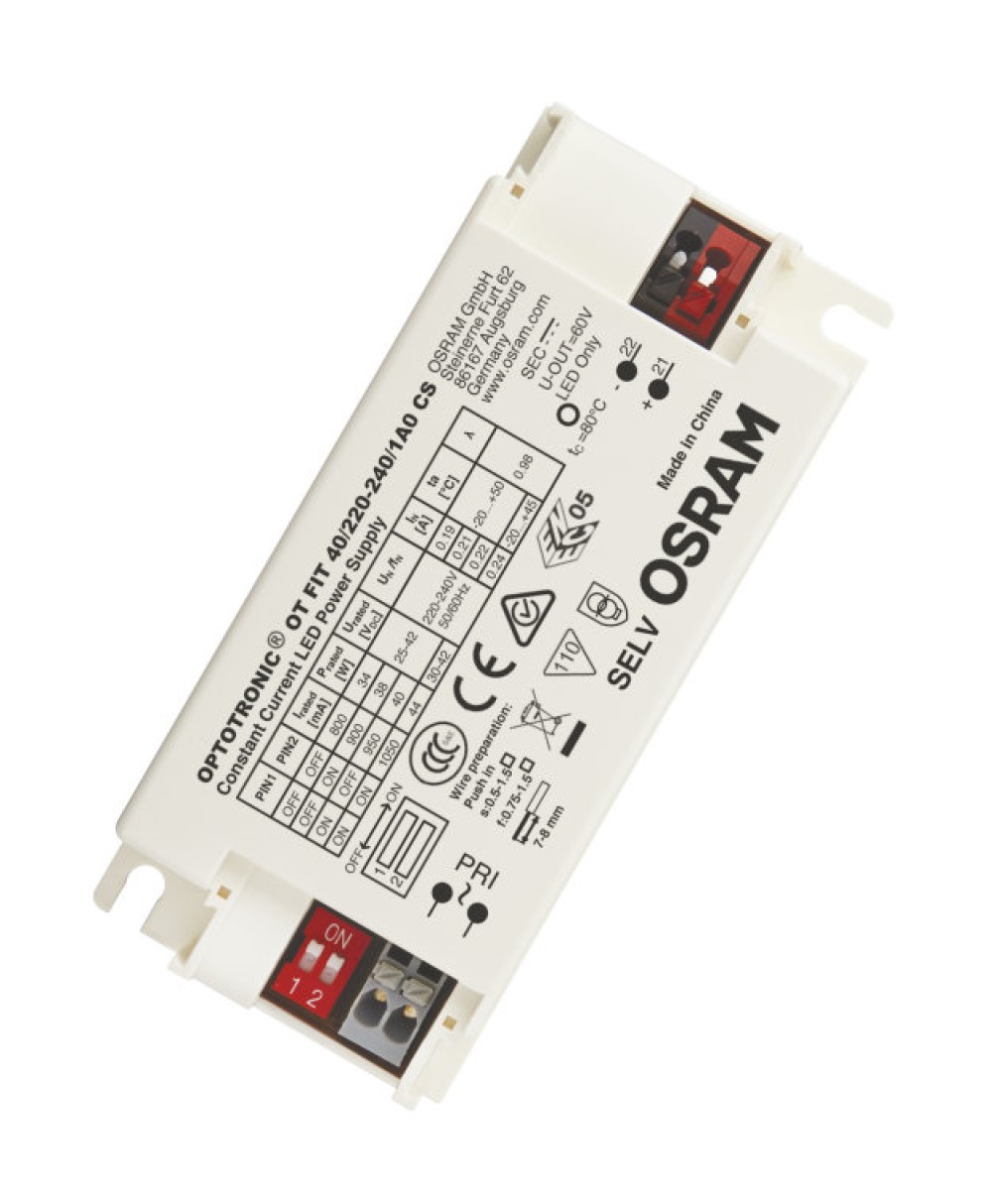

OT FIT 40/220-240/1A0 CS G2 (CABLE CLAMP D-STYLE TO BE ORDERED SEPARATELY)
EAN: 4052899435650
9,65 €
(+ 20% VAT)
You need to register / log in to buy
Sales unit
Family data sheet
View downloads
- 1 pcs
- Supply voltage: 220…240 V
- Line frequency: 50 Hz | 60 Hz
- Line voltage: 198…264 V
- Safety according to EN 61347-1, 61347-2-13, 62384
- RI suppression: to EN 55015
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Lifetime: up to 50,000 h (temperature at Tc = 70 °C, max. 10 % failure rate)
- Cable clamp kit for independent mounting
- High quality of light thanks to low output ripple current
- High flexibility due to four different output currents
- Small housing for flexible luminaire designs
- High efficiency
- Suitable for downlights, spotlights and LED panels
- Suitable for luminaires of protection classes I and II
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |
OT FIT 30/220-240/700 CS G2 (cable clamp D-style to be ordered separately)
|
25…42 V | 500/600/700/650 mA | |
OT FIT 20/220-240/500 CS G2 (cable clamp D-style to be ordered separately)
|
25…42 V | 250/350/450/500 mA |
