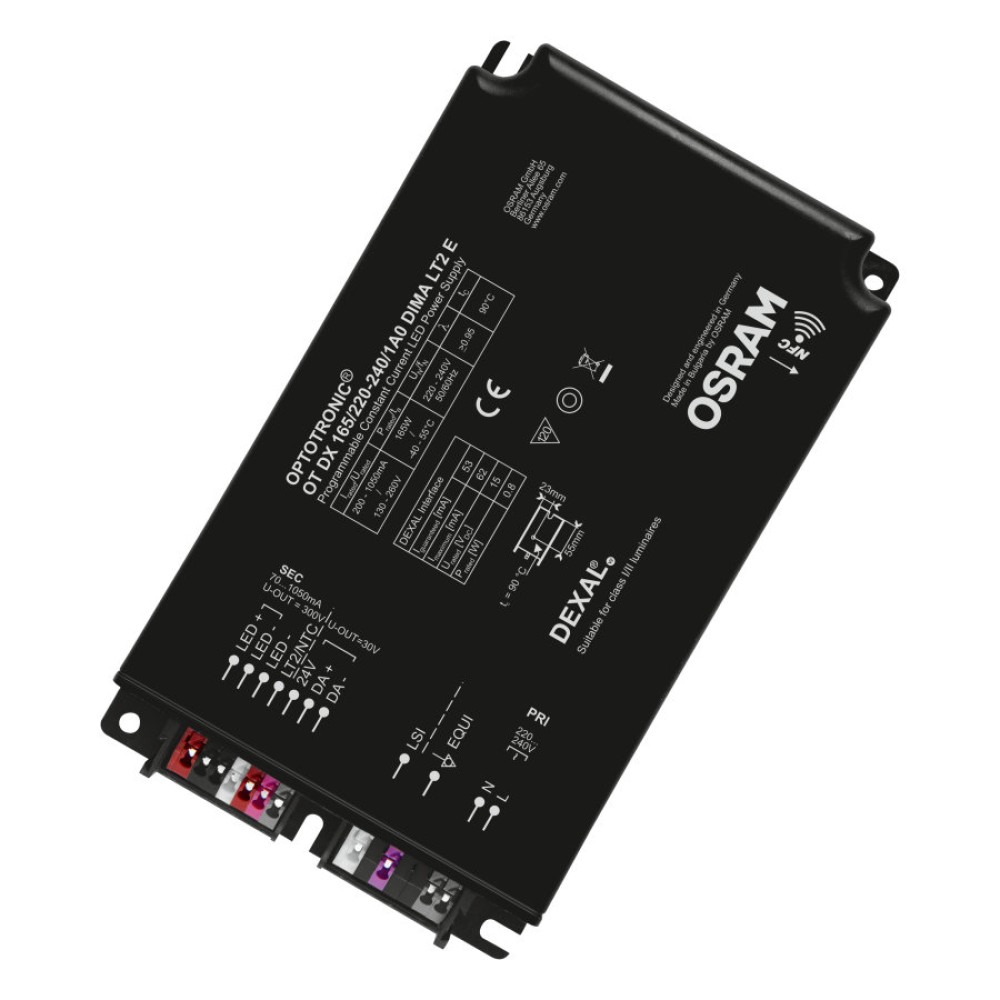

OT DX 165/220-240/1A0 DIMA LT2 E
EAN: 4052899999695
63,04 €
(+ 20% VAT)
You need to register / log in to buy
Sales unit
Family data sheet
View downloads
- 1 pcs
- DEXAL interface based on DALI-2 communication
- Available with different wattage: 40 W, 75 W, 110 W, 165 W
- Current output range: 70…1,050 mA
- AstroDIM for autonomous dimming with five independent levels (astro, time mode)
- Standby power consumption: < 0.5 W I
- ntegrated customizable thermal management (Driver Guard)
- Constant Lumen Output (CLO)
- Zhaga Book18 compliant and D4i certified incl. Parts 25x + AUX
- Electrical interface and data communication fully based on open standards
- Fully programmable via software (DALI Interface, NFC)
- Low luminous efficacy tolerance through low output current tolerance of ± 3 %
- High surge protection: up to 10 kV (1 pulse) in protection class I or II
- Lifetime: up to 100,000 h (depending on Tc temperature, max. 10 % failure rate)
- Mains input undervoltage protection
- Very high efficiency
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
- Street and urban lighting
- Industry
- Suitable for outdoor applications in luminaires with IP > 54
- Suitable for use in outdoor luminaires of protection class I
- and II
Products
| Product | Nominal output current | Nominal output voltage | Data sheet |
OT DX 40/220-240/1A0 DIMA LT2 E
|
200…1050 mA | 15…56 V | |
OT DX 75/220-240/1A0 DIMA LT2 E
|
200…1050 mA | 35…115 V | |
OT DX 110/220-240/1A0 DIMA LT2 E
|
200…1050 mA | 75…220 V |
