LINEARLIGHT FLEX PROTECT UNIFORMITY LF800S -G5-940-10 C 75W 24V

EAN: 4062172170772

519,71 € (+ 20% VAT)

You need to register / log in to buy

Sales unit

Product features

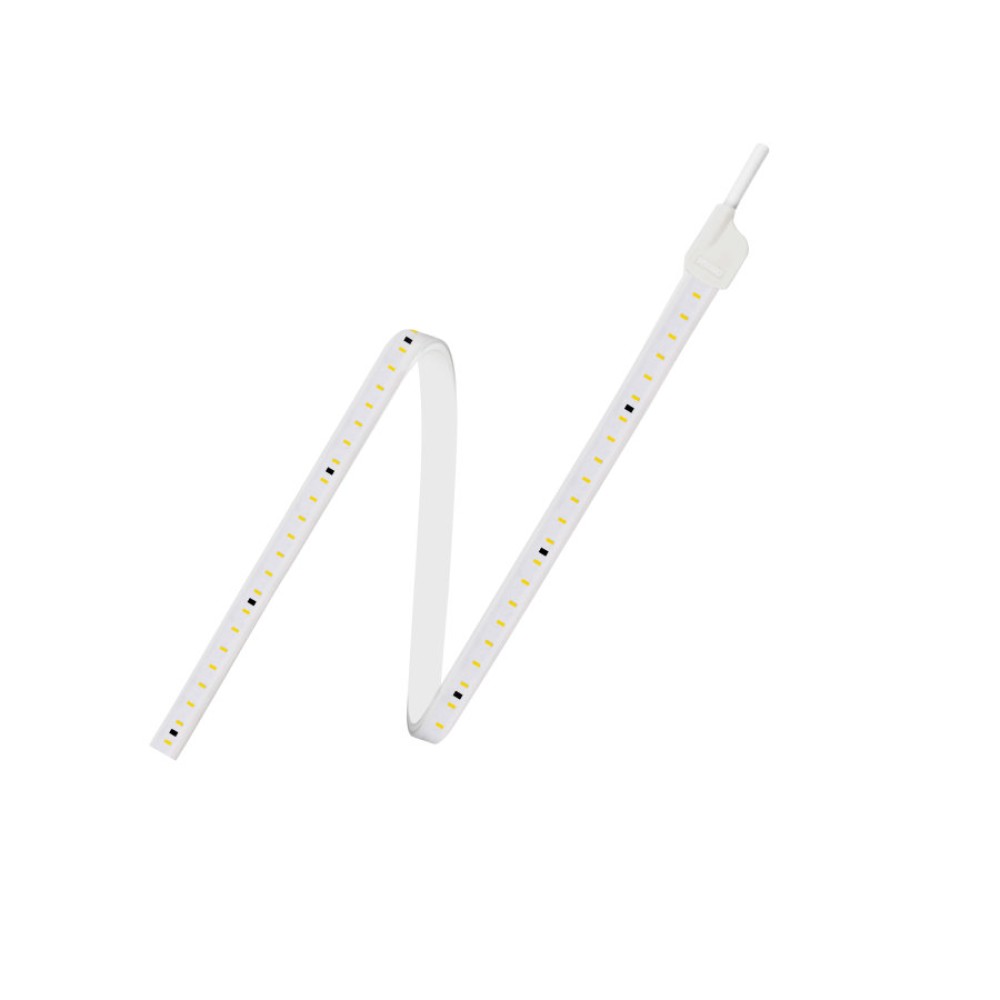

_ 24 V LED strips flexible and cuttable, 50 mm cut unit, with superior optically graded silicone encapsulation
Available variants: 800 lm/m 1200 lm/m 2000 lm/m / CRI Ra: 95+ 90+ and 80+
Up to 60,000 h L90/B10 with SDT technology, tested acc. to IEC 62717 on real LED strips
Stable light flux over length: active constant current regulators (ICs), PWM safe
Fully PWM dimmable from zero up to 2.5 kHz, audible noise free, suitable for quite places
Excellent ESD protection of up to 8 kV in air or 4 kV in contact (acc. to IEC 61547)
IP66 including connector / IP67 excluding connector
Salt-mist atmosphere resistant (acc. to IEC 60068-2-52, highest severity)
UV radiation resistant (acc. to ISO 4892-2) / Mixed flowing gas corrosion resistant (IEC 60068-2-60)
Designed, engineered and manufactured and tested in Italy (ISO9001, ISO 17025, ACCREDIA, VDE)

Product benefits

Color uniformity better than 2 SDCM on the entire LED strip and between strips
Light stability over time typically 1 SDCM, tested acc. to IEC 62717 @ 6,000 h
LED lifetime acc.to IES LM-80 and IES TM-21 standards, and also internal OSRAM LAB tests
Reliable photometric parameters according to IES LM-79, EN13032-4 and CIE S 025
Accurate description of the color rendition of the light source acc. to IES TM-30-15
Excellent robustness: single reel manufacturing technology (no solder joints on strip)
Vibration-resistant for stationary installations acc. to IEC60068-2-6 and IEC60068-2-64
Flicker and stroboscopic effect-free acc. to IEC TR 61547-1 and IEC TR 63158
Tested by accredited Product Qualification Lab. ISO9001, ISO 17025, ACCREDIA, VDE
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back

Products

Product	Color temperature	Color rendering index Ra	Luminous flux per meter	Data sheet
LINEARlight FLEX Protect Uniformity LF800S -G5-927-10 C 92W 24V	2700 K	90	840 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-930-10 C 80W 24V	3000 K	90	840 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-935-10 C 75W 24V	3500 K	90	840 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-947-10 C 75W 24V	4700 K	90	840 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-957-10 C 75W 24V	5700 K	90	840 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-980-10 C 75W 24V	8800 K	90	840 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-927R-10 C 95W 24V	2700 K	95	860 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-930R-10 C 83W 24V	3000 K	95	860 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-935R-10 C 83W 24V	3500 K	95	860 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-940R-10 C 73W 24V	4000 K	95	840 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-857-10 C 61W 24V	5700 K	80	800 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-880-10 C 61W 24V	8800 K	80	800 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-825-10 C 80W 24V	2500 K	80	870 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-827-10 C 72W 24V	2700 K	80	840 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-830-10 C 67W 24V	3000 K	80	840 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-835-10 C 62W 24V	3500 K	80	840 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-840-10 C 61W 24V	4000 K	80	800 lm
LINEARlight FLEX Protect Uniformity LF800S -G5-847-10 C 61W 24V	4700 K	80	800 lm
