Products / LINEARLIGHT FLEX PROTECT UNIFORMITY LF1200S -G5-980-10 C 100W 24V

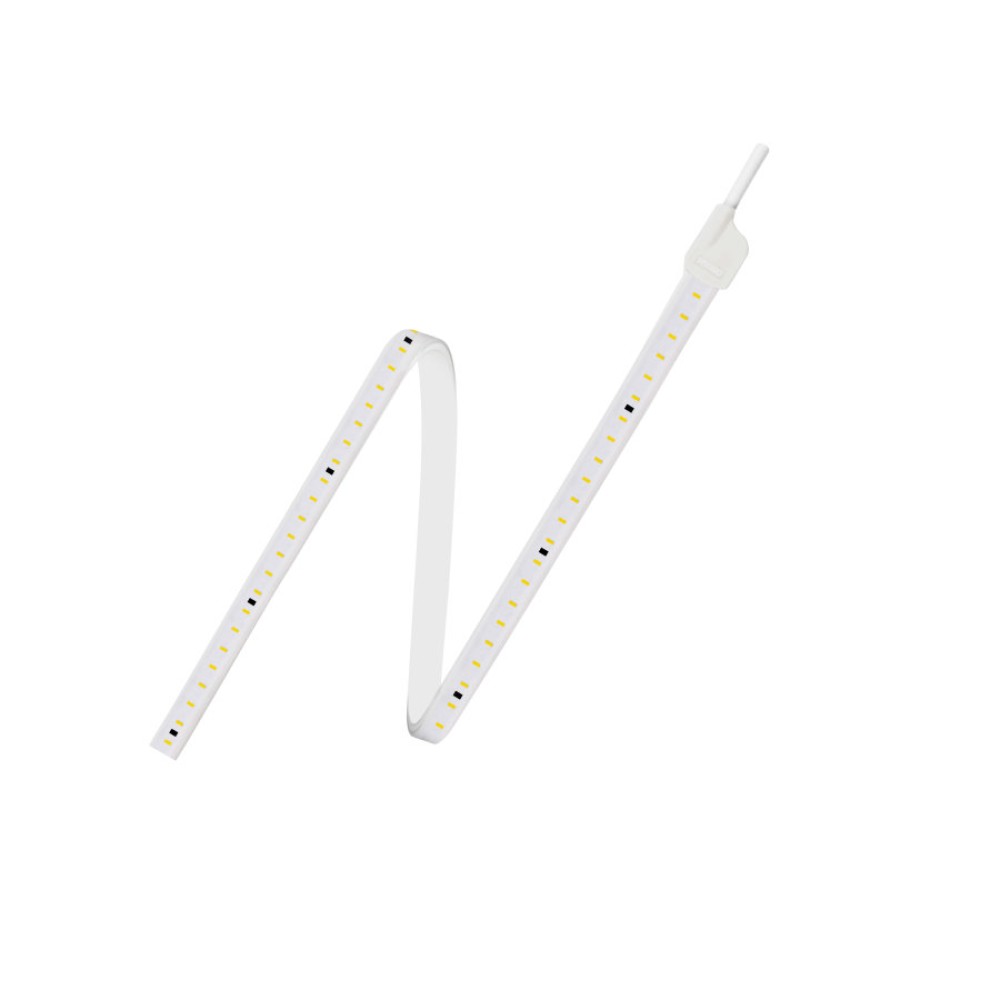

LINEARLIGHT FLEX PROTECT UNIFORMITY LF1200S -G5-980-10 C 100W 24V

EAN: 4062172172325
644,30 € (+ 20% VAT)

You need to register / log in to buy
Sales unit
  • Length 10000mm
Product features
  • _ 24 V LED strips flexible and cuttable, 50 mm cut unit, with superior optically graded silicone encapsulation
  • Available variants: 800 lm/m 1200 lm/m 2000 lm/m / CRI Ra: 95+ 90+ and 80+
  • Up to 60,000 h L90/B10 with SDT technology, tested acc. to IEC 62717 on real LED strips
  • Stable light flux over length: active constant current regulators (ICs), PWM safe
  • Fully PWM dimmable from zero up to 2.5 kHz, audible noise free, suitable for quite places
  • Excellent ESD protection of up to 8 kV in air or 4 kV in contact (acc. to IEC 61547)
  • IP66 including connector / IP67 excluding connector
  • Salt-mist atmosphere resistant (acc. to IEC 60068-2-52, highest severity)
  • UV radiation resistant (acc. to ISO 4892-2) / Mixed flowing gas corrosion resistant (IEC 60068-2-60)
  • Designed, engineered and manufactured and tested in Italy (ISO9001, ISO 17025, ACCREDIA, VDE)
Product benefits
  • Color uniformity better than 2 SDCM on the entire LED strip and between strips
  • Light stability over time typically 1 SDCM, tested acc. to IEC 62717 @ 6,000 h
  • LED lifetime acc.to IES LM-80 and IES TM-21 standards, and also internal OSRAM LAB tests
  • Reliable photometric parameters according to IES LM-79, EN13032-4 and CIE S 025
  • Accurate description of the color rendition of the light source acc. to IES TM-30-15
  • Excellent robustness: single reel manufacturing technology (no solder joints on strip)
  • Vibration-resistant for stationary installations acc. to IEC60068-2-6 and IEC60068-2-64
  • Flicker and stroboscopic effect-free acc. to IEC TR 61547-1 and IEC TR 63158
  • Tested by accredited Product Qualification Lab. ISO9001, ISO 17025, ACCREDIA, VDE
  • Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Family data sheet View downloads

Products

Product Color temperature Color rendering index Ra Luminous flux per meter Data sheet
LINEARlight FLEX Protect Uniformity LF1200S -G5-927-10 C 116W 24V 2700 K 90 1100 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-930-10 C 116W 24V 3000 K 90 1200 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-935-10 C 109W 24V 3500 K 90 1200 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-940-10 C 109W 24V 4000 K 90 1200 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-947-10 C 109W 24V 4700 K 90 1200 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-957-10 C 100W 24V 5700 K 90 1200 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-927R-05 C 70W 24V 2700 K 95 1240 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-930R-05 C 60W 24V 3000 K 95 1200 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-935R-05 C 60W 24V 3500 K 95 1200 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-940R-05 C 53W 24V 4000 K 95 1200 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-825-10 C 116W 24V 2500 K 80 1250 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-827-10 C 106W 24V 2700 K 80 1220 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-830-10 C 98W 24V 3000 K 80 1220 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-835-10 C 96W 24V 3500 K 80 1220 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-840-10 C 94W 24V 4000 K 80 1220 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-847-10 C 94W 24V 4700 K 80 1200 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-857-10 C 94W 24V 5700 K 80 1200 lm
LINEARlight FLEX Protect Uniformity LF1200S -G5-880-10 C 94W 24V 8800 K 80 1200 lm
