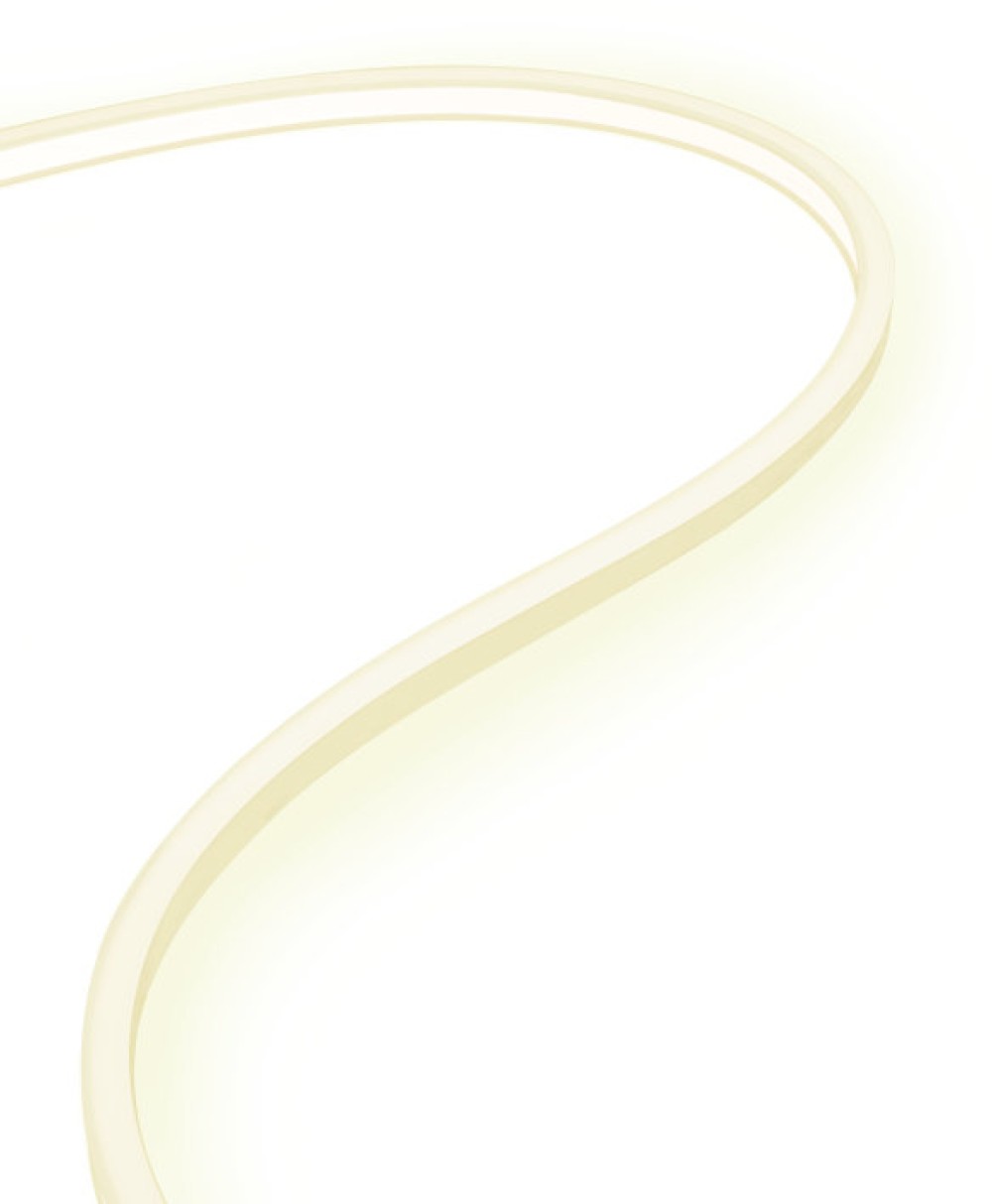

Products / LINEARLIGHT FLEX DIFFUSE TOP WHITE LFD400T-G2-930-10 73W 24V IP66/IP67

LINEARLIGHT FLEX DIFFUSE TOP WHITE LFD400T-G2-930-10 73W 24V IP66/IP67

EAN: 4062172273916

1 292,70 € (+ 20% VAT)

You need to register / log in to buy

Sales unit

Length 10000mm

Product features

Diffused light lines without visible spots
Flexible and cuttable module to support design freedom
Long operational length per single power feed possible (up to 6m)
Ideal for luminaire designs
Extra strong self-adhesive backside for easy mounting
24V technology for easy dimensioning
Recommended in system use with OPTOTRONIC
Increased reliability due to single piece reel-to-reel technology
Dimmable with PWM technology

Product benefits

IP67 protection with high performance silicone
Outdoor use possible: UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)

Areas of application

Individual and customized luminaires
Organic shaped luminaires
Architectural Integration – e.g. coves, walls
Object integration – e.g. handrails
Signage and illuminated advertising

Family data sheet View downloads

Products

Product	Color rendering index Ra	Color temp	Luminous flux per meter	Data sheet
LINEARlight FLEX DIFFUSE Top White LFD400T-G2-827-10 73W 24V IP66/IP67	≥80	2700 K	560 lm
LINEARlight FLEX DIFFUSE Top White, LFD400T-G1-965-06 43.20W 24V IP66/IP67	≥90	7750 K	480 lm
LINEARlight FLEX DIFFUSE Top White, LFD400T-G1-824-06 43.20W 24V IP66/IP67	>80	2435 K	520 lm
LINEARlight FLEX DIFFUSE Top White, LFD400T-G1-830-06 43.20W 24V IP66/IP67	>80	3020 K	540 lm
LINEARlight FLEX DIFFUSE Top White, LFD400T-G1-827-06 43.20W 24V IP66/IP67	>80	2747 K	540 lm
LINEARlight FLEX DIFFUSE Top White, LFD400T-G1-840-06 43.20W 24V IP66/IP67	>80	4420 K	540 lm
LINEARlight FLEX DIFFUSE Top White, LFD400T-G1-865-06 43.20W 24V IP66/IP67	>80	8070 K	500 lm
LINEARlight FLEX DIFFUSE Top White, LFD400T-G1-924-06 43.20W 24V IP66/IP67	≥90	2345 K	420 lm
LINEARlight FLEX DIFFUSE Top White, LFD400T-G1-930-06 43.20W 24V IP66/IP67	≥90	3030 K	480 lm
LINEARlight FLEX DIFFUSE Top White, LFD400T-G1-935-06 43.20W 24V IP66/IP67	≥90	3375 K	480 lm
LINEARlight FLEX DIFFUSE Top White, LFD400T-G1-940-06 43.20W 24V IP66/IP67	≥90	4410 K	480 lm
LINEARlight FLEX DIFFUSE Top White LFD400T-G2-840-10 73W 24V IP66/IP67	≥80	4000 K	600 lm
LINEARlight FLEX DIFFUSE Top White LFD400T-G2-865-10 73W 24V IP66/IP67	≥80	6500 K	550 lm
LINEARlight FLEX DIFFUSE Top White LFD400T-G2-924-10 73W 24V IP66/IP67	≥90	2400 K	460 lm
LINEARlight FLEX DIFFUSE Top White LFD400T-G2-927-10 73W 24V IP66/IP67	≥90	2700 K	480 lm
LINEARlight FLEX DIFFUSE Top White LFD400T-G2-935-10 73W 24V IP66/IP67	≥90	3500 K	510 lm
LINEARlight FLEX DIFFUSE Top White LFD400T-G2-940-10 73W 24V IP66/IP67	≥90	4000 K	510 lm
LINEARlight FLEX DIFFUSE Top White LFD400T-G2-965-10 73W 24V IP66/IP67	≥90	6500 K	470 lm
LINEARlight FLEX DIFFUSE Top White LFD400T-G2-830-10 73W 24V IP66/IP67	≥80	3000 K	600 lm
LINEARlight FLEX DIFFUSE Top White LFD400T-G2-824-10 73W 24V IP66/IP67	≥80	2400 K	520 lm
LINEARlight FLEX DIFFUSE Top White LFD400T-G2-835-10 73W 24V IP66/IP67	≥80	3500 K	600 lm
