BACKLED M HIGH OUTPUT CP, BA-M-HO-CP-865-24-G5 40W 24V

EAN: 4052899627581
108,66 € (+ 20% VAT)

You need to register / log in to buy
Sales unit

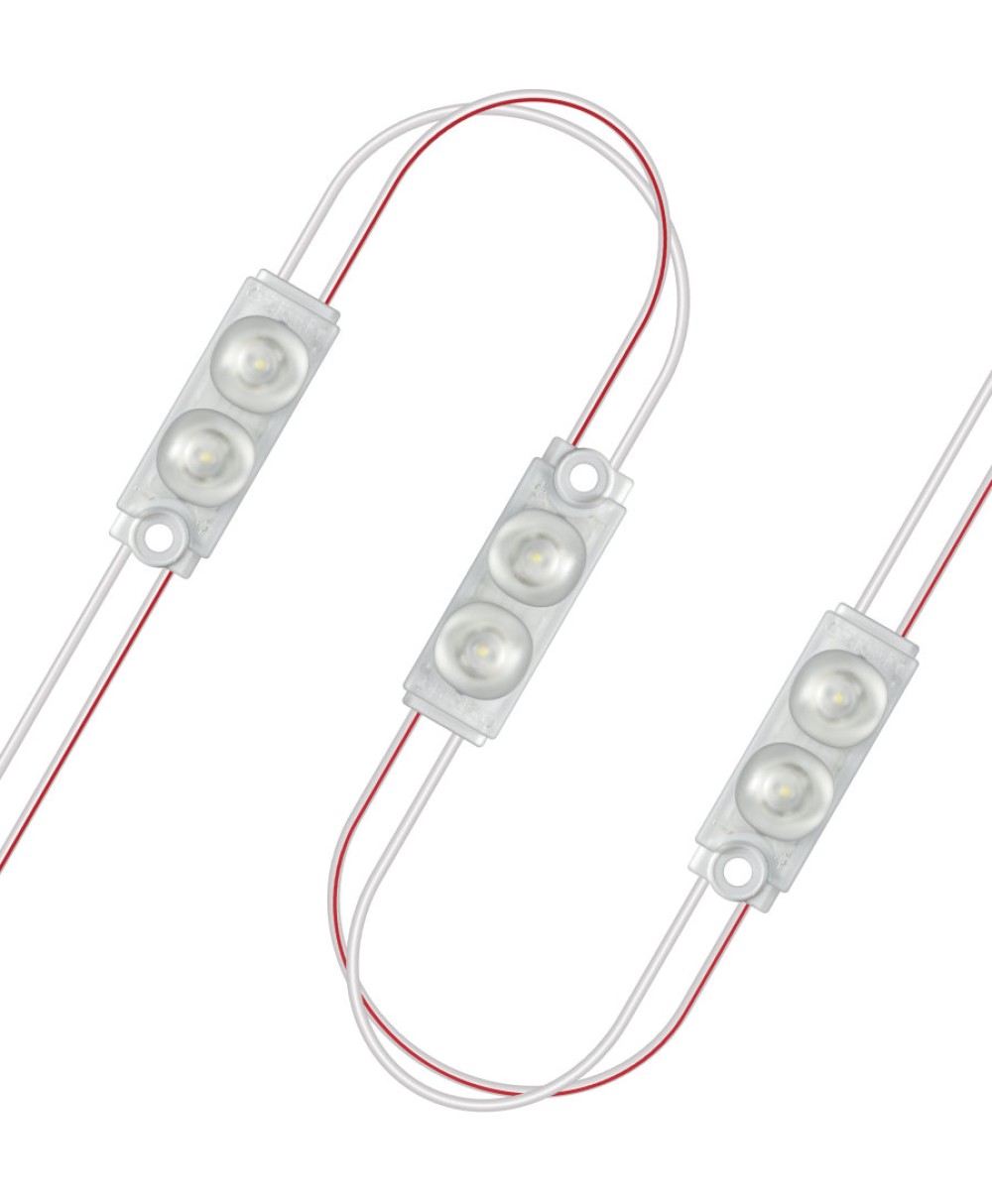

  • LED chain comprising 40 LED modules connected by flexible cables
Benefits
  • Uniform illumination in narrow channels thanks to Oval Lens Technology
  • PCB and LEDs are protected inside a complete overmolded IP66 housing
  • CRI >80 and 3SDCM
  • Uniform light pattern design for 60-200 mm lightbox depth
  • High module efficacy: up to 135 lm/W
  • Wide CCT and color options available
  • Very long life time and 5 years guarantee
Applications
  • Backlighting of small and/or flat channel letters
  • Backlighting of thin and flat light boxes
  • Permanent outdoor use in enclosed light boxes or channel letters
Family data sheet View downloads

Products

Product Color rendering index Ra Color temperature Luminous flux Data sheet
BackLED M High Output CP, BA-M-HO-CP-810-24-G5 40W 24V ≥80 10000 K 124 lm
BackLED M High Output CP, BA-M-HO-CP-880-24-G5 40W 24V ≥80 8000 K 129 lm
BackLED M High Output CP, BA-M-HO-CP-871-24-G5 40W 24V ≥80 7100 K 133 lm
BackLED M High Output CP, BA-M-HO-CP-840-24-G5 40W 24V ≥80 4000 K 129 lm
BackLED M High Output CP, BA-M-HO-CP-830-24-G5 40W 24V ≥80 3000 K 124 lm

Downloads

Data sheets, brochures and technical information
