BACKLED M CP, BA-M-CP-840-24-HF-G5 25W 24V
EAN: 4052899627925
127,10 €
(+ 20% VAT)
You need to register / log in to buy
Sales unit
Family data sheet
View downloads

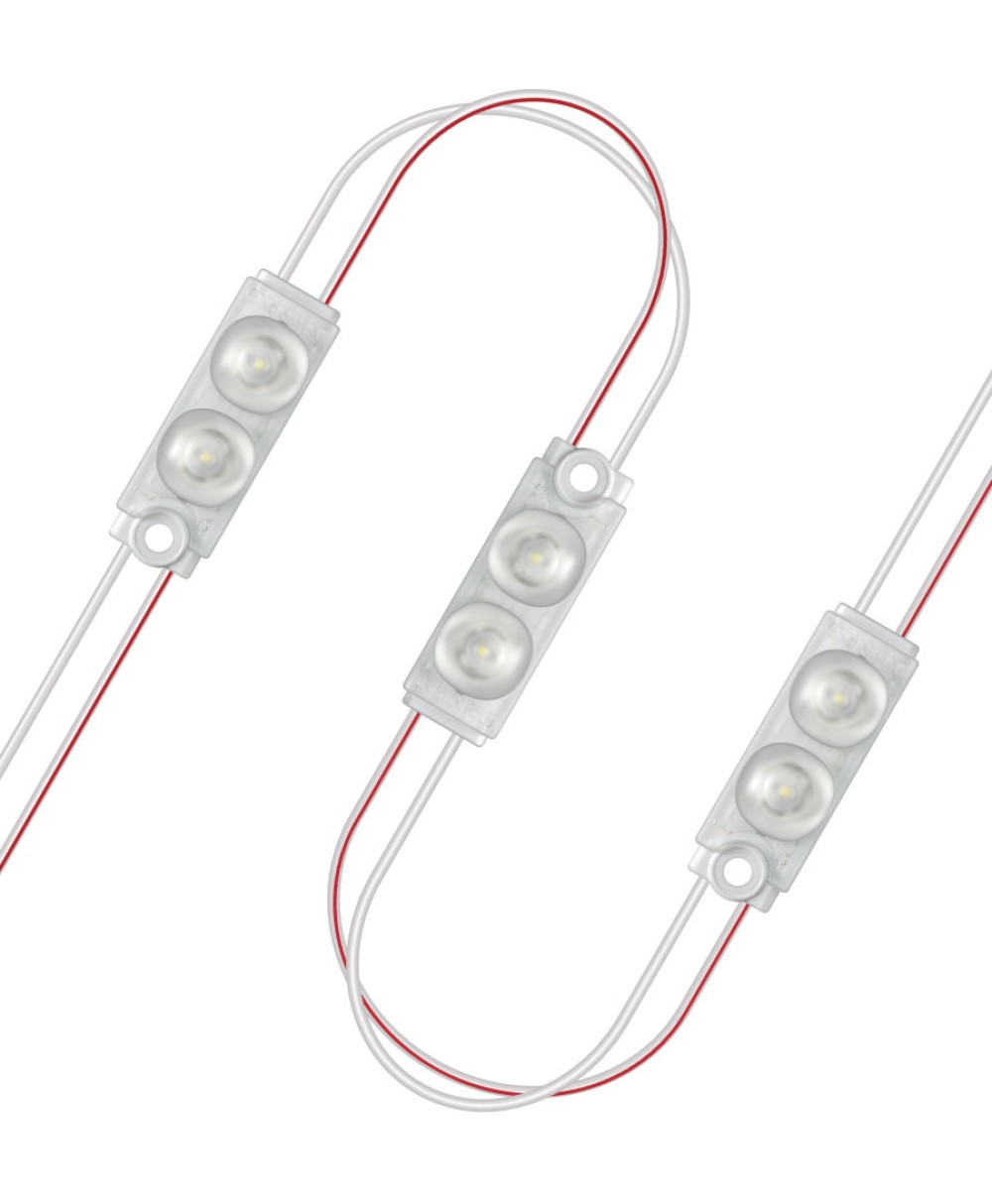

- LED chain comprising 40 LED modules connected by flexible cables
- Uniform illumination in narrow channels thanks to Oval Lens Technology
- Each LED module contains 2 LEDs
- LED module pitch variable between 60 and ~ 200 mm
- PCB and LEDs are protected inside a complete overmolded IP66 housing
- CRI >80 and 3SDCM
- High module efficacy: up to 135 lm/W
- Uniform light pattern design for 60-200 mm lightbox depth
- Halogen free without gas hazard
- Flammability resistance material selection fit UL-94 V0
- Wide CCT and color options available
- Very long life time and 5 years guarantee
- Backlighting of small and/or flat channel letters
- Backlighting of thin and flat light boxes
- Permanent outdoor use in enclosed light boxes or channel letters
Products
| Product | Color rendering index Ra | Color temperature | Luminous flux | Data sheet |
BackLED M CP, BA-M-CP-810-24-HF-G5 25W 24V
|
≥80 | 10000 K | 77 lm | |
BackLED M CP, BA-M-CP-830-24-HF-G5 25W 24V
|
≥80 | 3000 K | 80 lm | |
BackLED M CP, BA-M-CP-865-24-HF-G5 25W 24V
|
≥80 | 6500 K | 83 lm | |
BackLED M CP, BA-M-CP-871-24-HF-G5 25W 24V
|
≥80 | 7100 K | 77 lm | |
BackLED M CP, BA-M-CP-880-24-HF-G5 25W 24V
|
≥80 | 8000 K | 77 lm |
Showing 1 to 5 of 5 entries
