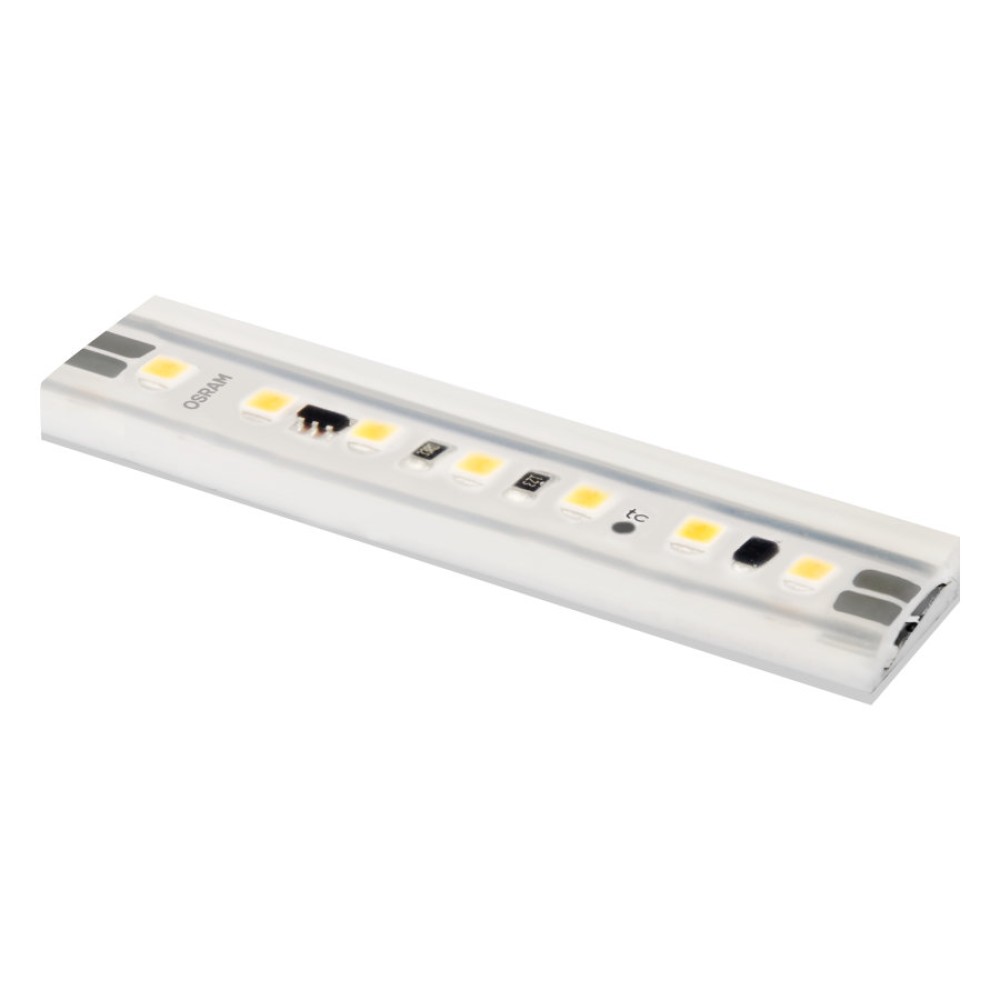

TEC FLEX PROTECT SHORTPITCH 2000S

EAN: TEC FLEX PROTECT SHORTPITCH 2000S

Sales unit

Product family features ja benefits

24V Constant Voltage Dimmable LED strip Luminous flux range: 600lm/m, 1000lm/m, 1500lm/m, 2000lm/m
Small distance between LEDs enables high homogeneity
Color temperature: 2700K, 3000K, 4000K, 5000K, 6500K
Single color bin in 3SDCM
Improved self-adhesive backside for easy and reliable mounting
Design freedom and accurate match of installation size: cutting points every 50mm
Cables soldered one side for quick and safe installation
Current control technology for constant flux level along the module
Long lifetime: 50.000 hours
5 Years OSRAM Guarantee
High Efficiency LED strips enabling energy saving
System solution in combination with OSRAM 24V Constant Voltage LED drivers, optional connectors, mounting accessories

Products

Product	Color rendering index Ra	Color temperature	Luminous flux per meter	Data sheet
TEC Flex Protect Shortpitch 2000S, TFP2000S-G1-940-04 70W 24V IP66	90	4000 K	1820 lm
TEC Flex Protect Shortpitch 2000S, TFP2000S-G1-935-04 70W 24V IP66	90	3500 K	1805 lm
TEC Flex Protect Shortpitch 2000S, TFP2000S-G1-930-04 70W 24V IP66	90	3000 K	1800 lm
TEC Flex Protect Shortpitch 2000S, TFP2000S-G1-927-04 70W 24V IP66	90	2700 K	1670 lm
TEC Flex Protect Shortpitch 2000S, TFP2000S-G1-865-05 78W 24V IP66	80	6000 K	1940 lm
TEC Flex Protect Shortpitch 2000S , TFP2000S-G1-850-05 78W 24V IP66	80	5000 K	1960 lm
TEC Flex Protect Shortpitch 2000S , TFP2000S-G1-840-05 78W 24V IP66	80	4000 K	1920 lm
TEC Flex Protect Shortpitch 2000S , TFP2000S-G1-830-05 78W 24V IP66	80	3000 K	1910 lm
TEC Flex Protect Shortpitch 2000S, TFP2000S-G1-827-05 78W 24V IP66	80	2700 K	1690 lm
