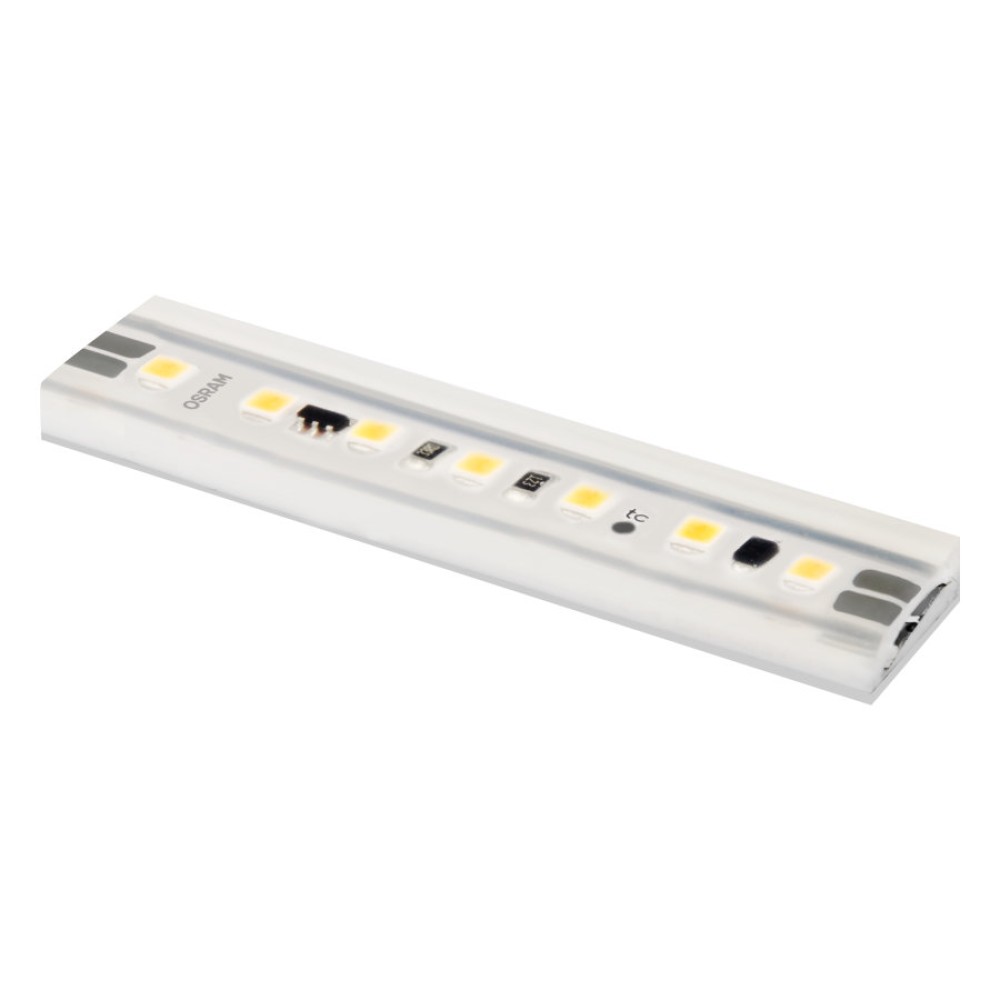

TEC FLEX PROTECT SHORTPITCH 1500S

EAN: TEC FLEX PROTECT SHORTPITCH 1500S

Sales unit
  • Length 5000mm
Product family features ja benefits
  • 24V Constant Voltage Dimmable LED strip Luminous flux range: 600lm/m, 1000lm/m, 1500lm/m, 2000lm/m
  • Small distance between LEDs enables high homogeneity
  • Color temperature: 2700K, 3000K, 4000K, 5000K, 6500K
  • Single color bin in 3SDCM
  • Improved self-adhesive backside for easy and reliable mounting
  • Design freedom and accurate match of installation size: cutting points every 50mm
  • Cables soldered one side for quick and safe installation
  • Current control technology for constant flux level along the module
  • Long lifetime: 50.000 hours
  • 5 Years OSRAM Guarantee
  • High Efficiency LED strips enabling energy saving
  • System solution in combination with OSRAM 24V Constant Voltage LED drivers, optional connectors, mounting accessories
Family data sheet View downloads

Products

Product Color rendering index Ra Color temperature Luminous flux per meter Data sheet
TEC Flex Protect Shortpitch 1500S, TFP1500S-G1-935-05 72W 24V IP66 90 3500 K 1500 lm
TEC Flex Protect Shortpitch 1500S, TFP1500S-G1-930-05 72W 24V IP66 90 3000 K 1485 lm
TEC Flex Protect Shortpitch 1500S, TFP1500S-G1-927-05 72W 24V IP66 90 2700 K 1405 lm
TEC Flex Protect Shortpitch 1500S, TFP1500S-G1-940-05 72W 24V IP66 90 4000 K 1510 lm
TEC Flex Protect Shortpitch 1500S, TFP1500S-G1-865-05 66W 24V IP66 80 6000 K 1660 lm
TEC Flex Protect Shortpitch 1500S , TFP1500S-G1-850-05 66W 24V IP66 80 5000 K 1670 lm
TEC Flex Protect Shortpitch 1500S , TFP1500S-G1-840-05 66W 24V IP66 80 4000 K 1630 lm
TEC Flex Protect Shortpitch 1500S , TFP1500S-G1-830-05 66W 24V IP66 80 3000 K 1620 lm
TEC Flex Protect Shortpitch 1500S, TFP1500S-G1-827-05 66W 24V IP66 80 2700 K 1530 lm

Downloads

Data sheets, brochures and technical information
