OTI DALI 24V DT6/8 G3
EAN: OTI DALI 24V DT6/8 G3
Sales unit
Family data sheet
View downloads
- 1 pcs
- Dimmable via Touch DIM (if supported)
- LED driver whose output power can be shared arbitrarily among the 2 or 4 channels
- Dimming range: 0.1…100 %
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Intelligent power matching thanks to Smart power supply
- Slim form factor for mounting on the cove or in linear luminaires
- Reduced flicker thanks to high PWM frequency
- Suitable for installation in emergency lighting systems according to EN 60598-2-22
- Available as single-channel or multi-channel with DT6 and DT8 in one device
- DALI message detection "LED Module failure"
- IP rating: IP20
- Cove lighting, wall washer, corridor, handrail, luminous ceilings
- Suitable for use in luminaires of protection class I and II
Products
| Product | Nominal wattage | Data sheet |

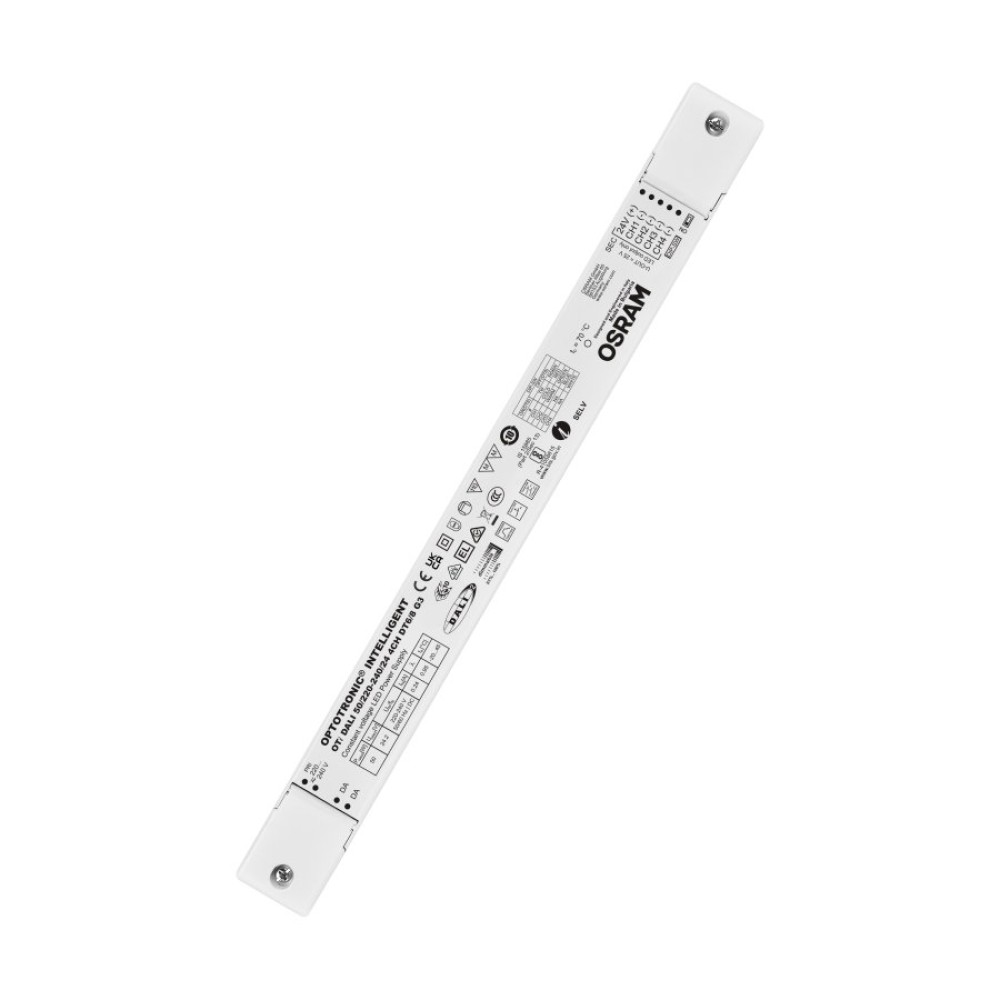

OTi DALI 50/220-240/ 24 4CH DT6/8 G3
|
50 W | |

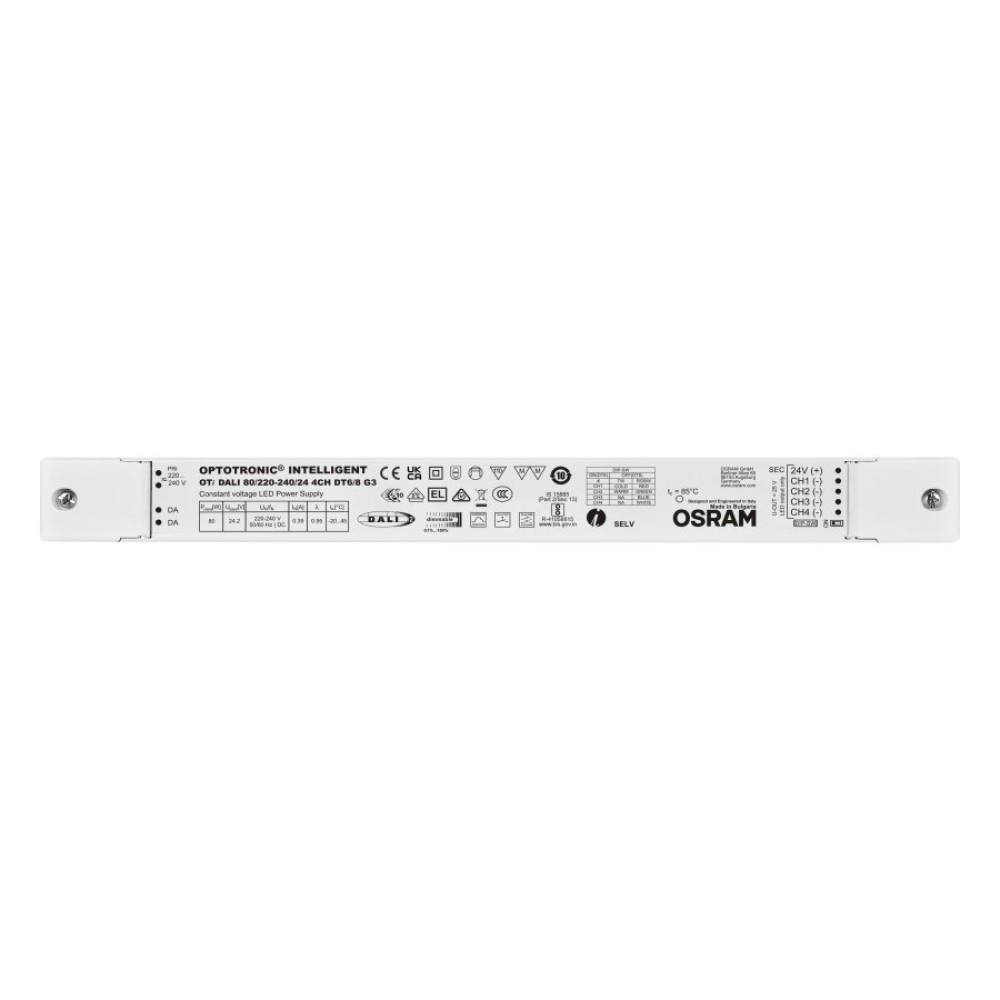

OTi DALI 80/220-240/ 24 4CH DT6/8 G3
|
80 W | |
OTi DALI 160/220-240/ 24 2CH DT6/8 G3
|
160 W |
