OT 2DIM IP64 OUTDOOR
EAN: OT 2DIM IP64 OUTDOOR
Sales unit
- 1 pcs
- Available with different wattage: 50 W, 100 W, 110 W
- Input voltage: 120…277 V
- Available with output current range: up to 1,400 mA
- Flexible current setting with one additional wire (LEDset2)
- AstroDIM for autonomous dimming with five independent levels (astro mode)
- Isolated 0…10 V interface for unidirectional telemanagement systems
- Constant Lumen Output (CLO)
- Overtemperature protection with external NTC or LEDset2 interface
- 2DIM functionality in one device (AstroDIM, 0…10 V)
- High surge protection: up to 6 kV (in protection class I or II)
- Fast programming without mains voltage
- High efficiency
- Great flexibility due to wide operating temperature range of -40…55 °C
- Protection through double isolation between mains input and LED output
- IP rating: IP64
- Street and urban lighting
- Industry
- Suitable for use in outdoor luminaires of protection class I and II
- OT Programmer hardware for configuration of 2DIM ECGs necessary
- Programmable via Tuner4TRONIC software
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |

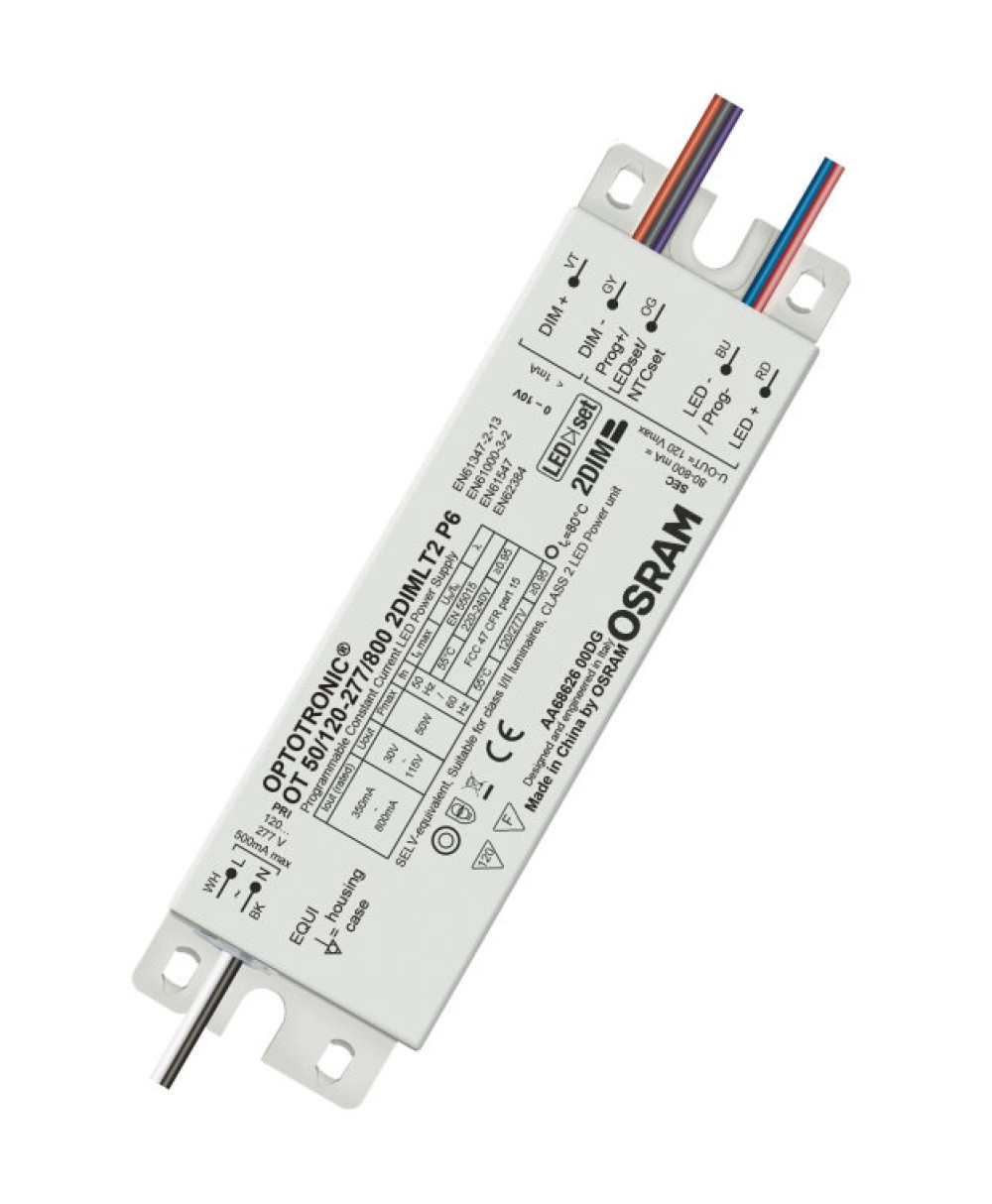

OT 50/120-277/800 2DIMLT2 P
|
30…115 V | 350…800 mA | |

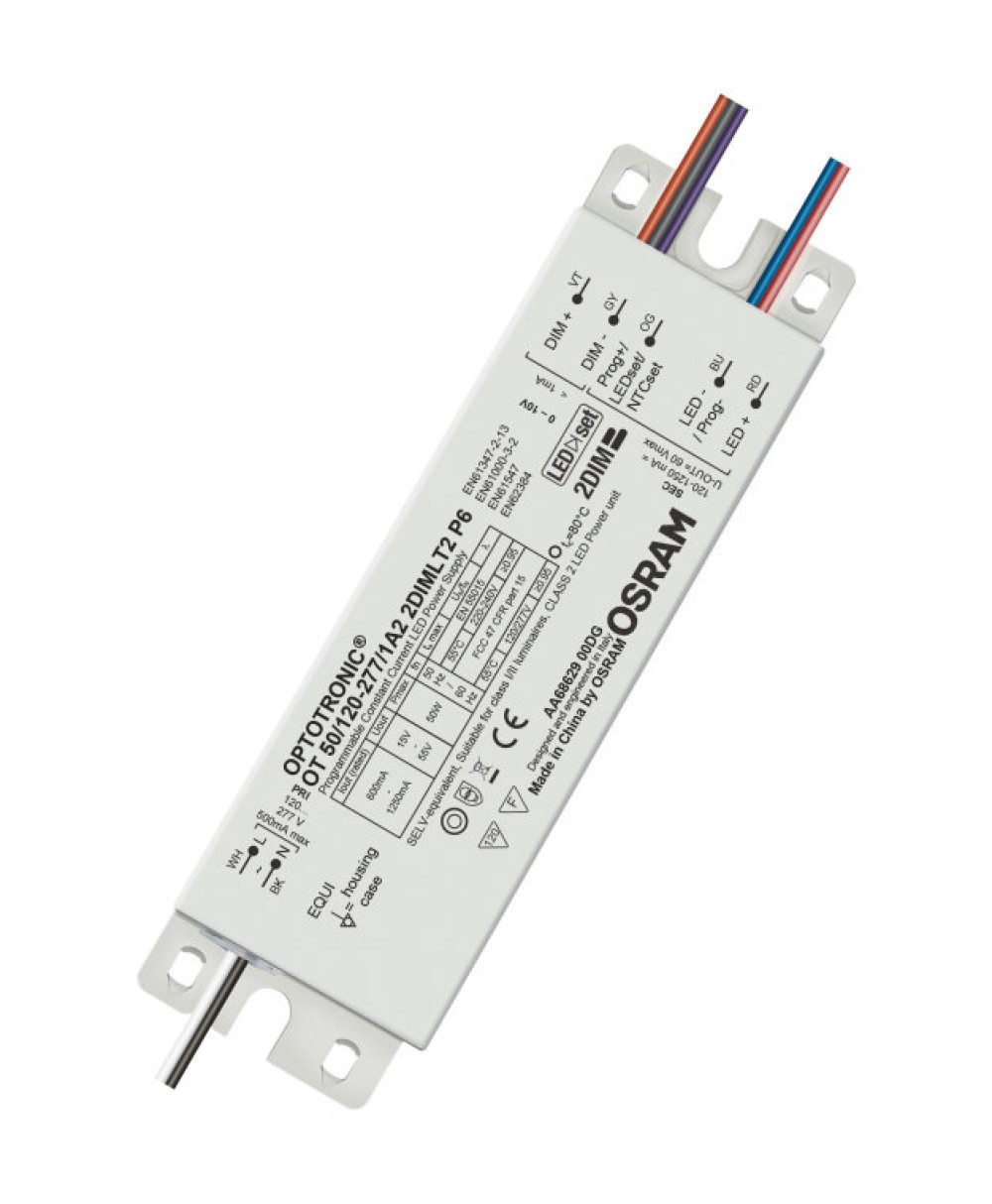

OT 50/120-277/1A2 2DIMLT2 P
|
20…55 V | 600…1250 mA | |

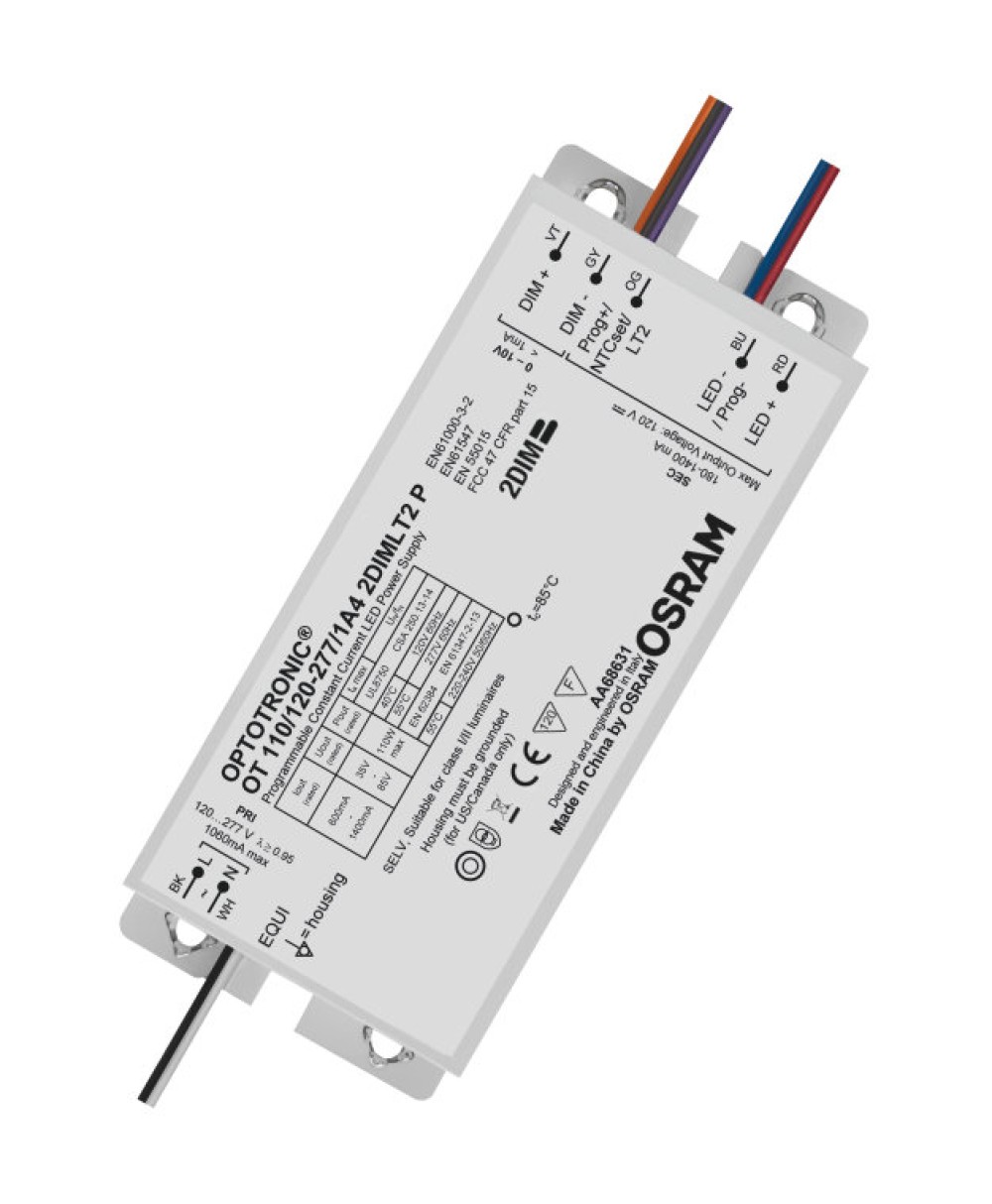

OT 110/120-277/1A4 2DIMLT2 P
|
35…85 V | 600…1400 mA |
