OPTOTRONIC PHASE-CUT OT FIT
EAN: OPTOTRONIC PHASE-CUT OT FIT
Sales unit
Family data sheet
View downloads
- 1 pcs
- Cable clamp housing for independent mounting
- Dimmable on the leading edge and trailing edge
- Housing for independent installation
- Compatible with the most common leading-edge and trailing-edge phase dimmers
- Flexible current setting (DIPswitch – 4 currents)
- Flicker-free dimming
- Higher quality of light thanks to < 5% output ripple current
- Decorative illumination
- Downlights, flat luminaires
- Hospitality
- Living areas
- Museums, residential buildings
- Offices
- Shop lighting
- Suitable for indoor SELV installations
- Suitable for luminaires of protection class I and II
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |

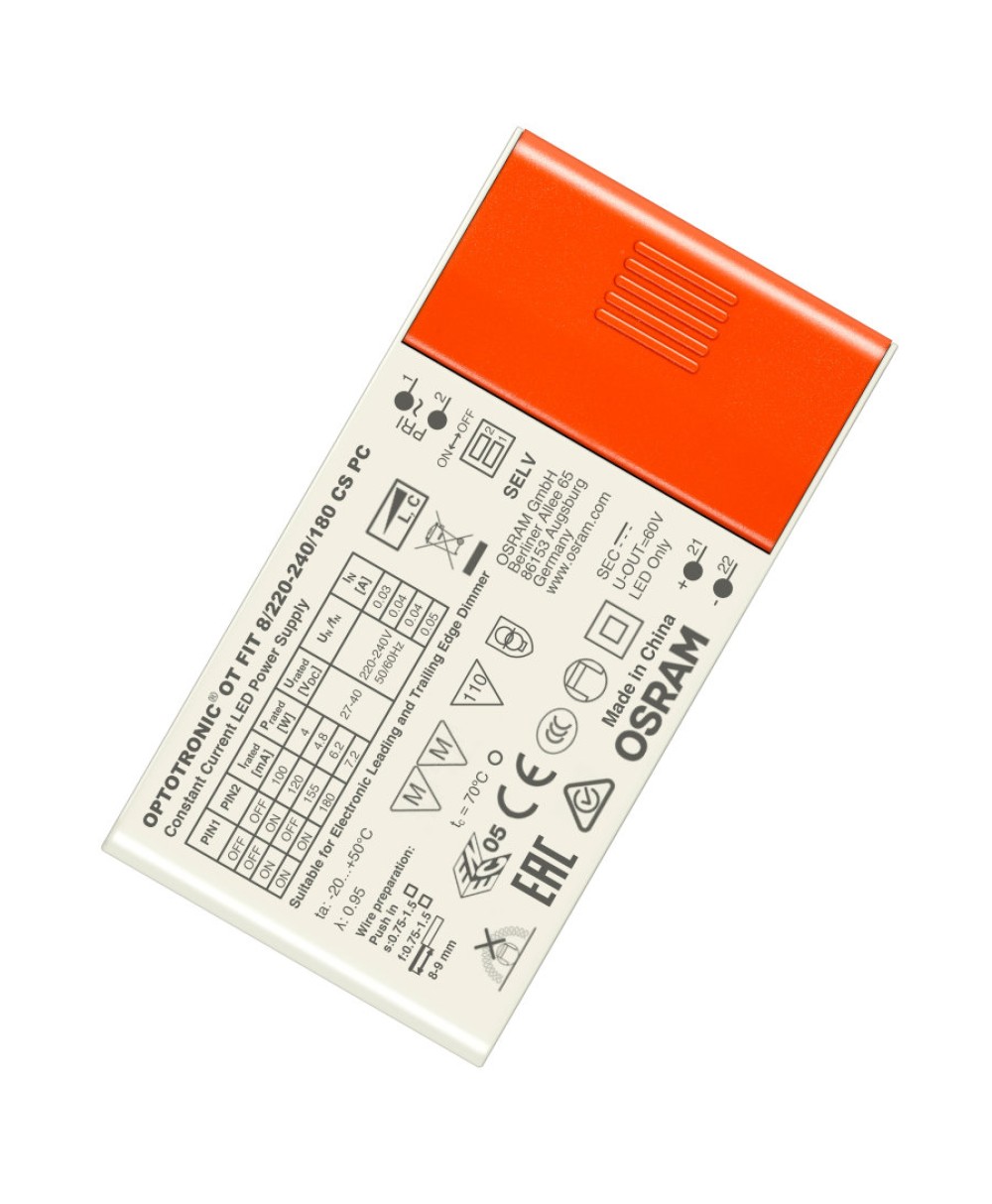

OT FIT 8/220-240/180 CS PC SC
|
27...40 V | 100/120/155/180 mA | |
OT FIT 40/220...240/1A0 CS PC
|
27...40 V | 800 /900/950/1050 mA | |
OT FIT 30/220…240/700 CS PC
|
27...40 V | 500/700 mA | |

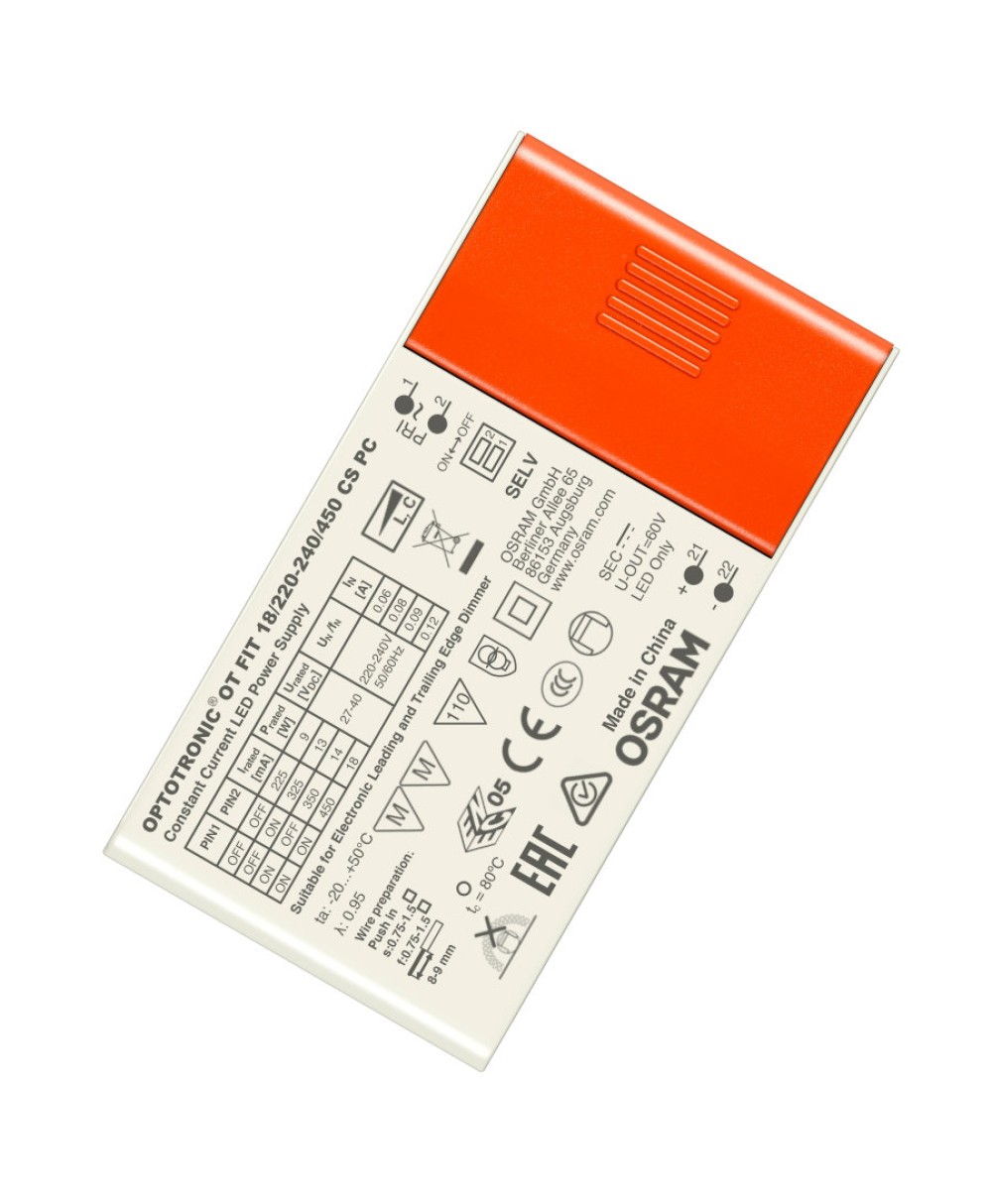

OT FIT 18/220-240/450 CS PC
|
27...40 V | 225/325/350/450 mA | |
OT FIT 14/220...240/350 CS PC
|
27...40 V | 200/250/300/350 mA |
