OPTOTRONIC OUTDOOR – NON DIMMABLE (SELV)
EAN: OPTOTRONIC OUTDOOR – NON DIMMABLE (SELV)
Sales unit
- 1 pcs
- Available with different wattage: 50 W, 100 W, 180 W, 250 W
- Input voltage: 120…277 V
- Output current: 700 mA
- Overtemperature protection
- High surge protection: up to 6 kV (L-N) / 6 kV (L/N-PE)
- High efficiency
- Great flexibility due to wide operating temperature range of -40…50 °C or 55 °C
- IP rating: IP65
- Street and urban lighting
- Industry
- Suitable for luminaires of protection class I
Products
| Product | Nominal output current | Nominal output voltage | Data sheet |

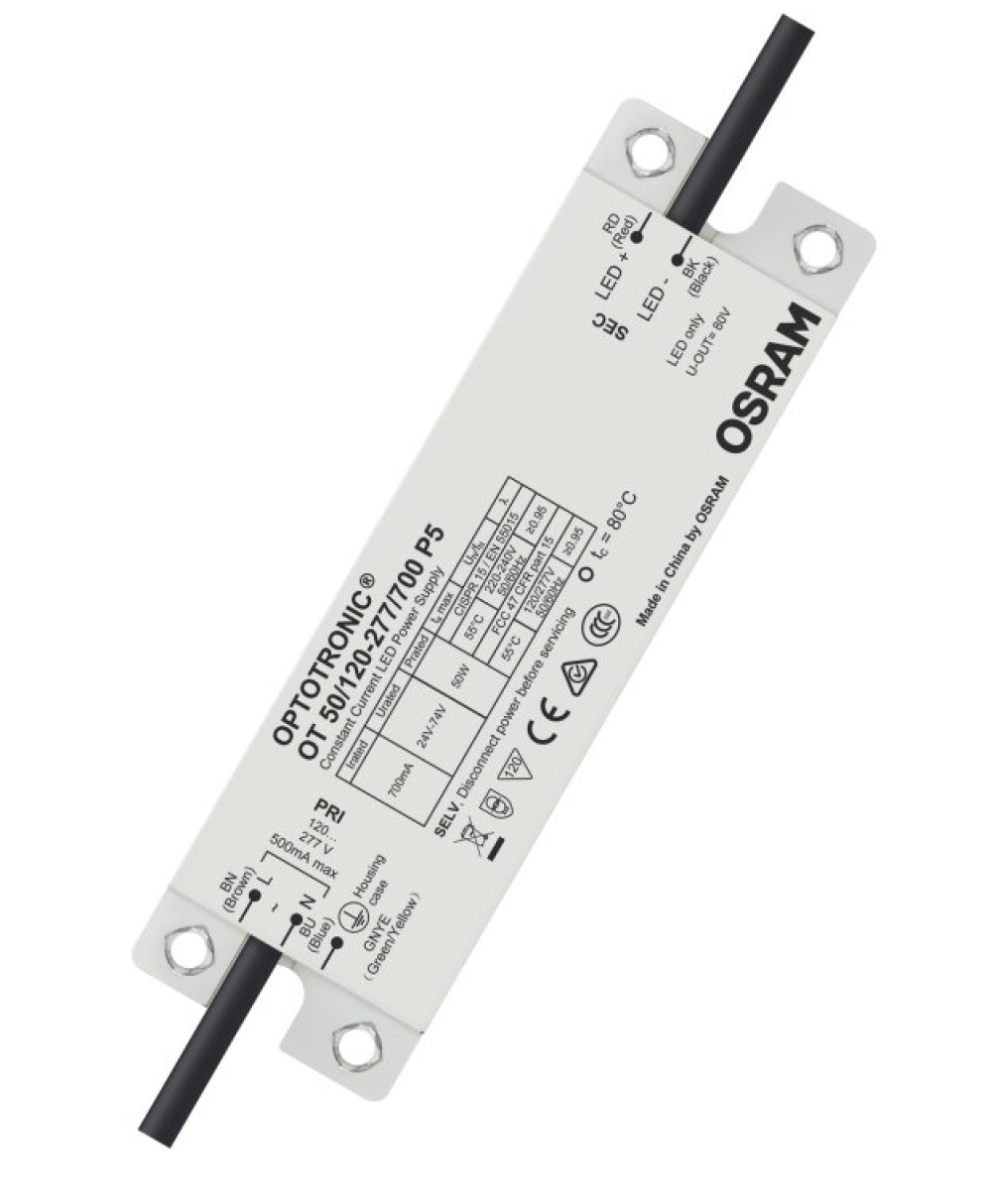

OT 50/120-277/700 P5 (cable clamp Flyleads to be ordered separately)
|
700 mA | 24…74 V | |

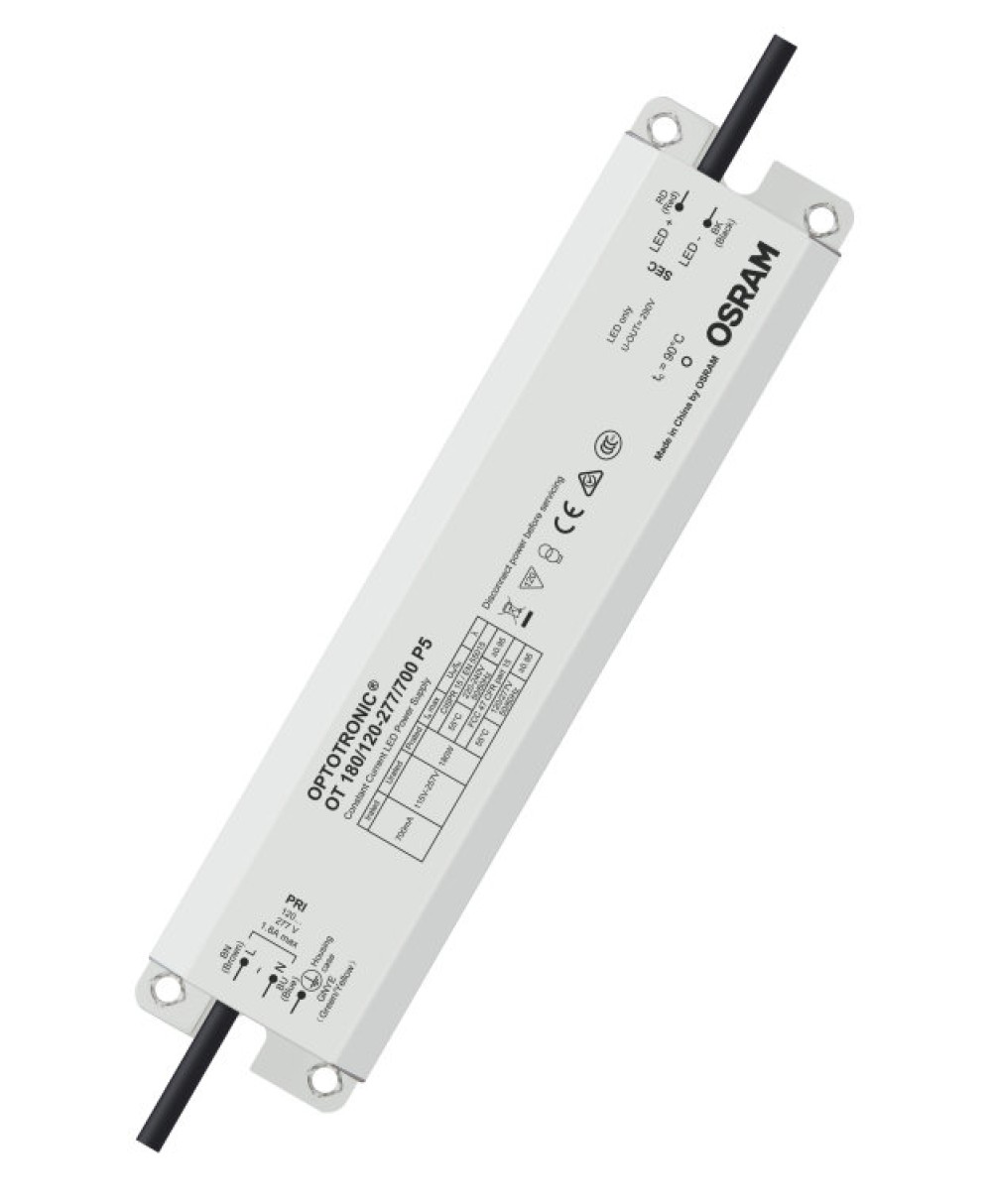

OT 180/120-277/700 P5 (cable clamp Flyleads to be ordered separately)
|
700 mA | 115…257 V | |

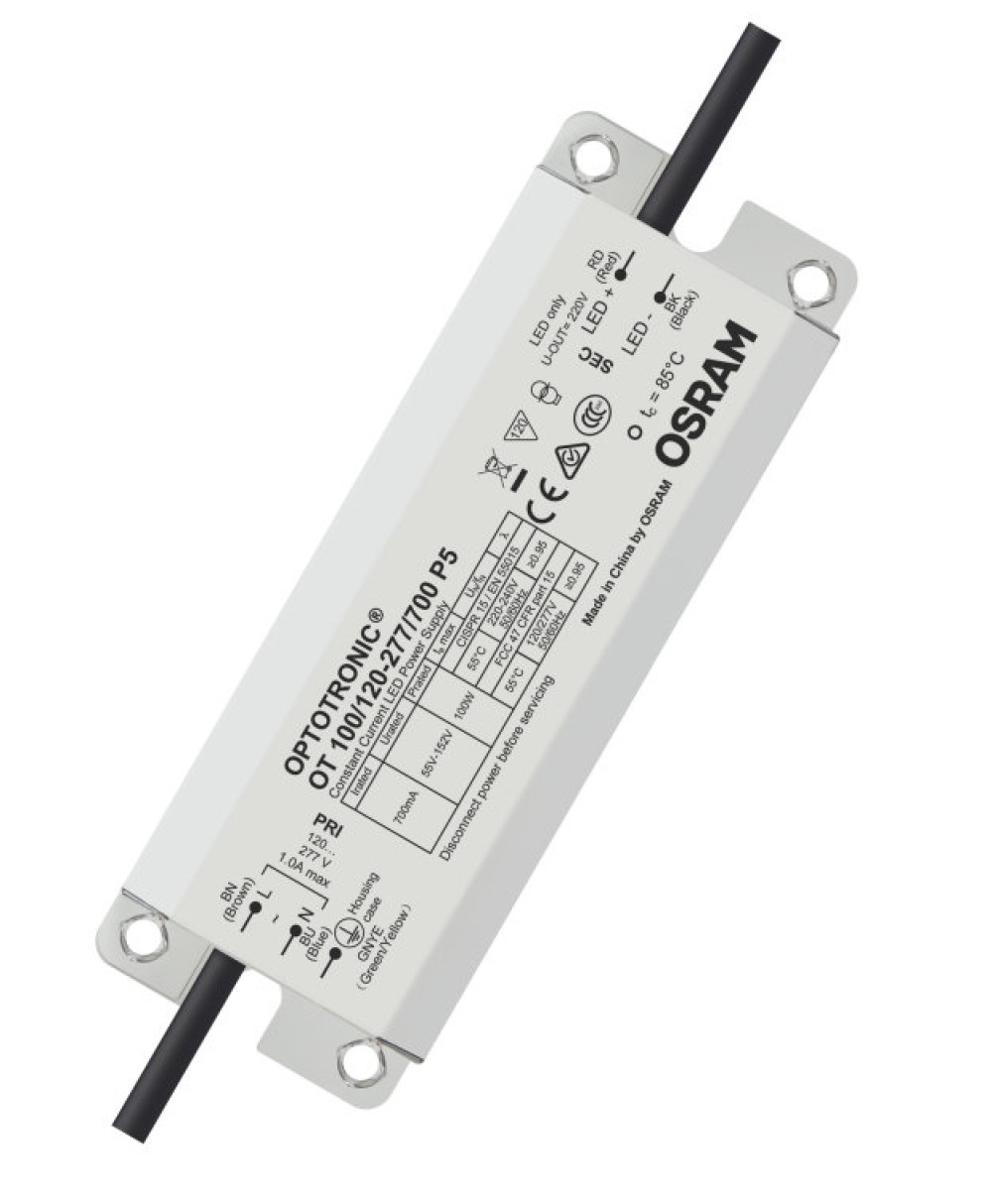

OT 100/120-277/700 P5 (cable clamp Flyleads to be ordered separately)
|
700 mA | 55…152 V |
