OPTOTRONIC OUTDOOR – NON DIMMABLE (DOUBLE/REINFORCED)
EAN: OPTOTRONIC OUTDOOR – NON DIMMABLE (DOUBLE/REINFORC
Sales unit
- 1 pcs
- Overtemperature protection
- Available with different wattage: 100 W, 150 W, 200 W
- Line voltage: 220…240 V
- Current setting via potentiometer without programming
- High surge protection: up to 6 kV
- High efficiency
- Adjustable and wide output current range
- Constant current output
- Protection through double isolation between primary and secondary side (SELV)
- IP rating: IP65
- Long lifetime: up to 100,000 h
- Independent installation
- Street and urban lighting
- Industry
- Suitable for luminaires of protection class I
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |

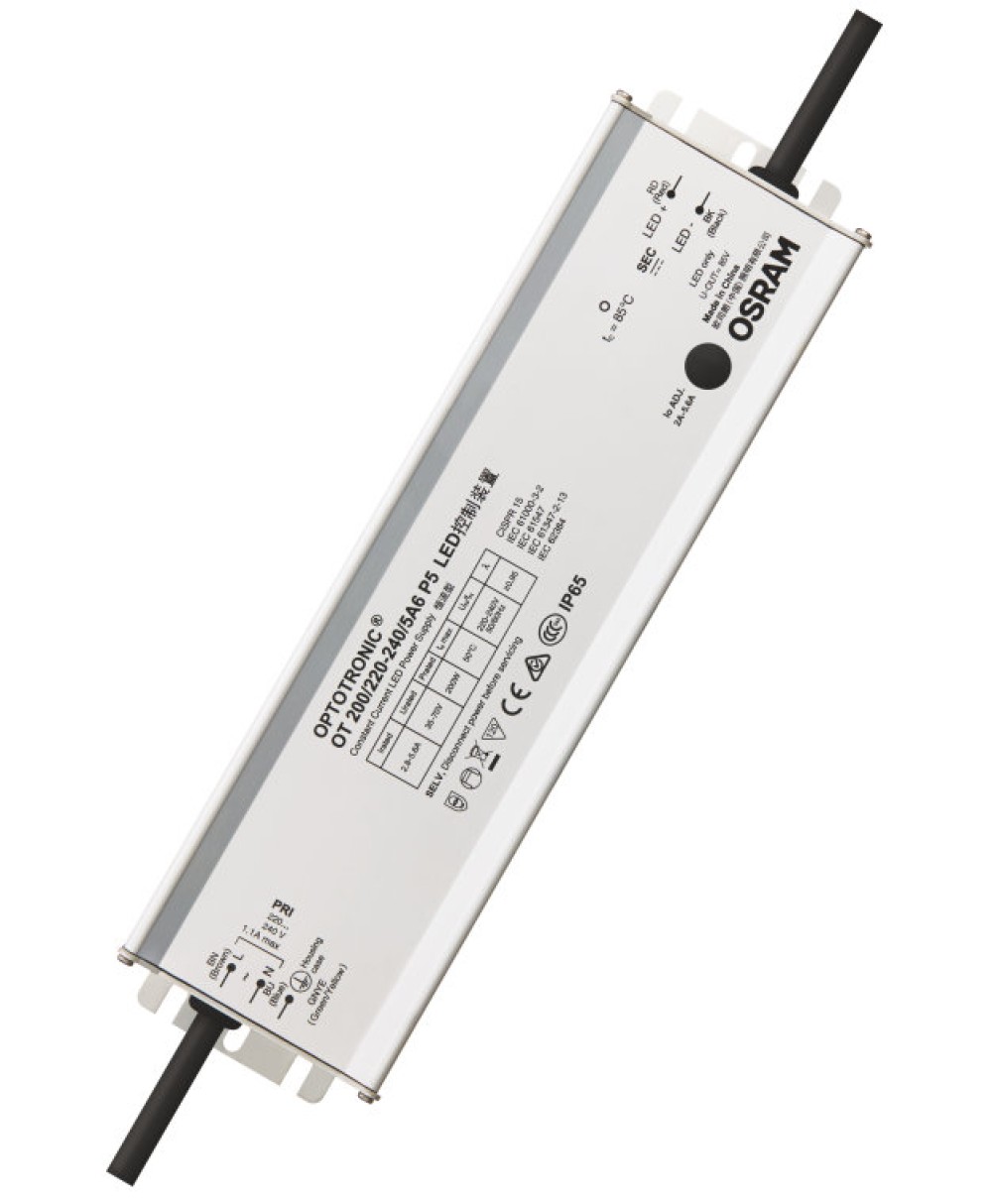

OT 200/ 220-240/5A6 P5 (cable clamp Flyleads to be ordered separately)
|
35…70 V | 2800…5600 mA | |

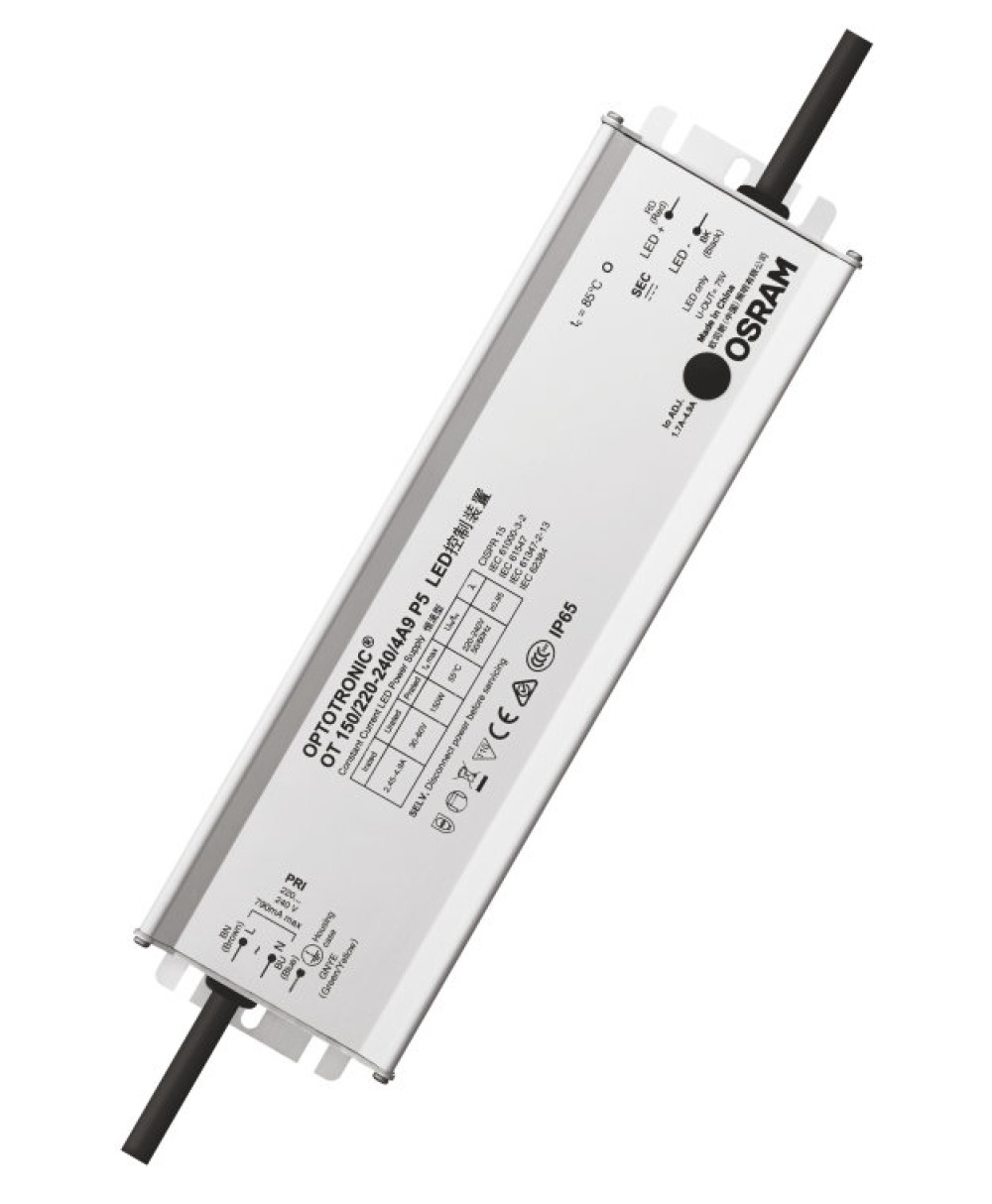

OT 150/ 220-240/4A9 P5 (cable clamp Flyleads to be ordered separately)
|
30…60 V | 2450…4900 mA |
