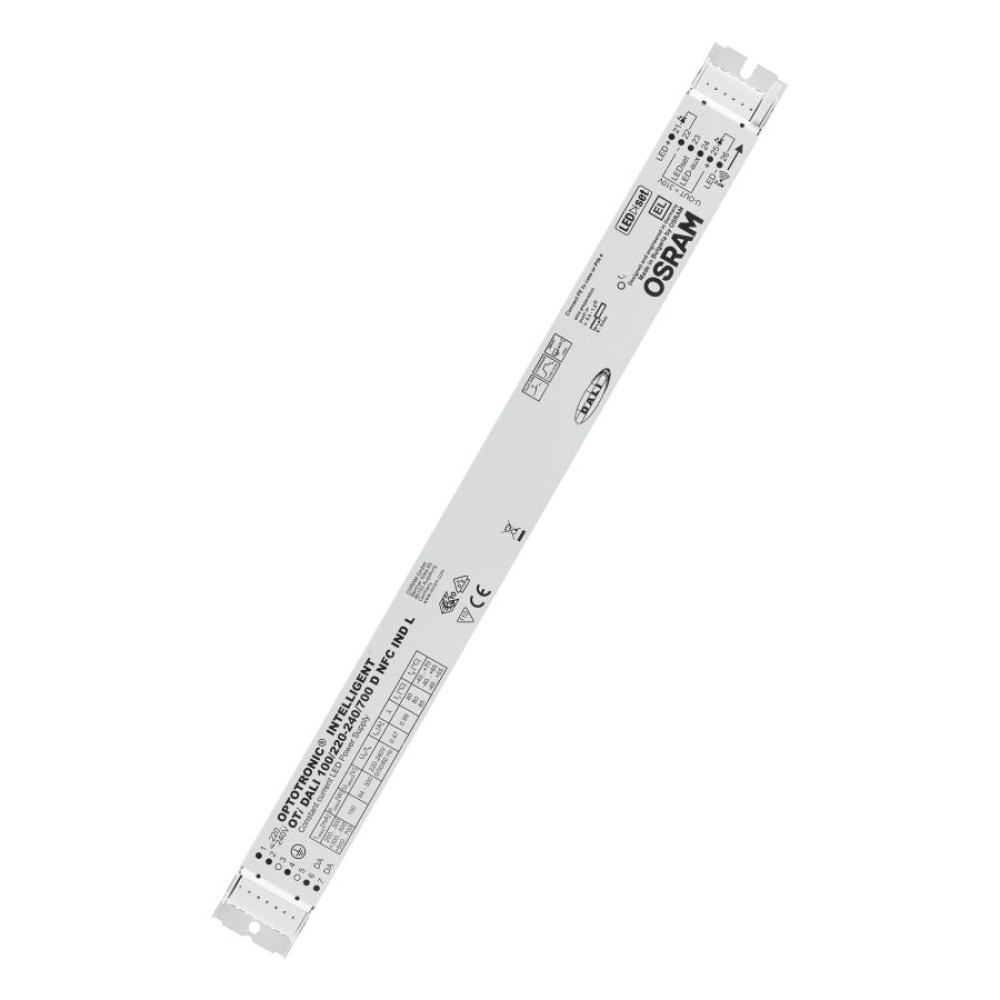

OPTOTRONIC INTELLIGENT INDUSTRY – DALI (NON-ISOLATED)
EAN: OPTOTRONIC INTELLIGENT INDUSTRY – DALI (NON-ISOLAT
Sales unit
- 1 pcs
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Output power: 75 W
- Supply voltage: 220…240 V
- Available with output current range: up to 550 mA
- Constant Lumen Output (CLO)
- Integrated customizable thermal management (Driver Guard)
- Non-isolated drivers
- DALI-2 certified (Part -101,-102 and -207)
- Fully programmable via software (DALI Interface, NFC)
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- High light quality: 1…100% amplitude dimming and <1% output ripple current
- Wide operating temperature range: -40…+65 °C
- High surge protection: up to 4 kV (L-N) / 4 kV (L/N-PE)
- Integrated inrush current limiter
- Very high efficiency (up to 96%)
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
- Easy to use in corridors and restrooms because of three-level Corridor function
- Touch DIM application: easy to control via pushbutton or sensor
- Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
- Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
- Feedback of power consumption and operating hours (Fit for SMART GRID)
- Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
- Luminaire information for easy maintenance
- Advanced luminaire/driver data (power, energy, operating hours…) for analytics
- Linear lighting solutions for industry, storage areas and retail applications
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for installation in emergency lighting systems according to EN 60598-2-22
- Suitable for luminaires of protection class I
Products
Product | Nominal output voltage | Nominal output current | Data sheet |
![]() |
64…300 V | 125…550 mA | |
![]() |
64…300 V | 200…700 mA | |
![]() |
64…300 V | 250…1000 mA |
