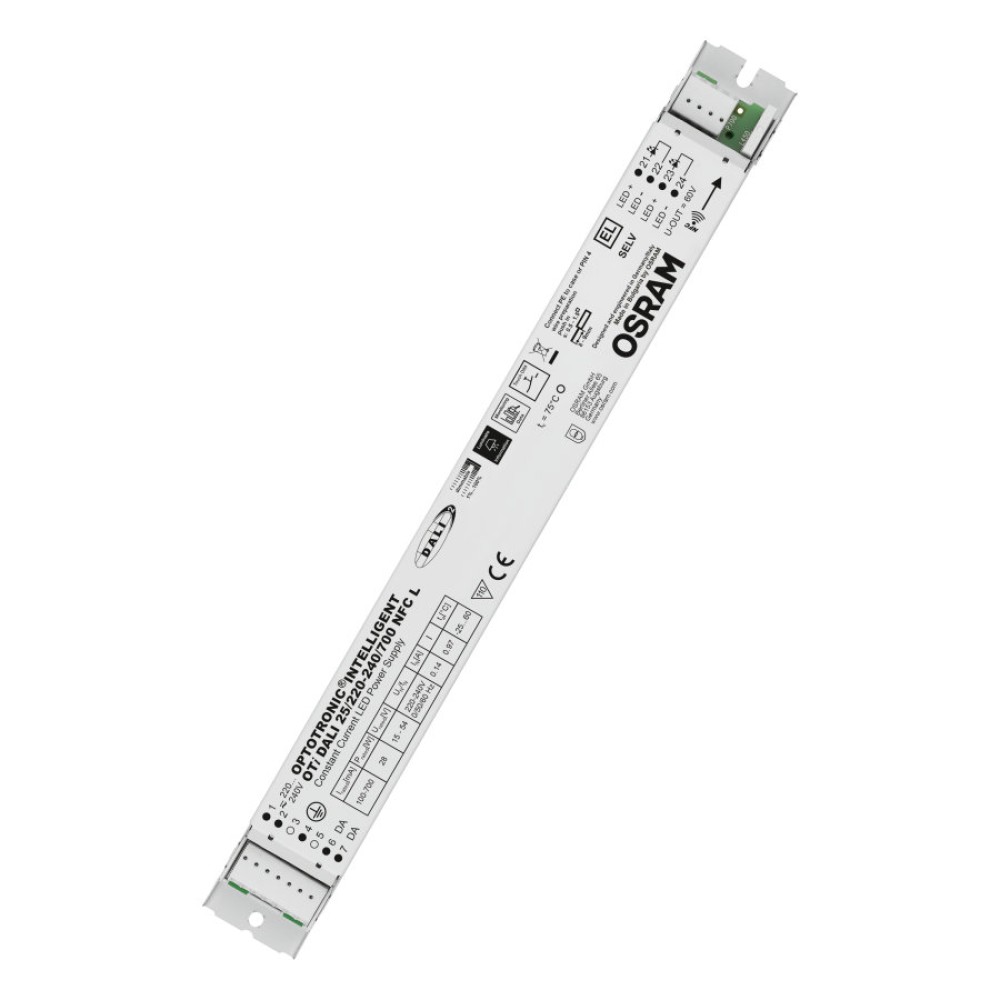

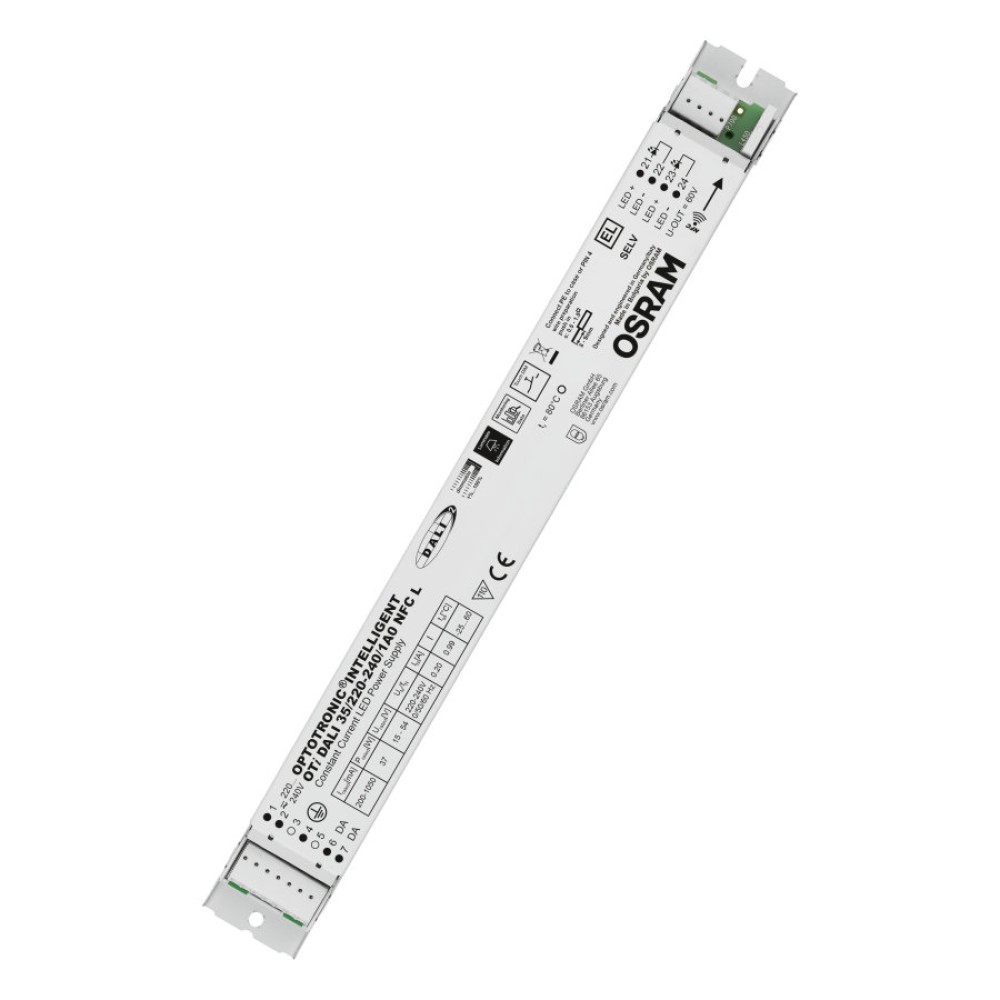

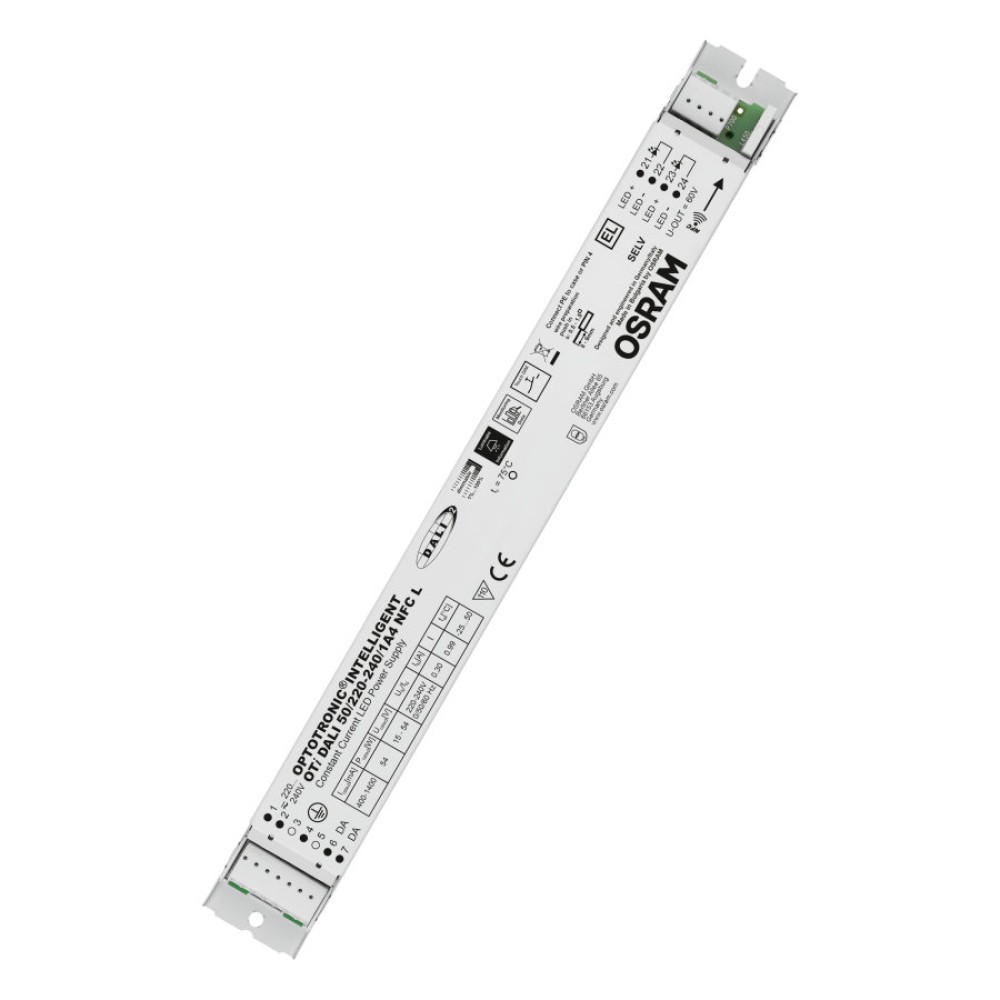

OPTOTRONIC INTELLIGENT – DALI NFC (SELV)
EAN: OPTOTRONIC INTELLIGENT – DALI NFC (SELV)
Sales unit
Family data sheet
View downloads
- 1 pcs
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Output power: 25 W
- Supply voltage: 220…240 V
- Available with output current range: up to 700 mA
- Constant Lumen Output (CLO)
- Integrated customizable thermal management (Driver Guard)
- Fully programmable via software (DALI Interface, NFC)
- Advanced luminaire/driver data (power, energy, operating hours…) for analytics
- DALI-2 certified incl. Parts 251, 252, 253 _ Lifetime: up to 100,000 h (temperature at T c = 65 °C, max. 10 % failure rate) High-quality dimming of 1…100 % by amplitude dimming
- Higher quality of light thanks to < 3% output ripple current
- Very high efficiency
- Very low standby power consumption: < 0.15 W
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
- Linear lighting for office, education, industry, storage areas and retail
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for luminaires of protection class I
Products
Product | Nominal output voltage | Nominal output current | Data sheet |
![]() |
15…54 V | 400…1400 mA | |
![]() |
15…54 V | 180…700 mA | |
![]() |
15…54 V | 200…1050 mA |
