OPTOTRONIC FIT D NFC IND L
EAN: OPTOTRONIC FIT D NFC IND L
Sales unit
Family data sheet
View downloads
- 1 pcs
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Output power: 75 W
- Supply voltage: 220…240 V
- Available with output current range: up to 550 mA
- Constant Lumen Output (CLO)
- Non-isolated drivers
- Constant Lumen Output (CLO)
- Flexible and future-proof current setting via NFC and LT2
- Lifetime: up to 100,000 h (temperature at Tc = 75 °C, max. 10 % failure rate)
- Wide operating temperature range: -40…+65 °C
- High quality of light thanks to <1% output ripple current
- High surge protection: up to 4 kV (L-N) / 4 kV (L/N-PE)
- Very high efficiency (up to 96%)
- Integrated inrush current limiter
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
- Linear lighting solutions for industry, storage areas and retail applications
- Installation in emergency lighting systems according to
- IEC 61347-2-13, appendix J
- Suitable for installation in emergency lighting systems according to EN 60598-2-22
- Suitable for luminaires of protection class I
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |
OT FIT 75/220-240/550 D NFC IND L
|
64…300 V | 125…550 mA | |
OT FIT 300/220...240/1A6 D NFC IND L
|
60…300 V | 250…1550 mA | |

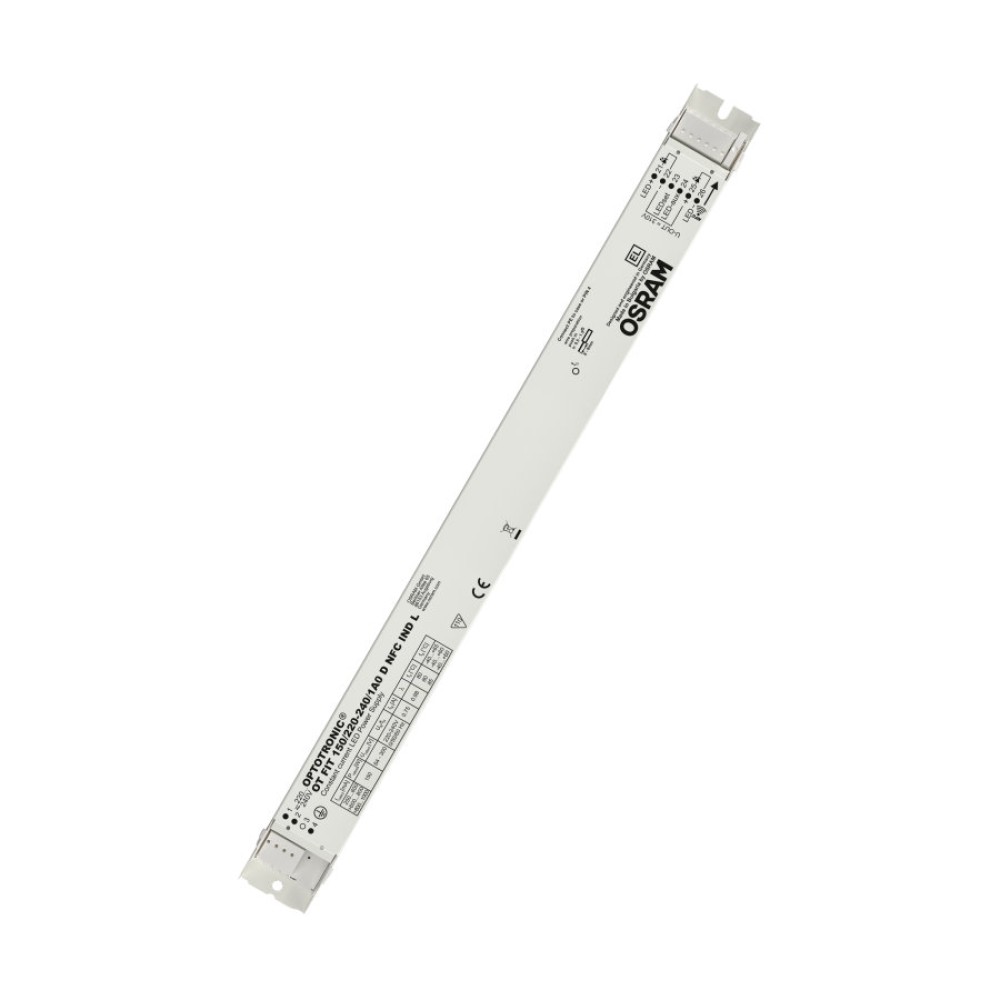

OT FIT 150/220-240/1A0 D NFC IND L
|
64…300 V | 250…1000 mA | |

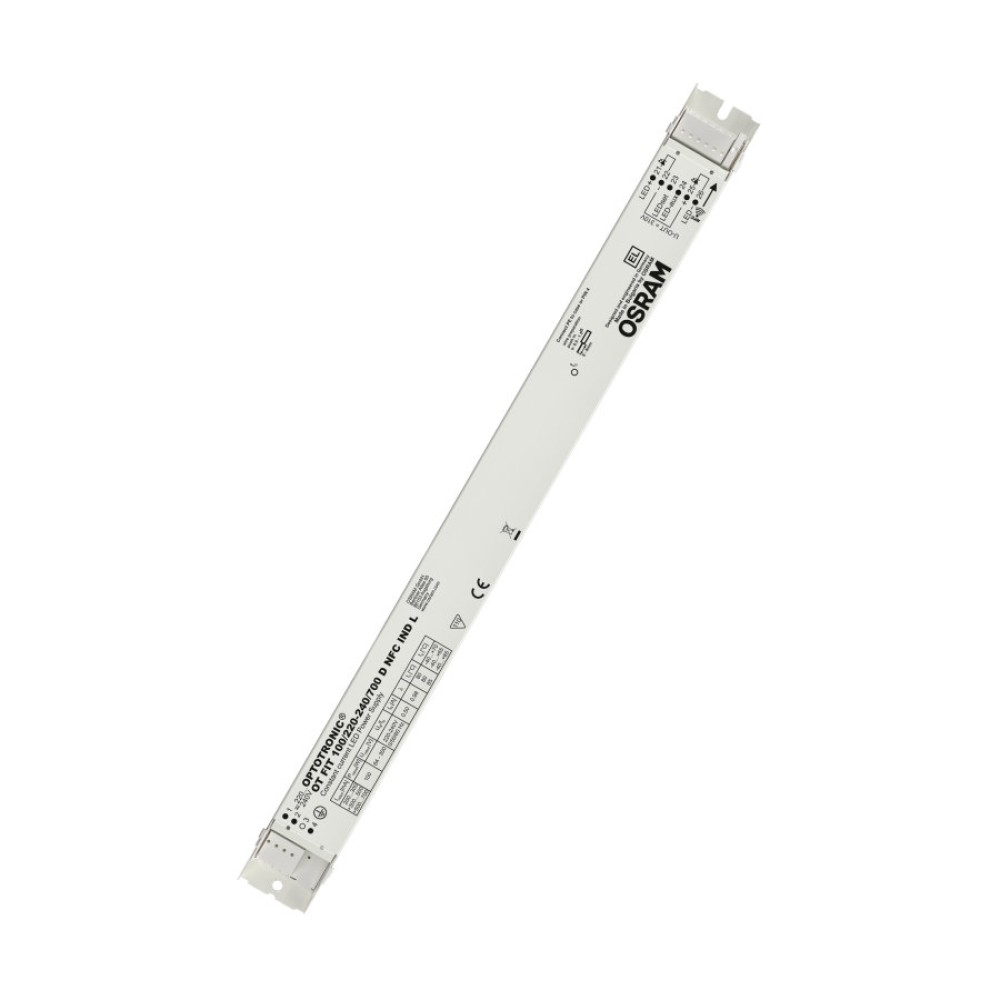

OT FIT 100/220-240/700 D NFC IND L
|
64…300 V | 200…700 mA |
