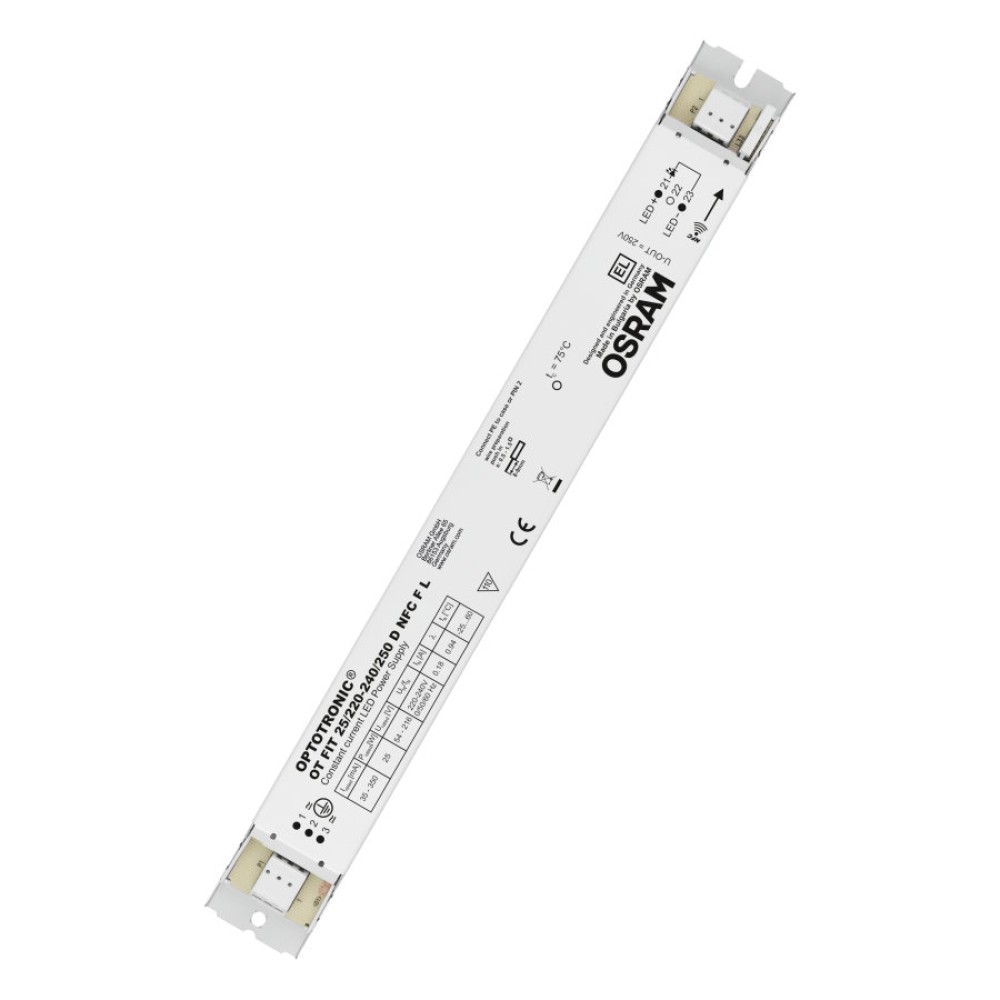

OPTOTRONIC FIT D NFC FL
EAN: OPTOTRONIC FIT D NFC FL
Sales unit
Family data sheet
View downloads
- 1 pcs
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Output power: 25 W
- Constant Lumen Output (CLO)
- Supply voltage: 220…240 V
- Available with output current range: up to 250 mA
- Non-isolated drivers
- Flat housing (16 mm height) for innovative luminaire designs and applications
- Flexible and future-proof current setting via NFC (Near Field Communication)
- Lifetime: up to 100,000 h (temperature at T c = 65 °C, max. 10 % failure rate)
- Higher quality of light thanks to < 1% output ripple current
- Very high efficiency
- Fulfill safety requirement due to overload, overtemperature protection
- Linear and area lighting
- Industry lighting
- Suitable for luminaires of protection class I
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |
OT FIT 75/220-240/550 D NFC F L
|
54…216 V | 125…500 mA | |
OT FIT 35/220-240/400 D NFC F L
|
54…216 V | 75…400 mA | |
OT FIT 25/220-240/250 D NFC F L
|
54…216 V | 35…250 mA |
