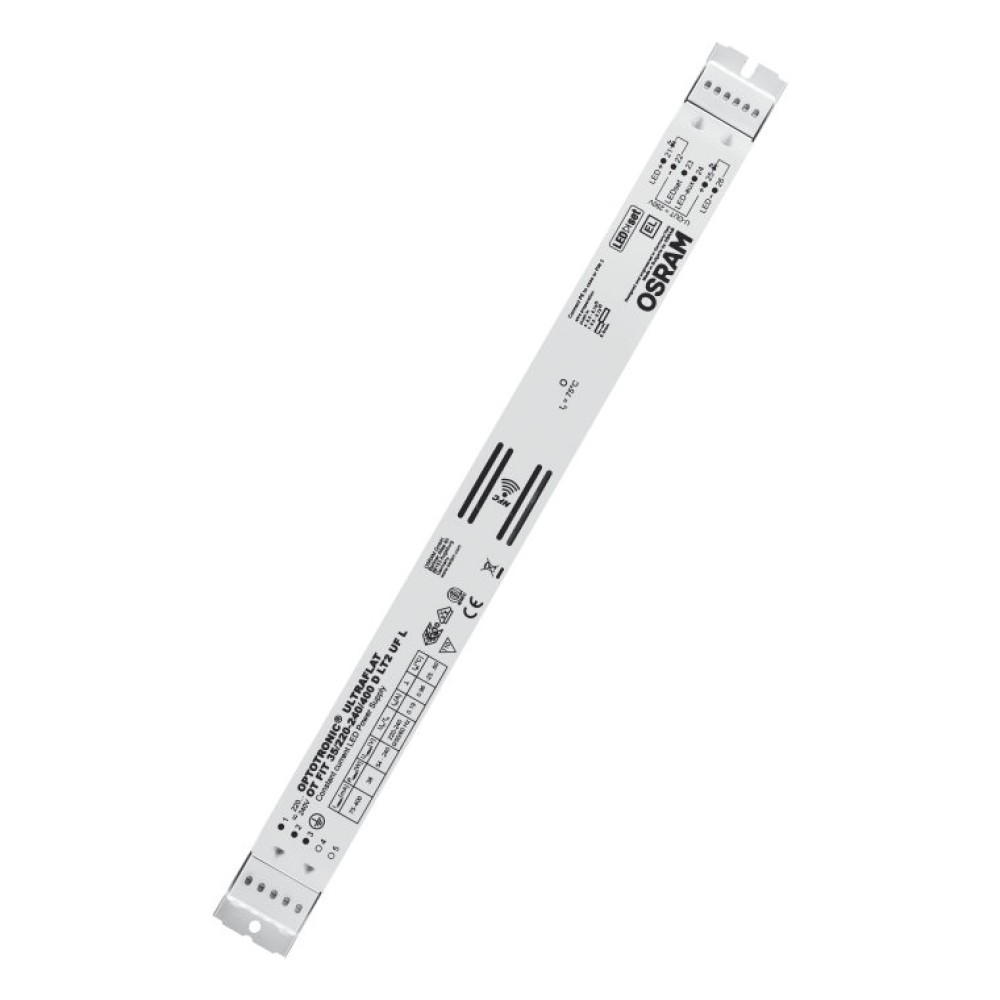

OPTOTRONIC FIT D LT2 UF L
EAN: OPTOTRONIC FIT D LT2 UF L
Sales unit
Family data sheet
View downloads
- 1 pcs
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Output power: 35 W
- Supply voltage: 220…240 V
- Available with output current range: up to 400 mA
- Non-isolated drivers
- Ultra-flat housing (11 mm height) for innovative luminaire designs and applications
- Flexible and future-proof current setting via NFC and LT2
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- Higher quality of light thanks to <1% output ripple current
- Very high efficiency
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
- Linear lighting for office, education, industry, storage areas and retail
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for luminaires of protection class I
Products
| Product | Nominal output current | Nominal output voltage | Data sheet |

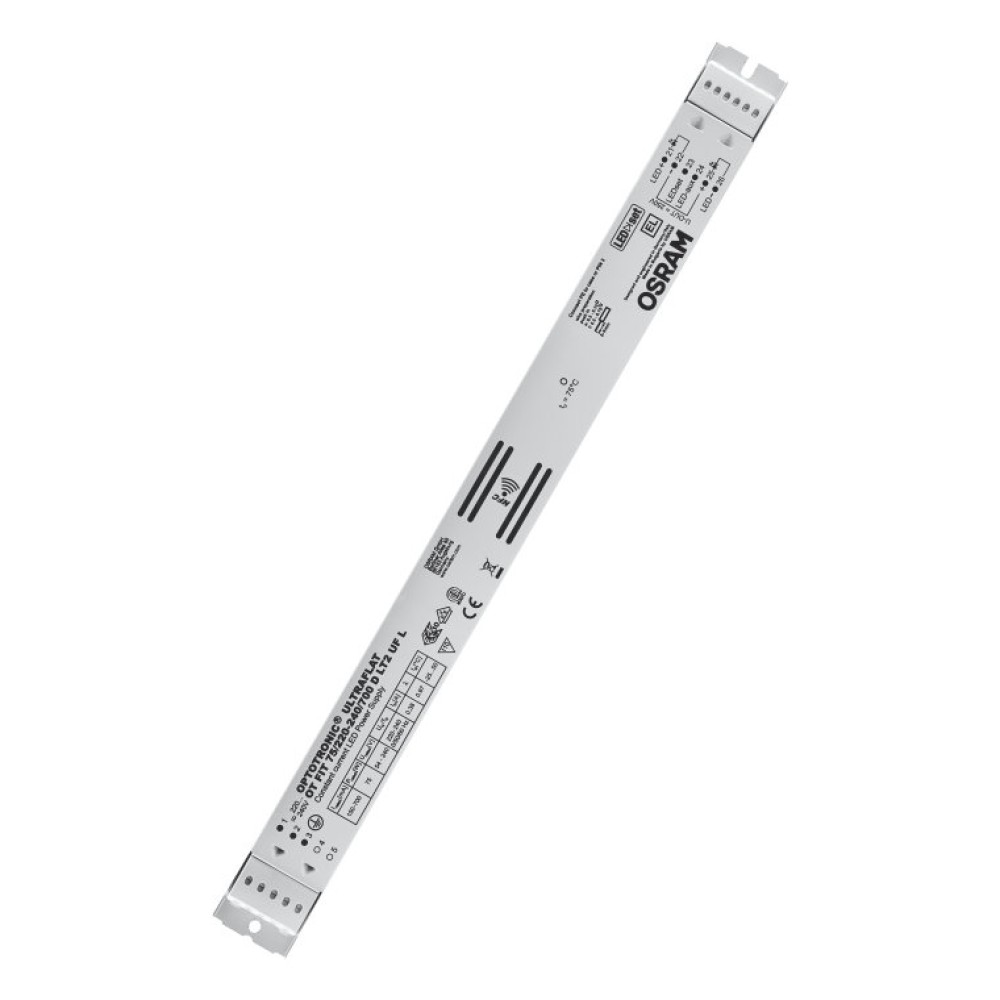

OT FIT 75/220-240/700 D LT2 UF L
|
150…700 mA | 54…240 V | |
OT FIT 35/220-240/400 D LT2 UF L
|
75…400 mA | 54…240 V |
