OPTOTRONIC FIT D LT2 L
EAN: OPTOTRONIC FIT D LT2 L
Sales unit
Family data sheet
View downloads
- 1 pcs
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Output power: 25 W
- Supply voltage: 220…240 V
- Available with output current range: up to 300 mA
- Non-isolated drivers
- Flexible current setting (LEDset2)
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- High quality of light thanks to low output ripple current
- Very high efficiency
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
- Linear lighting for office, education, industry, storage areas and retail
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for installation in emergency lighting systems according to EN 60598-2-22
- Suitable for luminaires of protection class I
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |

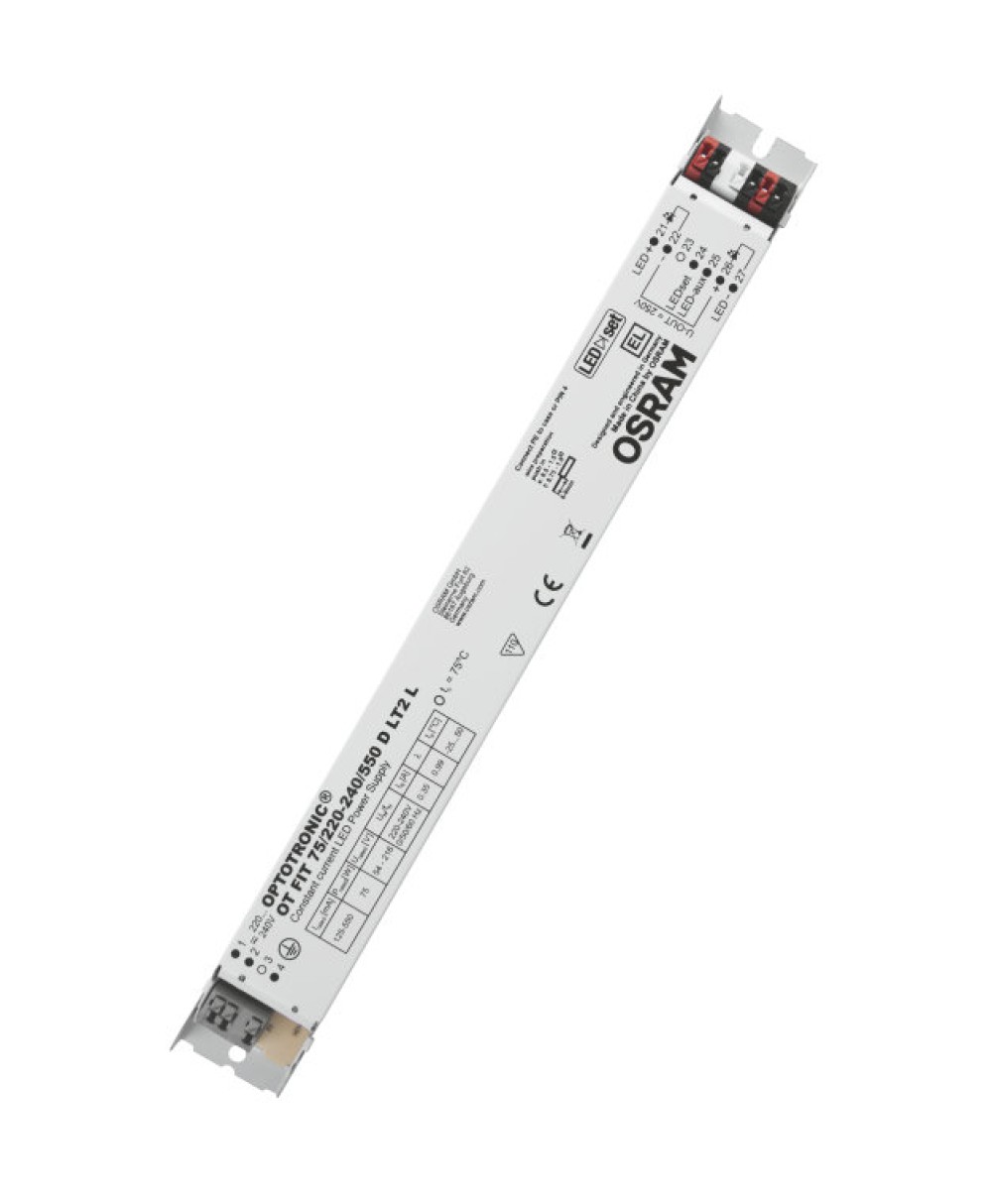

OT FIT 75/220-240/550 D LT2 L
|
54…216 V | 125…550 mA | |

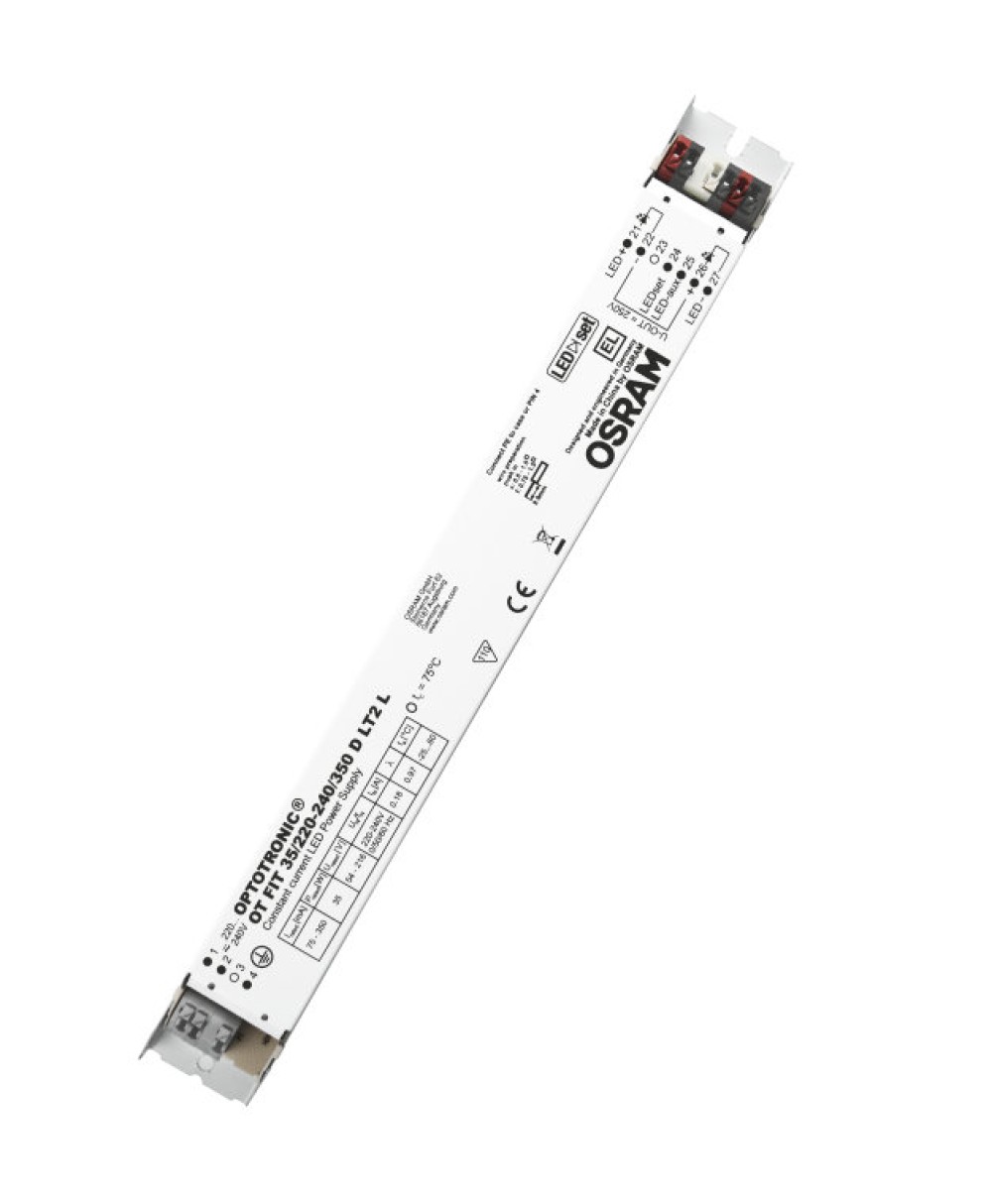

OT FIT 35/220-240/350 D LT2 L
|
54…216 V | 65…350 mA | |
OT FIT 25/220-240/300 D LT2 L
|
40…216 V | 35...300 mA | |

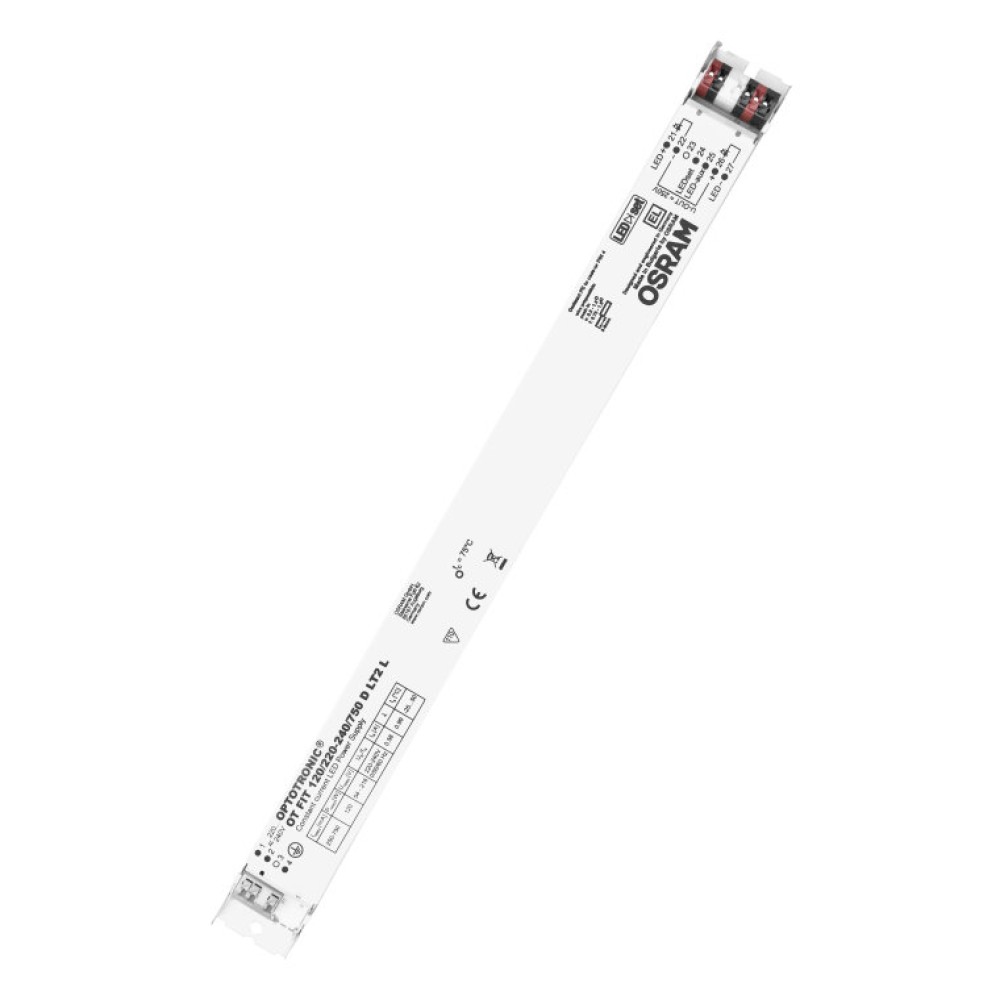

OT FIT 120/220-240/750 D LT2 L
|
54…216 V | 250…700 mA |
