OPTOTRONIC FIT D L
EAN: OPTOTRONIC FIT D L
Sales unit
Family data sheet
View downloads
- 1 pcs
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Output power: 30 W
- Supply voltage: 220…240 V
- Available with output current range: up to 125 mA
- Non-isolated drivers
- Small housing design
- Fixed current
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- High quality of light thanks to low output ripple current
- High efficiency
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
- Linear lighting for office, education, industry, storage areas and retail
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for installation in emergency lighting systems according to EN 60598-2-22
- Suitable for luminaires of protection class I
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |

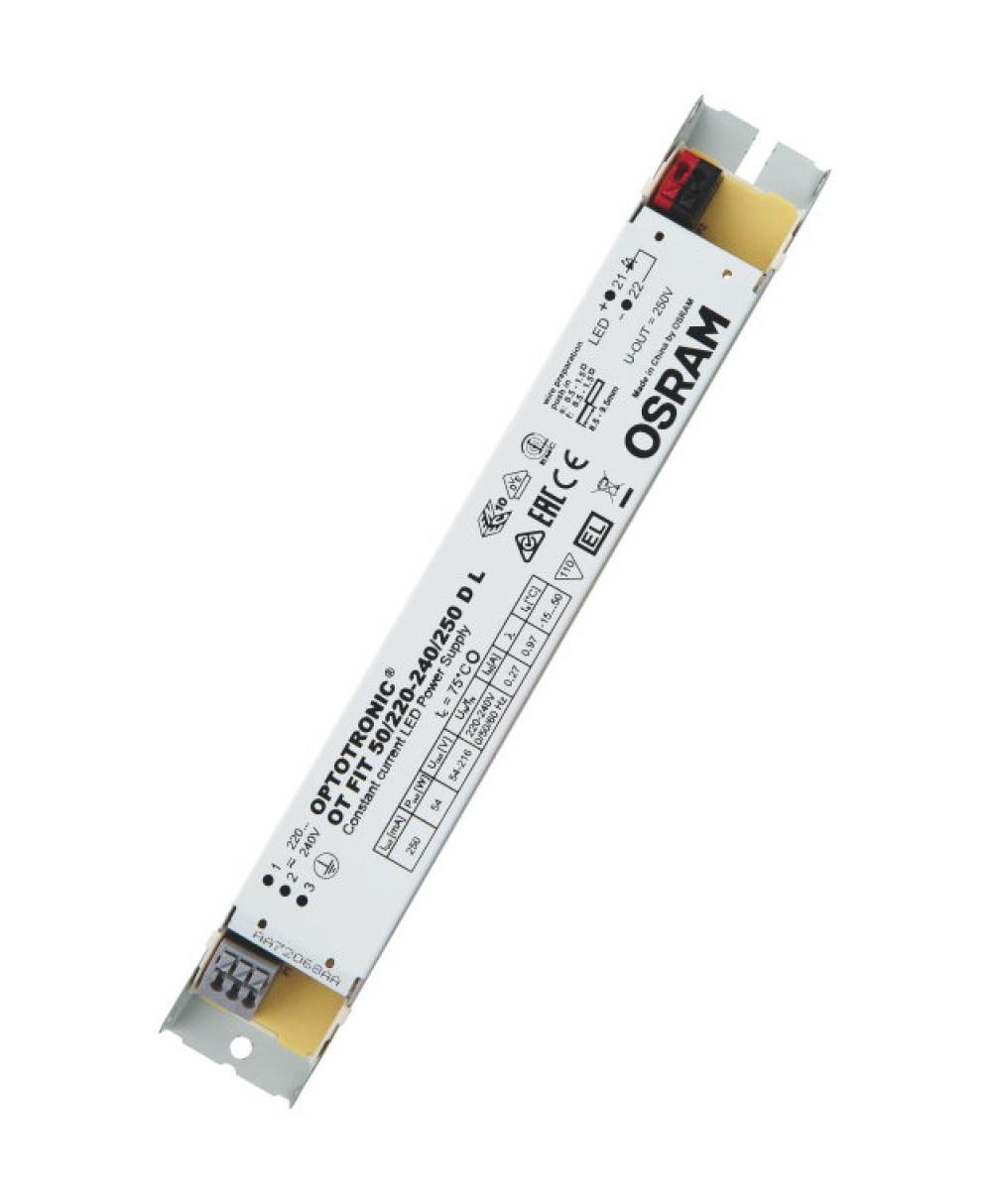

OT FIT 50/220-240/250 D L
|
54…216 V | 250 mA | |

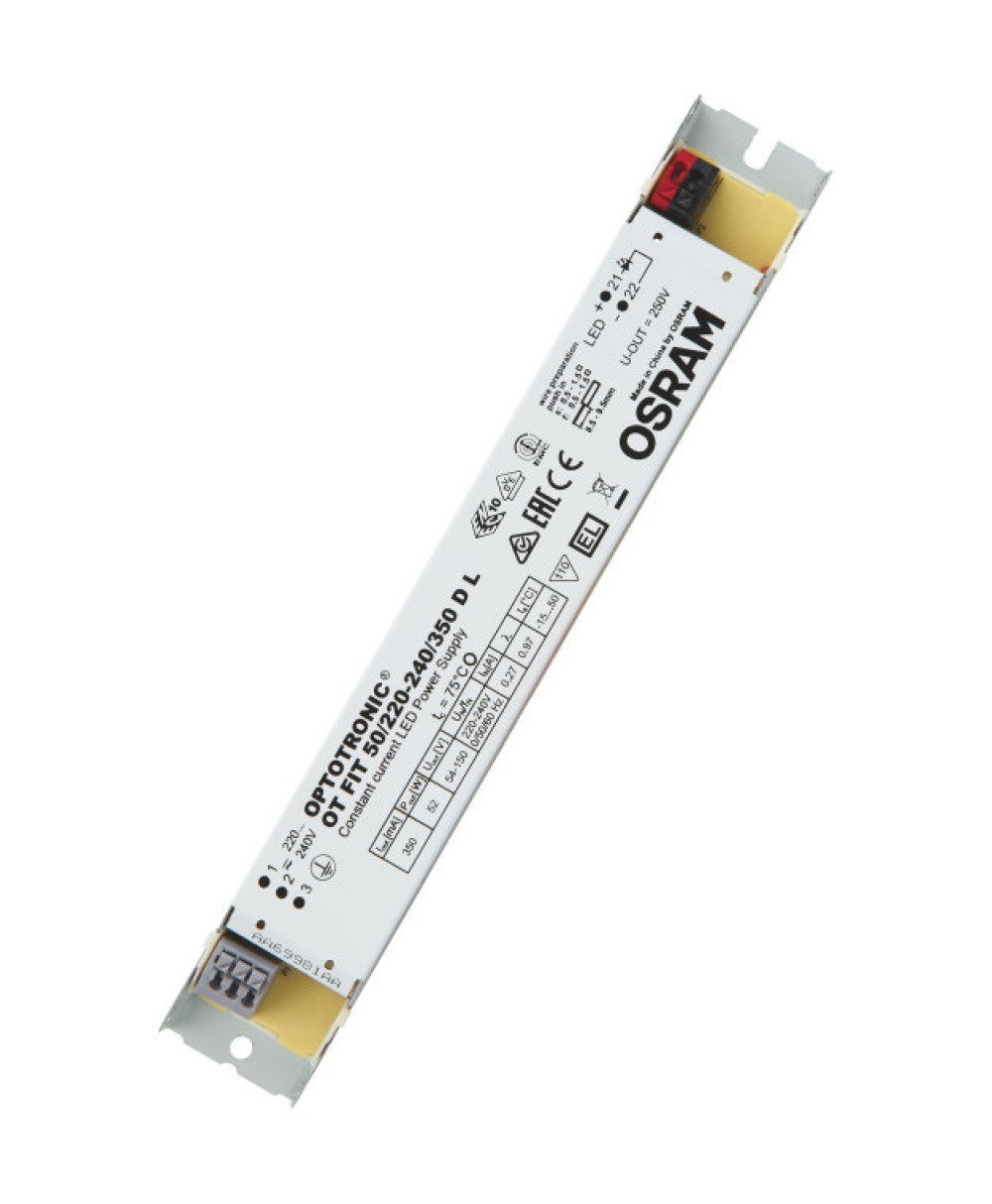

OT FIT 50/220-240/350 D L
|
54…150 V | 350 mA | |

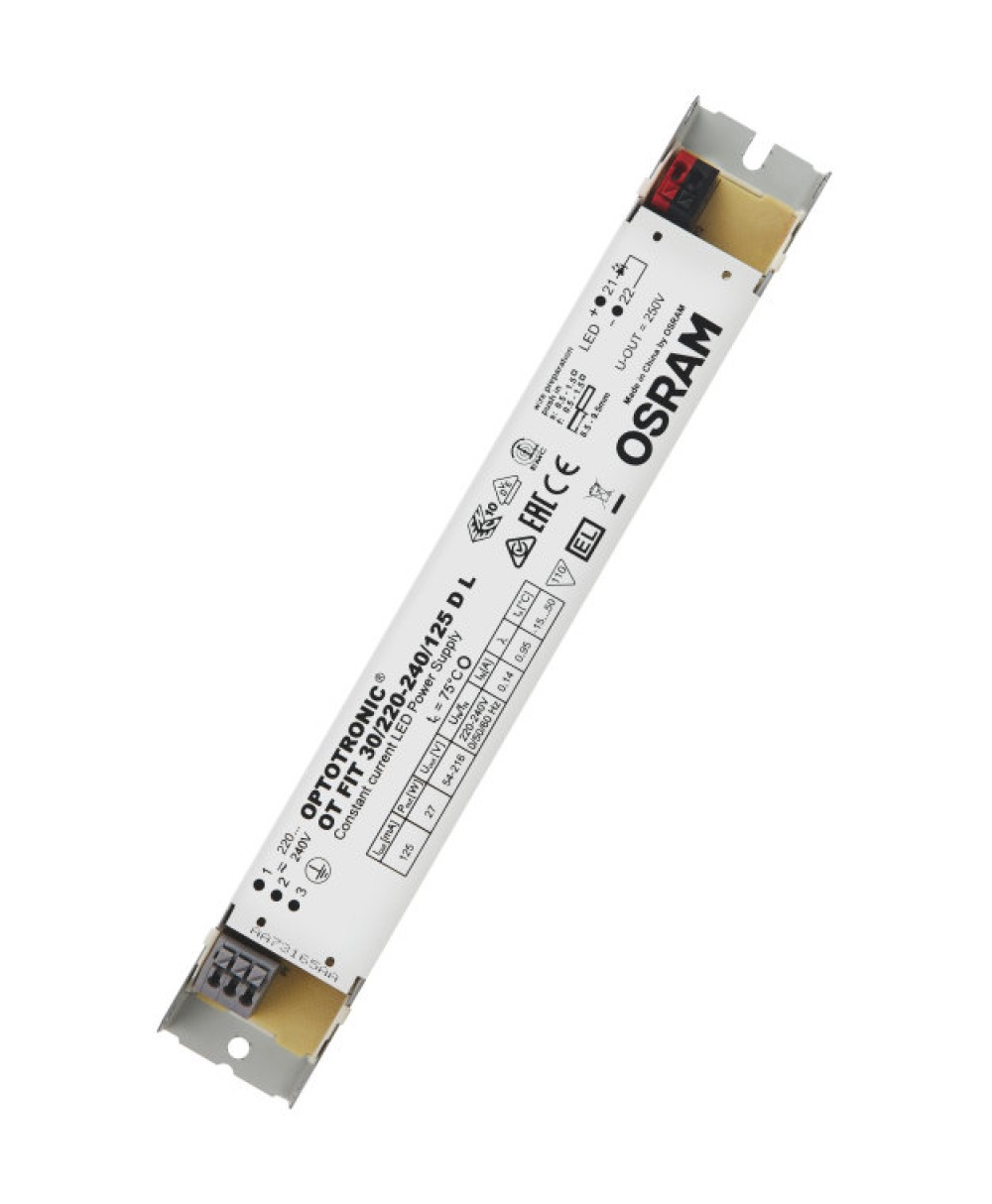

OT FIT 30/220-240/125 D L
|
54…216 V | 200 mA | |

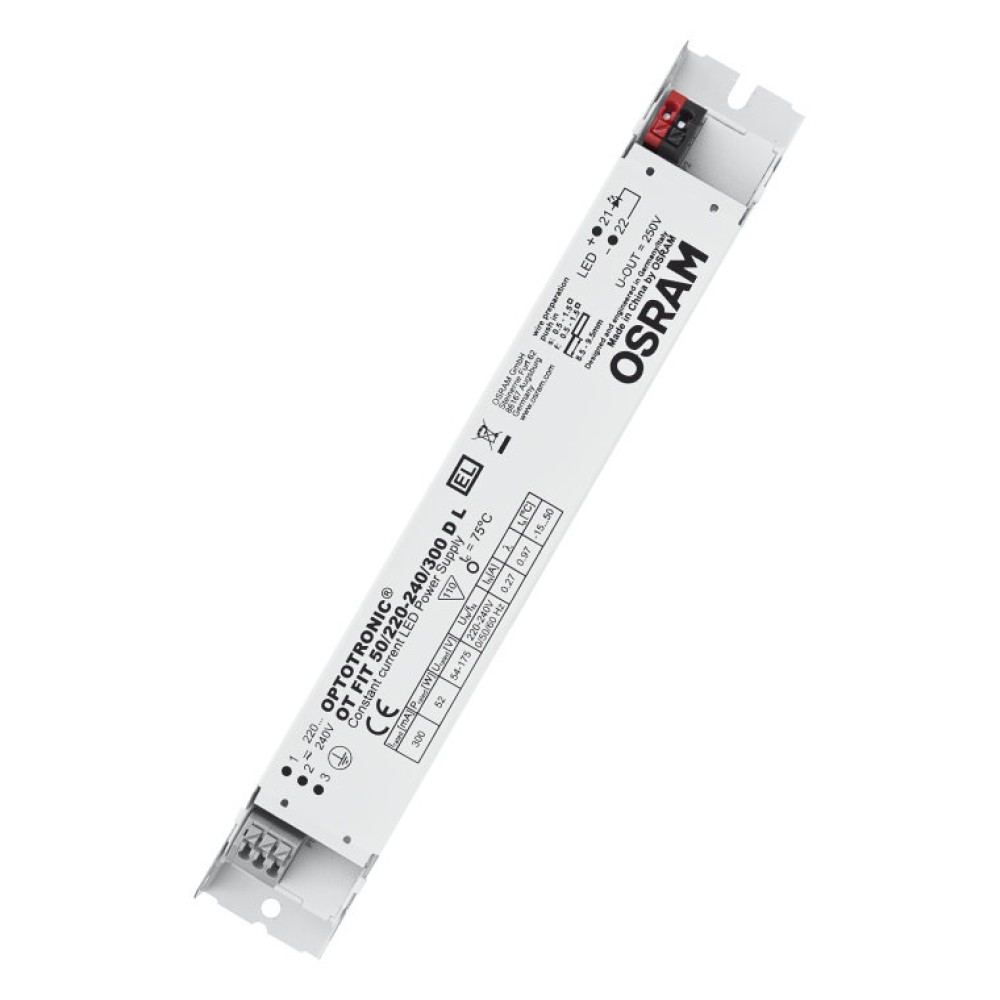

OT FIT 50/220-240/300 D L
|
54…175 V | 300 mA | |
OT FIT 30/220-240/125 D L
|
54…216 V | 125 mA |
