OPTOTRONIC FIT CS L G2
EAN: OPTOTRONIC FIT CS L G2
Sales unit
Family data sheet
View downloads
- 1 pcs
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Output power: 35
- Supply voltage: 220…240 V
- Available with output current range: up to 700 mA
- SELV system
- Flexible current setting (DIPswitch – 4 currents)
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- High quality of light thanks to low output ripple current
- High efficiency
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
- Linear lighting for office, education, industry, storage areas and retail
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for luminaires of protection class I
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |

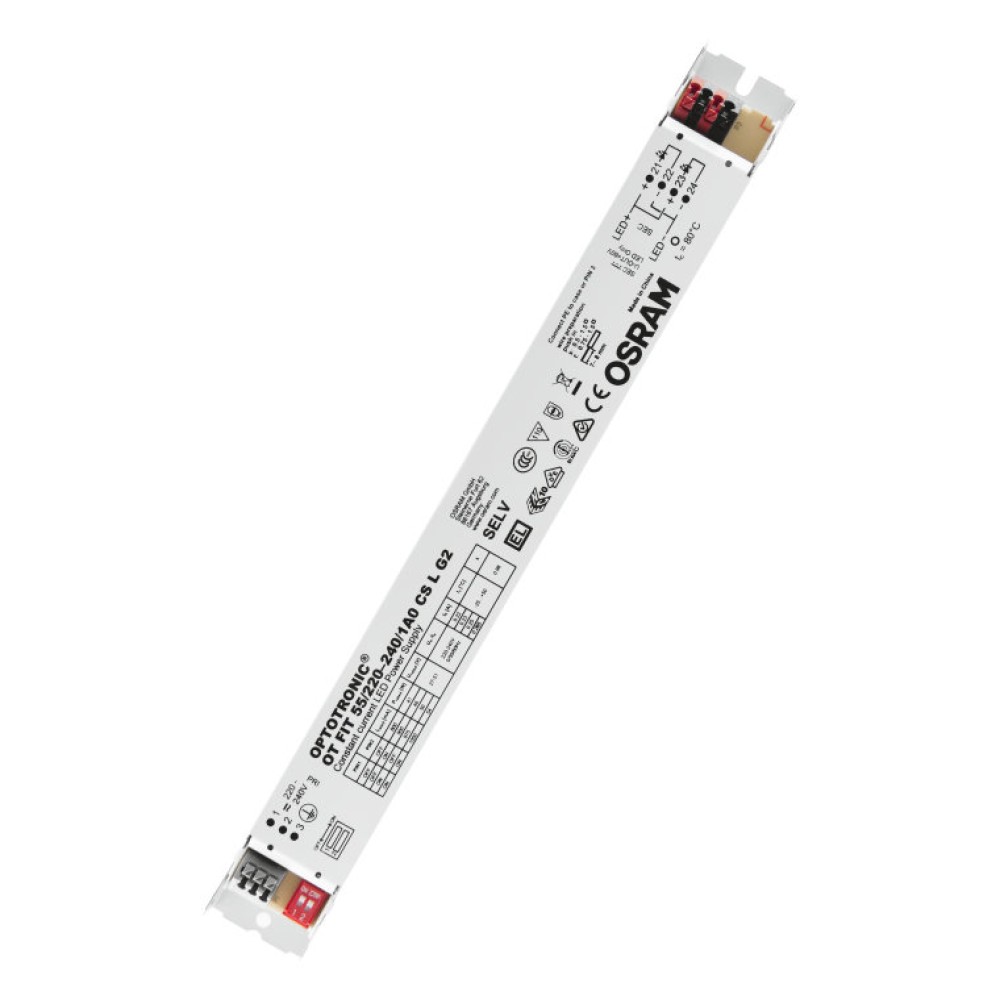

OT FIT 55/220-240/1A0 CS L G2
|
27…51 V | 800/900/975/1050 mA | |

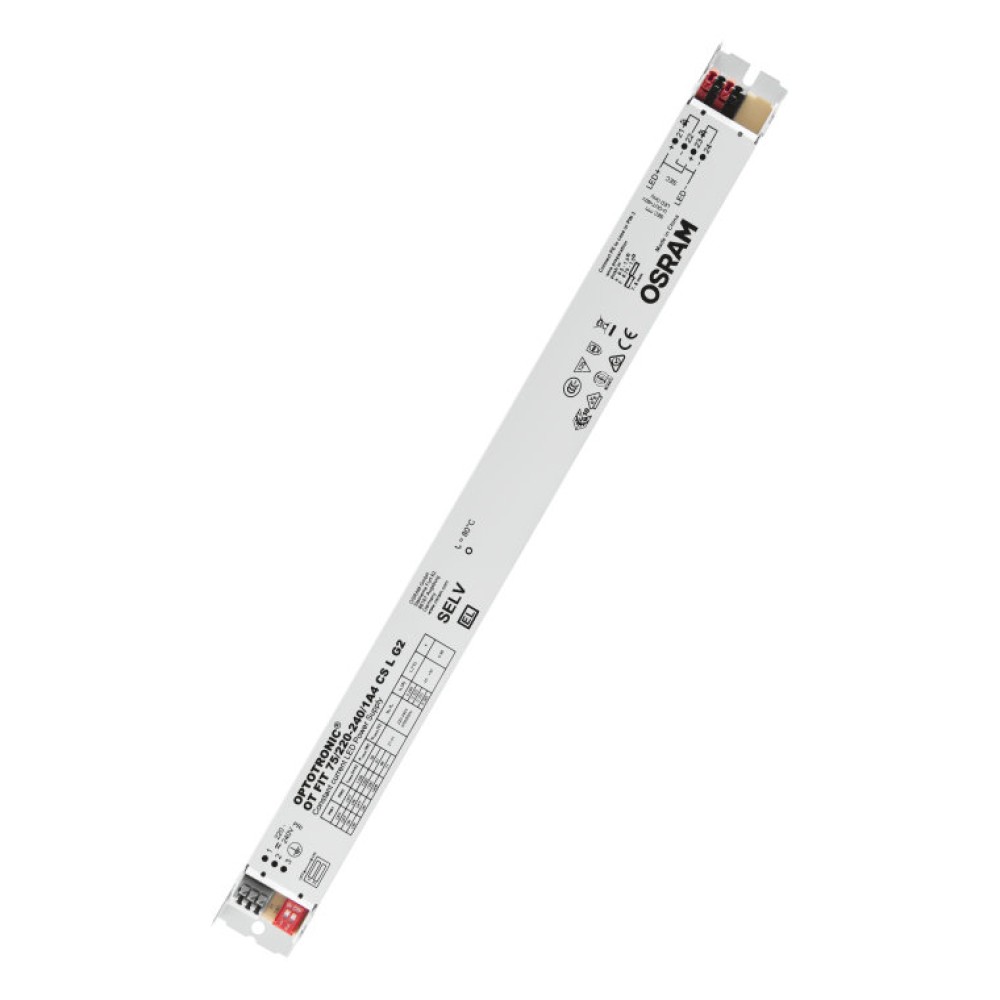

OT FIT 75/220-240/1A4 CS L G2
|
27…51 V | 1100/1200/1300/1400 mA | |

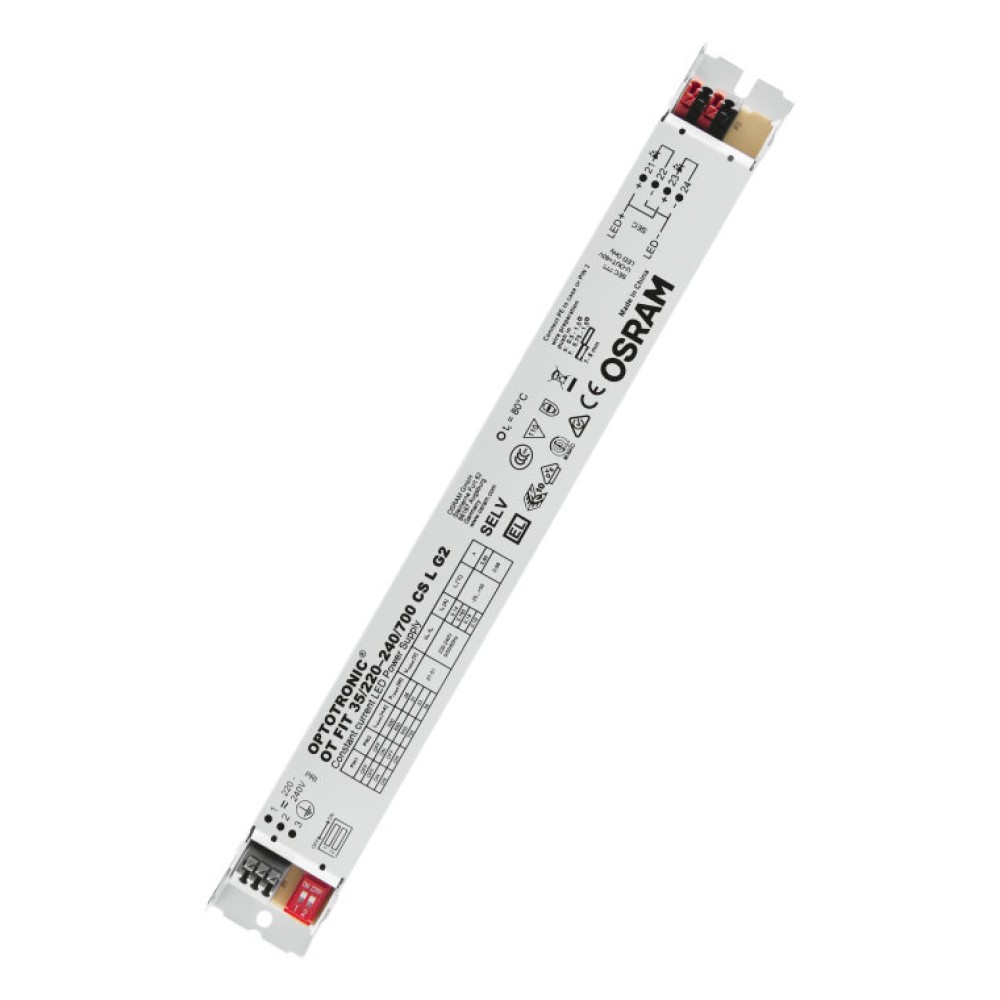

OT FIT 35/220-240/700 CS L G2
|
27…51 V | 500/600/650/700 mA |
