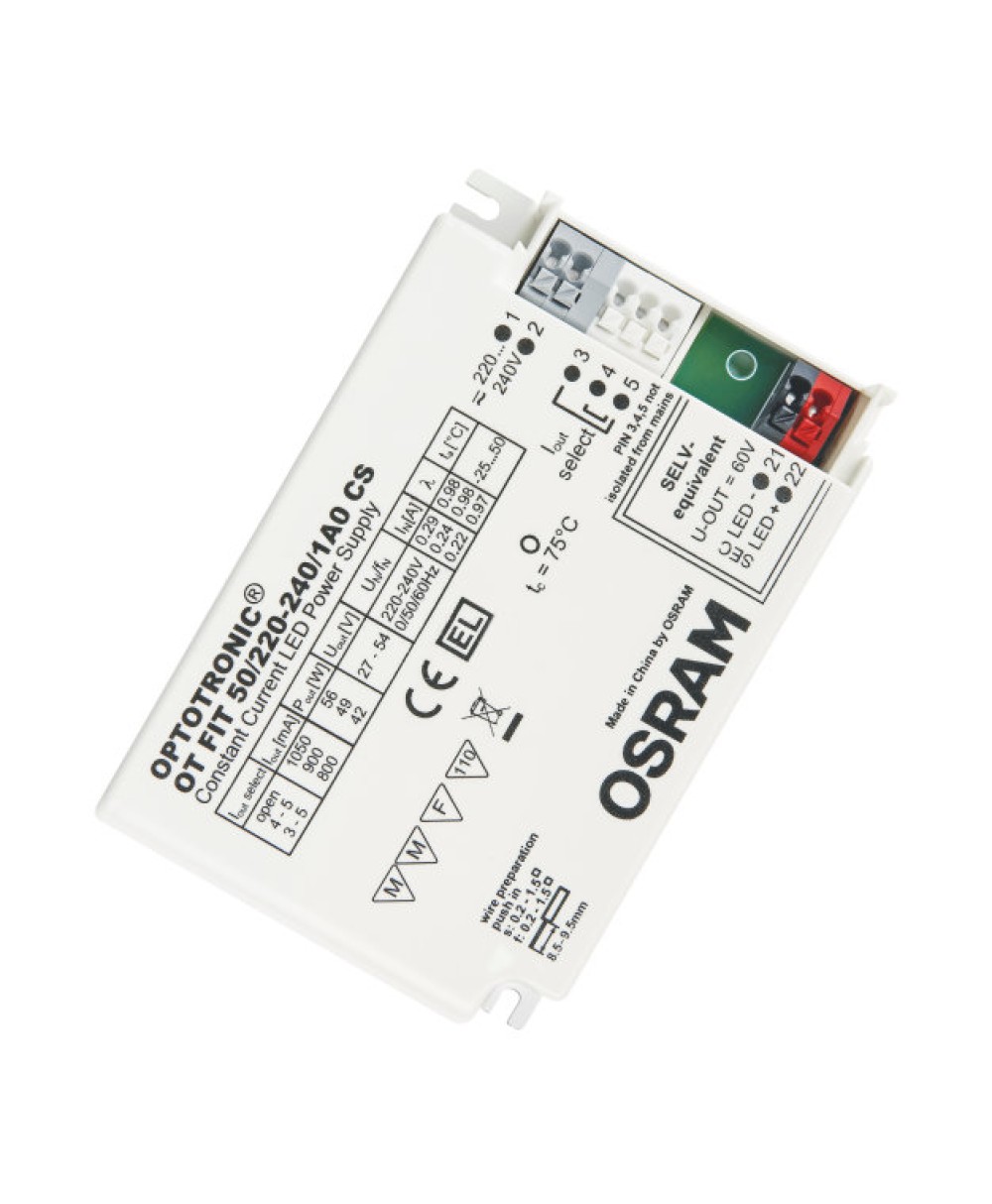

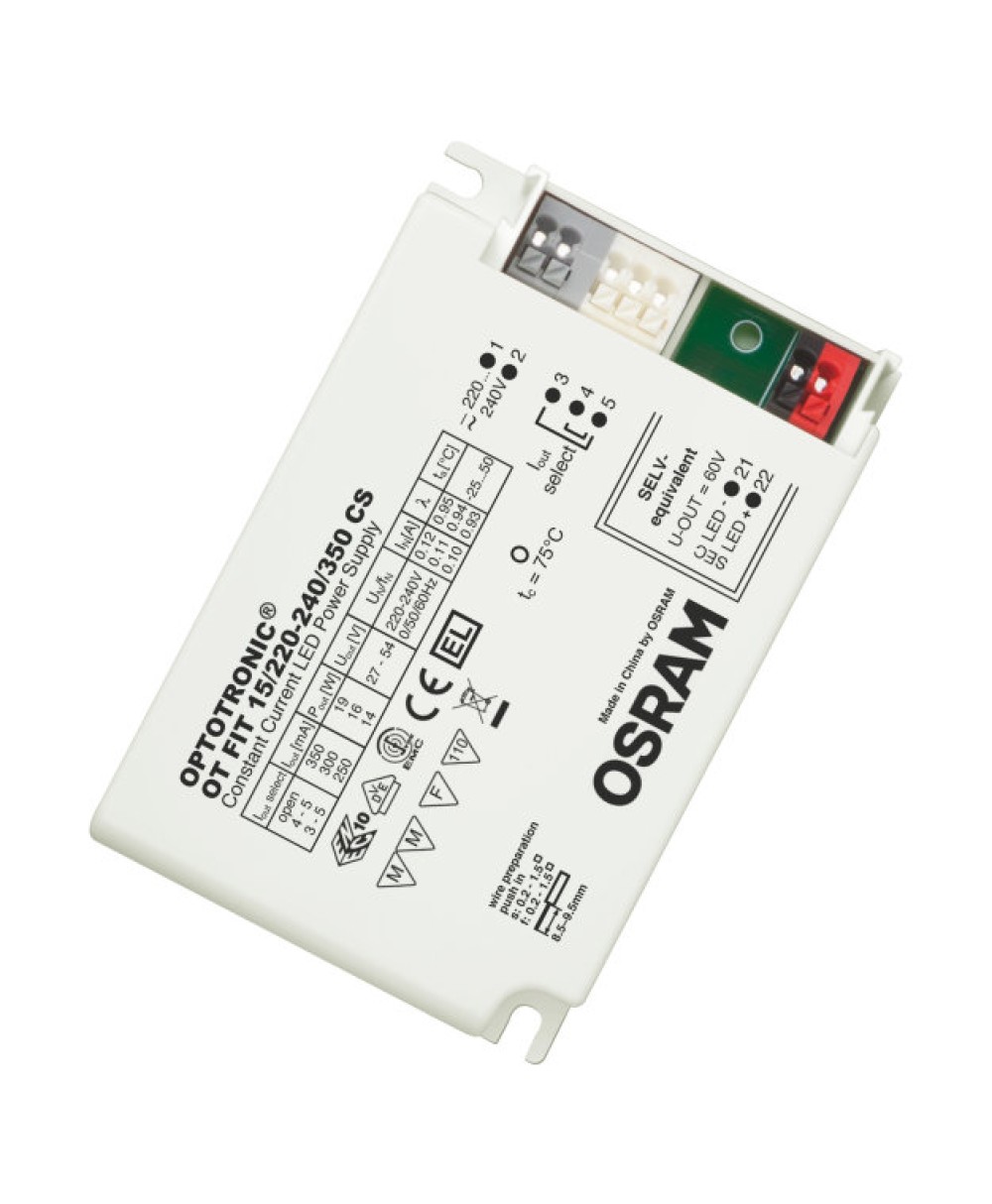

OPTOTRONIC FIT CS G3
EAN: OPTOTRONIC FIT CS G3
Sales unit
Family data sheet
View downloads
- 1 pcs
- Supply voltage: 220…240 V
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Line voltage: 198…264 V
- Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
- RI suppression according to EN 55015:2007+A1:2007/CDN
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- LED protection by Hot Plug
- Independent connection via through-looping (CS version only)
- Versatile scope of application due to output power range of up to 54 W
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
- High efficiency
- Higher quality of light thanks to low output ripple current
- Emergency lighting systems acc. to IEC 61347-2-13, app. J (CS version only)
- Luminaires with flexible current setting (Tri-Tap for CS version only)
- Luminaires with flexible current setting (LEDset for LT2 S version only)
- Suitable for use in emergency lighting systems, DC capable (CS version only)
- Suitable for indoor SELV installations
- Suitable for luminaires of protection classes I and II
- Suitable for downlights, spotlights and LED panels
- Independent mounting via Cable Clamp Kit possible (depending on version of product)
Products
Product | Nominal output voltage | Nominal output current | Data sheet |
![]() |
25…42 / 30…42 V | 800/900/950/1050 mA | |
![]() |
23…42 V | 500/600/650/700 mA | |
![]() |
23…42 V | 250/350/450/500 mA |
