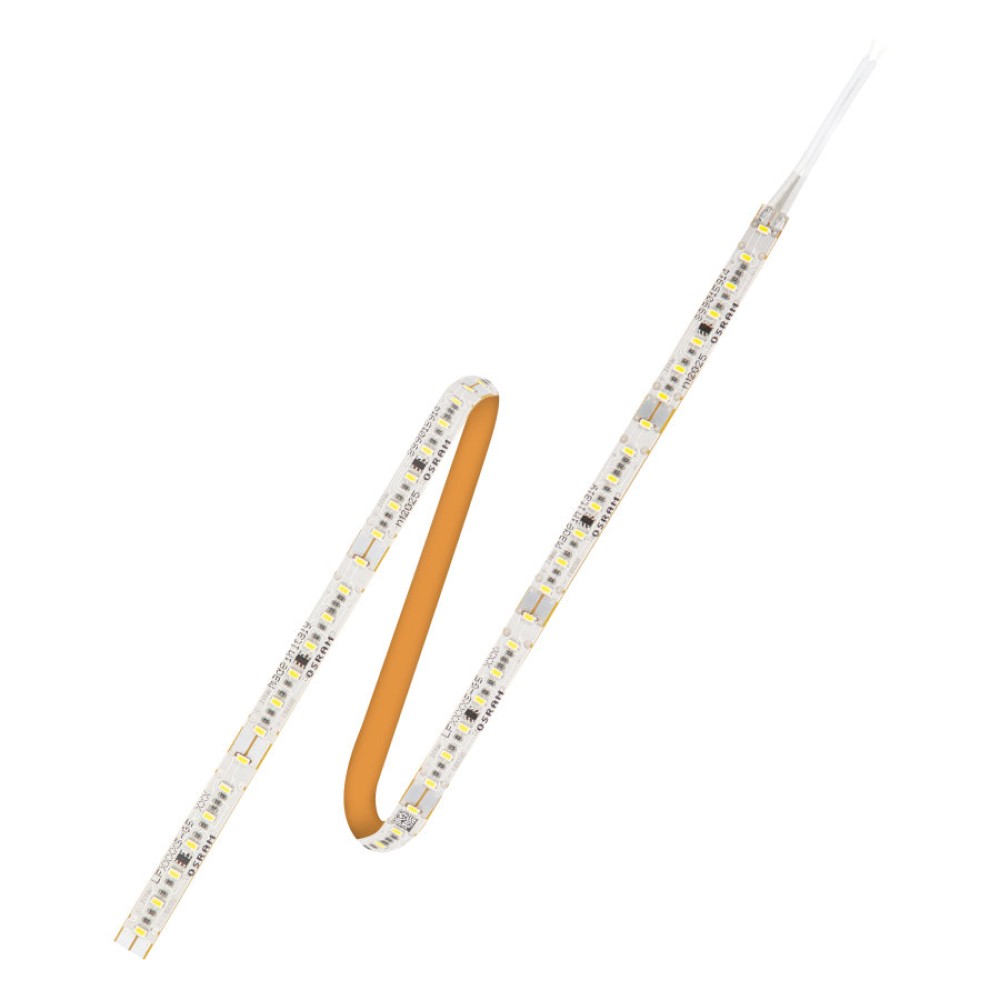

LINEARLIGHT FLEX UNIFORMITY 800S

EAN: LINEARLIGHT FLEX UNIFORMITY 800S

Sales unit
  • Length 10000mm
Product features
  • 24 V LED strips flexible and cuttable, 50 mm cut unit
  • Available variants: 800 lm/m 1200 lm/m 2000 lm/m / CRI Ra: 95+ 90+ and 80+
  • Up to 60,000 h L90/B10 with SDT technology, tested acc. to IEC 62717 on real LED strips
  • Stable light flux over length: active constant current regulators (ICs), PWM safe
  • Fully PWM dimmable from zero up to 2.5 kHz, audible noise free, suitable for quite places
  • Designed, engineered and manufactured and tested in Italy (ISO9001, ISO 17025, ACCREDIA, VDE)
Product benefits
  • Color uniformity better than 2 SDCM on the entire LED strip and between strips
  • Light stability over time typically 1 SDCM, tested acc. to IEC 62717 @ 6,000 h
  • LED lifetime acc.to IES LM-80 and IES TM-21 standards, and also internal OSRAM LAB tests
  • Reliable photometric parameters according to IES LM-79, EN13032-4 and CIE S 025
  • Accurate description of the color rendition of the light source acc. to IES TM-30-15
  • Excellent robustness: single reel manufacturing technology (no solder joints on strip)
  • Vibration-resistant for stationary installations acc. to IEC60068-2-6 and IEC60068-2-64
  • Flicker and stroboscopic effect-free acc. to IEC TR 61547-1 and IEC TR 63158
  • Tested by accredited Product Qualification Lab. ISO9001, ISO 17025, ACCREDIA, VDE
  • Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Family data sheet View downloads

Products

Product Color temperature Color rendering index Ra Luminous flux per meter Data sheet
LINEARlight FLEX Uniformity LF800S -G5-927-10 L2 75W 24V 2700 K 90 800 lm
LINEARlight FLEX Uniformity LF800S -G5-930-10 L2 75W 24V 3000 K 90 800 lm
LINEARlight FLEX Uniformity LF800S -G5-935-10 L2 75W 24V 3500 K 90 800 lm
LINEARlight FLEX Uniformity LF800S -G5-940-10 L2 67W 24V 4000 K 90 800 lm
LINEARlight FLEX Uniformity LF800S -G5-950-10 L2 67W 24V 5000 K 90 800 lm
LINEARlight FLEX Uniformity LF800S -G5-957-10 L2 67W 24V 5700 K 90 800 lm
LINEARlight FLEX Uniformity LF800S -G5-965-10 L2 67W 24V 6500 K 90 800 lm
LINEARlight FLEX Uniformity LF800S -G5-925R-10 L2 83W 24V 2500 K 95 800 lm
LINEARlight FLEX Uniformity LF800S -G5-927R-10 L2 83W 24V 2700 K 95 800 lm
LINEARlight FLEX Uniformity LF800S -G5-930R-10 L2 73W 24V 3000 K 95 800 lm
LINEARlight FLEX Uniformity LF800S -G5-935R-10 L2 73W 24V 3500 K 95 800 lm
LINEARlight FLEX Uniformity LF800S -G5-940R-10 L2 73W 24V 4000 K 95 800 lm
LINEARlight FLEX Uniformity LF800S -G5-950R-10 L2 73W 24V 5000 K 95 800 lm
LINEARlight FLEX Uniformity LF800S -G5-822-10 L2 72,1W 24V 2200 K 80 800 lm
LINEARlight FLEX Uniformity LF800S -G5-825-10 L2 67,1W 24V 2500 K 80 800 lm
LINEARlight FLEX Uniformity LF800S -G5-827-10 L2 63W 24V 2700 K 80 800 lm
LINEARlight FLEX Uniformity LF800S -G5-830-10 L2 60W 24V 3000 K 80 810 lm
LINEARlight FLEX Uniformity LF800S -G5-835-10 L2 60W 24V 3500 K 80 810 lm
LINEARlight FLEX Uniformity LF800S -G5-840-10 L2 60W 24V 4000 K 80 810 lm
LINEARlight FLEX Uniformity LF800S -G5-850-10 L2 60W 24V 5000 K 80 810 lm
LINEARlight FLEX Uniformity LF800S -G5-857-10 L2 60W 24V 5700 K 80 810 lm
LINEARlight FLEX Uniformity LF800S -G5-865-10 L2 60W 24V 6500 K 80 810 lm
LINEARlight FLEX Uniformity LF800S -G5-922-10 L2 90W 24V 2200 K 90 800 lm
LINEARlight FLEX Uniformity LF800S -G5-925-10 L2 80W 24V 2500 K 90 800 lm

Downloads

Data sheets, brochures and technical information
