Products / Flexible Solutions - LED strips for individualized application / Premium LED modules for high-end applications / LINEARlight FLEX Protect / LINEARLIGHT FLEX PROTECT INFINITE

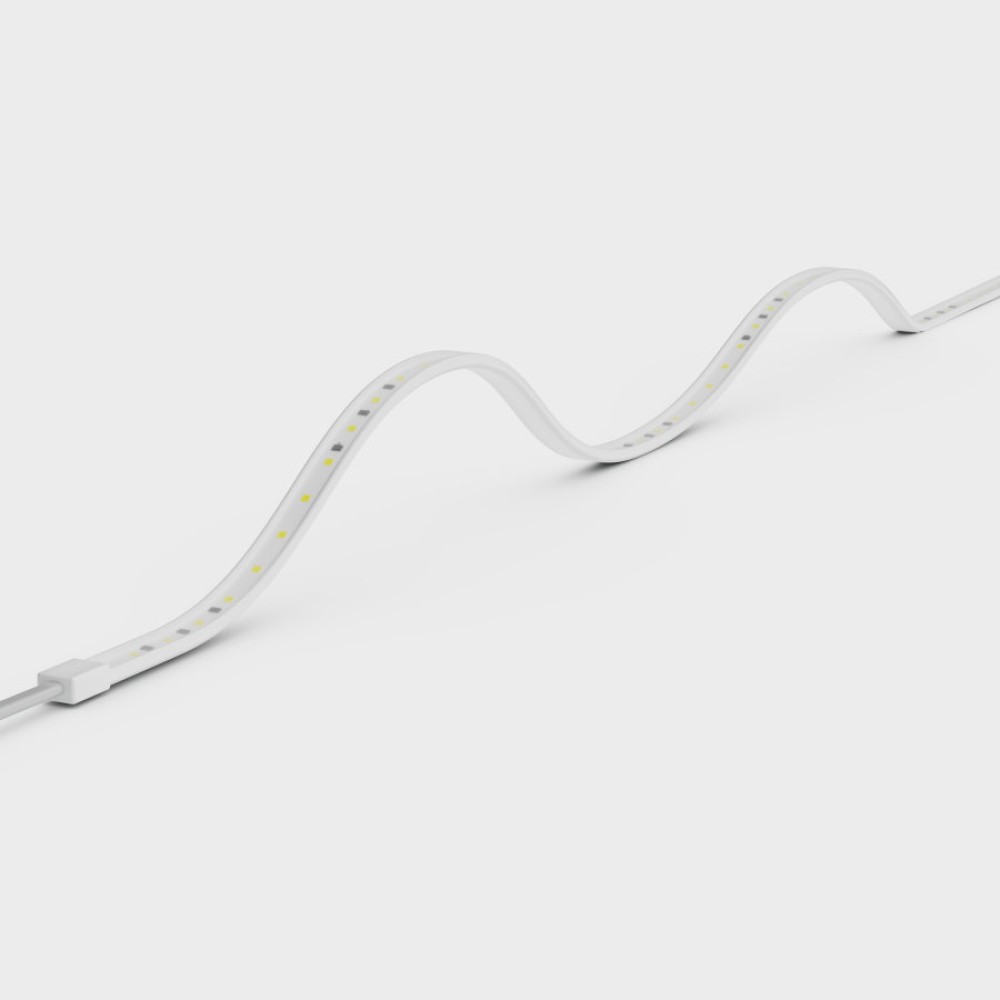

LINEARLIGHT FLEX PROTECT INFINITE

EAN: LINEARLIGHT FLEX PROTECT INFINITE

See all 32 product variations

Sales Unit

Length: 9000 mm

Product Family Benefits

Color uniformity better than 2 SDCM on the entire LED strip and between strips
High luminous flux
Large selection of light colors
Great design freedom thanks to flexibility and cuttability of module
High-performance silicone for extremely long life and flexibility
Extraordinary design and high quality materials
Toolless connection only if using the optional CONNECTsystem
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Pre-wired LED strip, simple and quick plug-and-play installation

Equipment / Accessories

Simplified connection with optional matching CONNECTsystem
Quick installation with optional SLIM TRACK System
Perfectly matched to non-isolated OPTOTRONIC electronic control gears

Family data sheet View downloads

Products

Product	Color rendering index Ra	Color temperature	Luminous flux per meter	Data sheet
LINEARlight FLEX Protect Infinite, LFP1500I-G1 -824-24-06 L1 58.50W 24V	80	2400 K	1250 lm
LINEARlight FLEX Protect Infinite, LFP1500I-G1 -827-24-06 L1 58.50W 24V	80	2700 K	1370 lm
LINEARlight FLEX Protect Infinite, LFP1500I-G1 -830-24-06 L1 58.50W 24V	80	3000 K	1470 lm
LINEARlight FLEX Protect Infinite, LFP1500I-G1 -840-24-06 L1 58.50W 24V	80	4000 K	1570 lm
LINEARlight FLEX Protect Infinite, LFP1500I-G1 -924-24-06 L1 58.50W 24V	90	2400 K	1060 lm
LINEARlight FLEX Protect Infinite, LFP1500I-G1 -927-24-06 L1 58.50W 24V	90	2700 K	1160 lm
LINEARlight FLEX Protect Infinite, LFP1500I-G1 -930-24-06 L1 58.50W 24V	90	3000 K	1270 lm
LINEARlight FLEX Protect Infinite, LFP1500I-G1 -940-24-06 L1 58.50W 24V	90	4000 K	1370 lm
LINEARlight FLEX Protect Infinite, LFP3000I-G1 -824-24-03 L1 58.80W 24V	80	2400 K	2460 lm
LINEARlight FLEX Protect Infinite, LFP3000I-G1 -827-24-03 L1 58.80W 24V	80	2700 K	2720 lm
LINEARlight FLEX Protect Infinite, LFP3000I-G1 -830-24-03 L1 58.80W 24V	80	3000 K	2920 lm
LINEARlight FLEX Protect Infinite, LFP3000I-G1 -840-24-03 L1 58.80W 24V	80	4000 K	3080 lm
LINEARlight FLEX Protect Infinite, LFP3000I-G1 -924-24-03 L1 58.80W 24V	90	2400 K	2100 lm
LINEARlight FLEX Protect Infinite, LFP3000I-G1 -927-24-03 L1 58.80W 24V	90	2700 K	2300 lm
LINEARlight FLEX Protect Infinite, LFP3000I-G1 -930-24-03 L1 58.80W 24V	90	3000 K	2490 lm
LINEARlight FLEX Protect Infinite, LFP3000I-G1 -940-24-03 L1 58.80W 24V	90	4000 K	2700 lm
LINEARlight FLEX Protect Infinite, LFP4000I-G1 -824-24-03 L1 78.00W 24V	80	2400 K	3210 lm
LINEARlight FLEX Protect Infinite, LFP4000I-G1 -827-24-03 L1 78.00W 24V	80	2700 K	3560 lm
LINEARlight FLEX Protect Infinite, LFP4000I-G1 -830-24-03 L1 78.00W 24V	80	3000 K	3220 lm
LINEARlight FLEX Protect Infinite, LFP4000I-G1 -840-24-03 L1 78.00W 24V	80	4000 K	3480 lm
LINEARlight FLEX Protect Infinite, LFP4000I-G1 -924-24-03 L1 78.00W 24V	90	3000 K	3800 lm
LINEARlight FLEX Protect Infinite, LFP4000I-G1 -927-24-03 L1 78.00W 24V	90	4000 K	4000 lm
LINEARlight FLEX Protect Infinite, LFP4000I-G1 -930-24-03 L1 78.00W 24V	90	2400 K	2750 lm
LINEARlight FLEX Protect Infinite, LFP4000I-G1 -940-24-03 L1 78.00W 24V	90	2700 K	3000 lm
LINEARlight FLEX Protect Infinite, LFP500I-G1 -824-24-09 L1 36.00W 24V	80	2400 K	510 lm
LINEARlight FLEX Protect Infinite, LFP500I-G1 -827-24-09 L1 36.00W 24V	80	2700 K	560 lm
LINEARlight FLEX Protect Infinite, LFP500I-G1 -830-24-09 L1 36.00W 24V	80	3000 K	600 lm
LINEARlight FLEX Protect Infinite, LFP500I-G1 -840-24-09 L1 36.00W 24V	80	4000 K	625 lm
LINEARlight FLEX Protect Infinite, LFP500I-G1 -924-24-09 L1 36.00W 24V	90	2400 K	430 lm
LINEARlight FLEX Protect Infinite, LFP500I-G1 -927-24-09 L1 36.00W 24V	90	2700 K	480 lm
LINEARlight FLEX Protect Infinite, LFP500I-G1 -930-24-09 L1 36.00W 24V	90	3000 K	515 lm
LINEARlight FLEX Protect Infinite, LFP500I-G1 -940-24-09 L1 36.00W 24V	90	4000 K	550 lm

Showing 1 to 32 of 32 entries
