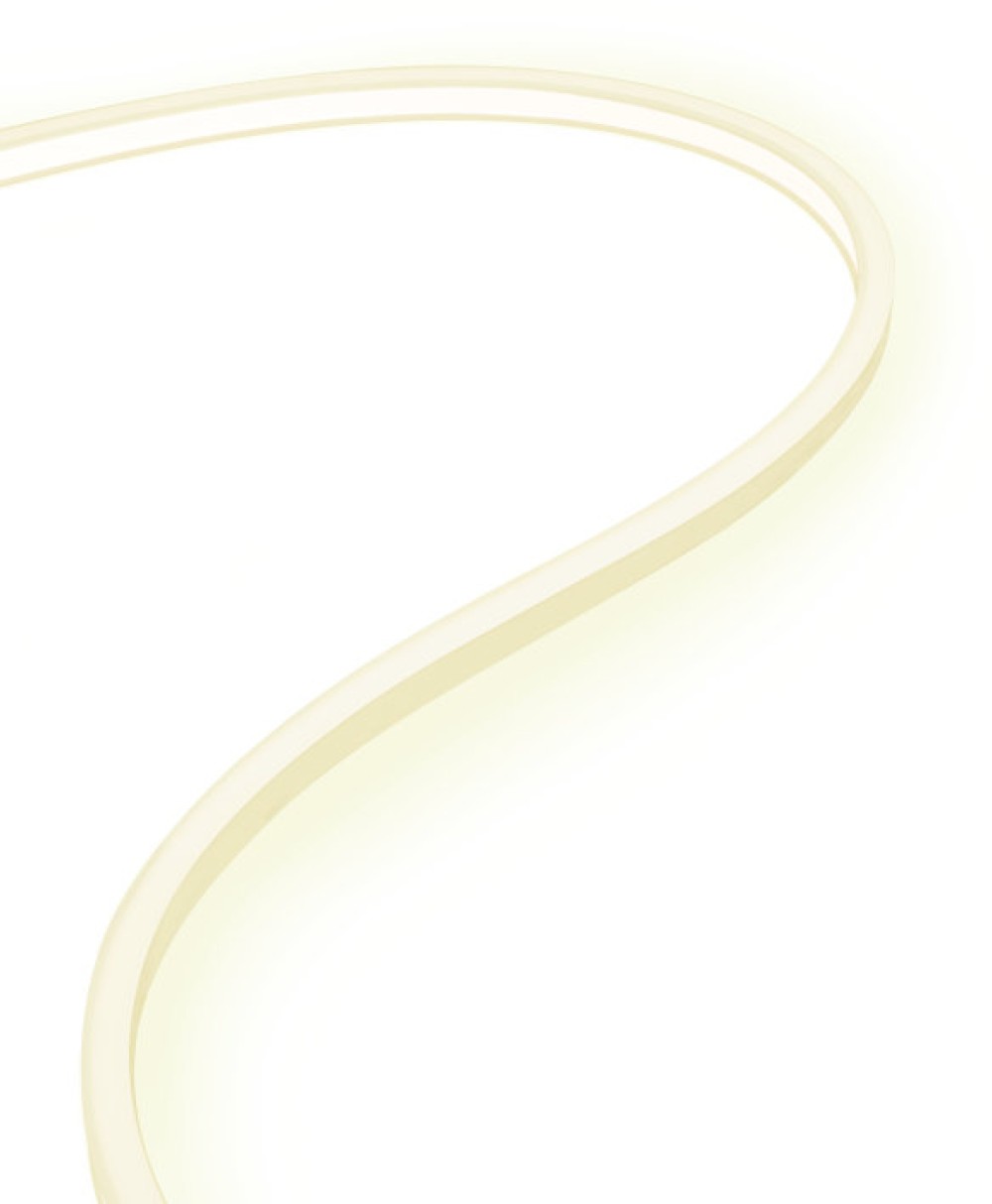

LINEARLIGHT FLEX DIFFUSE TOP WHITE 1300T

EAN: LINEARLIGHT FLEX DIFFUSE TOP WHITE 1300T

Sales unit
  • Length 4000mm
Product features
  • Diffused light lines without visible spots
  • Flexible and cuttable module to support design freedom
  • Long operational length per single power feed possible (up to 6m)
  • Ideal for luminaire designs
  • Extra strong self-adhesive backside for easy mounting
  • 24 V technology for easy dimensioning
  • Recommended in system use with OPTOTRONIC
  • Increased reliability due to single piece reel-to-reel technology
  • Dimmable with PWM technology
Product benefits
  • IP67 protection with high performance silicone
  • Reliable connection over long periods of time: IP67 connector with built-in protection against liquids penetrating through the wires into the LED strip
  • Outdoor use possible: UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity
Areas of application
  • Individual and customized luminaires
  • Organic shaped luminaires
  • Architectural Integration – e.g. coves, walls
  • Object integration – e.g. handrails
  • Signage and illuminated advertising
Family data sheet View downloads

Products

Product Color temp Color rendering index Ra Luminous flux per meter Data sheet
LINEARlight FLEX DIFFUSE Top White, LFD1300T-G1-927-04 71W 24V IP66/67 2780 K ≥80 1350 lm
LINEARlight FLEX DIFFUSE Top White, LFD1300T-G1-930-04 71W 24V IP66/68 3020 K ≥80 1350 lm
LINEARlight FLEX DIFFUSE Top White, LFD1300T-G1-935-04 71W 24V IP66/69 3365 K ≥80 1350 lm
LINEARlight FLEX DIFFUSE Top White, LFD1300T-G1-940-04 71W 24V IP66/70 4390 K ≥80 1350 lm
LINEARlight FLEX DIFFUSE Top White, LFD1300T-G1-965-04 71W 24V IP66/71 8030 K ≥80 1250 lm
LINEARlight FLEX DIFFUSE Top White LFD1300T-G2-835-04 210W 24V IP66/IP67 3500 K ≥80 1550 lm
LINEARlight FLEX DIFFUSE Top White LFD1300T-G2-840-04 210W 24V IP66/IP67 4000 K ≥80 1550 lm
LINEARlight FLEX DIFFUSE Top White LFD1300T-G2-865-04 210W 24V IP66/IP67 6500 K ≥80 1400 lm
LINEARlight FLEX DIFFUSE Top White LFD1300T-G2-927-04 210W 24V IP66/IP67 2700 K ≥90 1340 lm
LINEARlight FLEX DIFFUSE Top White LFD1300T-G2-930-04 210W 24V IP66/IP67 3000 K ≥90 1340 lm
LINEARlight FLEX DIFFUSE Top White LFD1300T-G2-935-04 210W 24V IP66/IP67 3500 K ≥90 1340 lm
LINEARlight FLEX DIFFUSE Top White LFD1300T-G2-940-04 210W 24V IP66/IP67 4000 K ≥90 1340 lm
LINEARlight FLEX DIFFUSE Top White LFD1300T-G2-965-04 210W 24V IP66/IP67 6500 K ≥90 1250 lm
LINEARlight FLEX DIFFUSE Top White LFD1300T-G2-824-04 210W 24V IP66/IP67 2400 K ≥80 1350 lm
LINEARlight FLEX DIFFUSE Top White LFD1300T-G2-827-04 210W 24V IP66/IP67 2700 K ≥80 1500 lm
LINEARlight FLEX DIFFUSE Top White LFD1300T-G2-830-04 210W 24V IP66/IP67 3000 K ≥80 1500 lm

Downloads

Data sheets, brochures and technical information
