ICUTRONIC INTELLIGENT – DALI (NON-ISOLATED)
EAN: ICUTRONIC INTELLIGENT – DALI (NON-ISOLATED)
.jpg)
Sales unit
Family data sheet
View downloads
- 1 pcs
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Output power: 25 W
- Supply voltage: 220…240 V
- Available with output current range: up to 300 mA
- Non-isolated drivers
- Versatile non-isolated DALI driver up to 75 W due to flexible output characteristic
- Fully programmable via software (DALI Interface)
- Flexible current setting (Rset)
- Lifetime: up to 100,000 h (temperature at T c = 65 °C, max. 10 % failure rate)
- High-quality dimming of 10…100 % by amplitude dimming
- No TouchDIM nor Corridor Function
- High quality of light thanks to < 0.25 W
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
- Linear and area lighting
- Industry lighting
- Suitable for luminaires of protection class I
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |

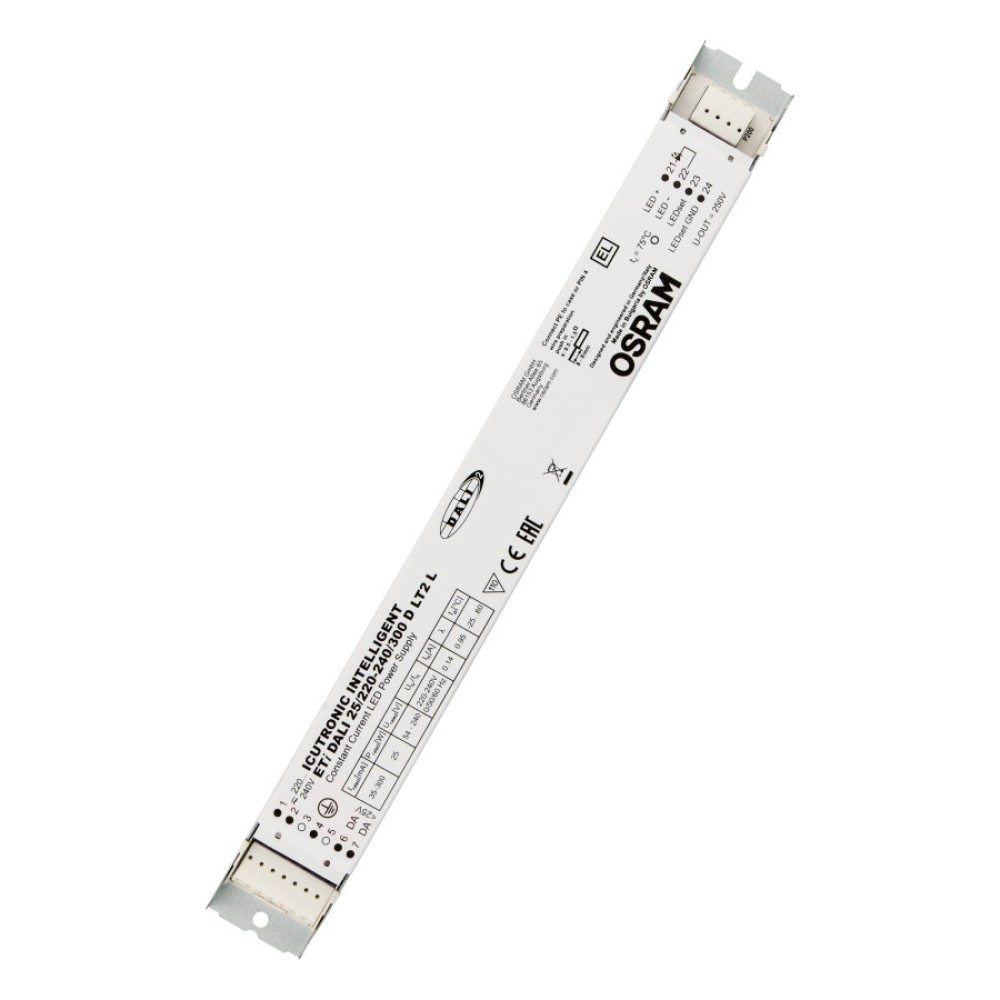

ETi DALI 25/220-240/300 D LT2 L
|
54…240 V | 35…300 mA | |
ETi DALI 35/220-240/400 D LT2 L
|
54…240 V | 75…400 mA | |

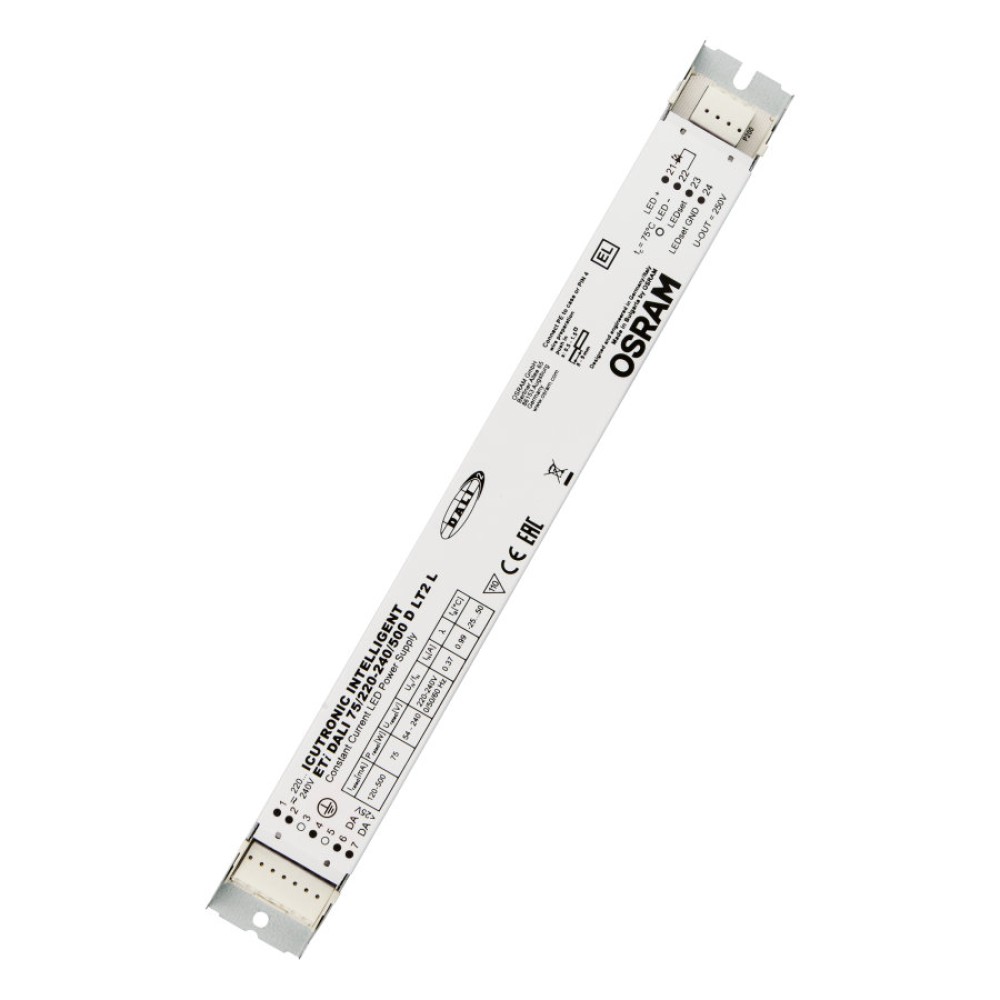

ETi DALI 75/220-240/500 D LT2 L
|
54…240 V | 120…500 mA |
