ELEMENT EM FIT SELV
EAN: ELEMENT EM FIT SELV
Sales unit
View downloads
- 1 pcs
- Line frequency: 50 Hz | 60 Hz
- Supply voltage: 220…240 V
- Lifetime: up to 50,000 h (temperature at Tc max. = -10 °C, max 10% failure rate)
- Wide output voltage range
- Fixed output (no dimming)
- SELV driver
- Small housing design
- Flexible current setting (DIPswitch – 4 currents)
- High efficiency and reliability
- Enhanced safety due to overload, overtemperature, short-circuit protection
- High light quality due to low ripple current
- Long lasting and high reliability
- Linear and area lighting
- Shop lighting
- Offices, Public buildings, Supermarkets
- Industry lighting
- Suitable for luminaires of protection class I and II
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |
EM FIT 18/220-240/350 CS L
|
27...51 V | 200 / 250 / 300 / 350 mA | |

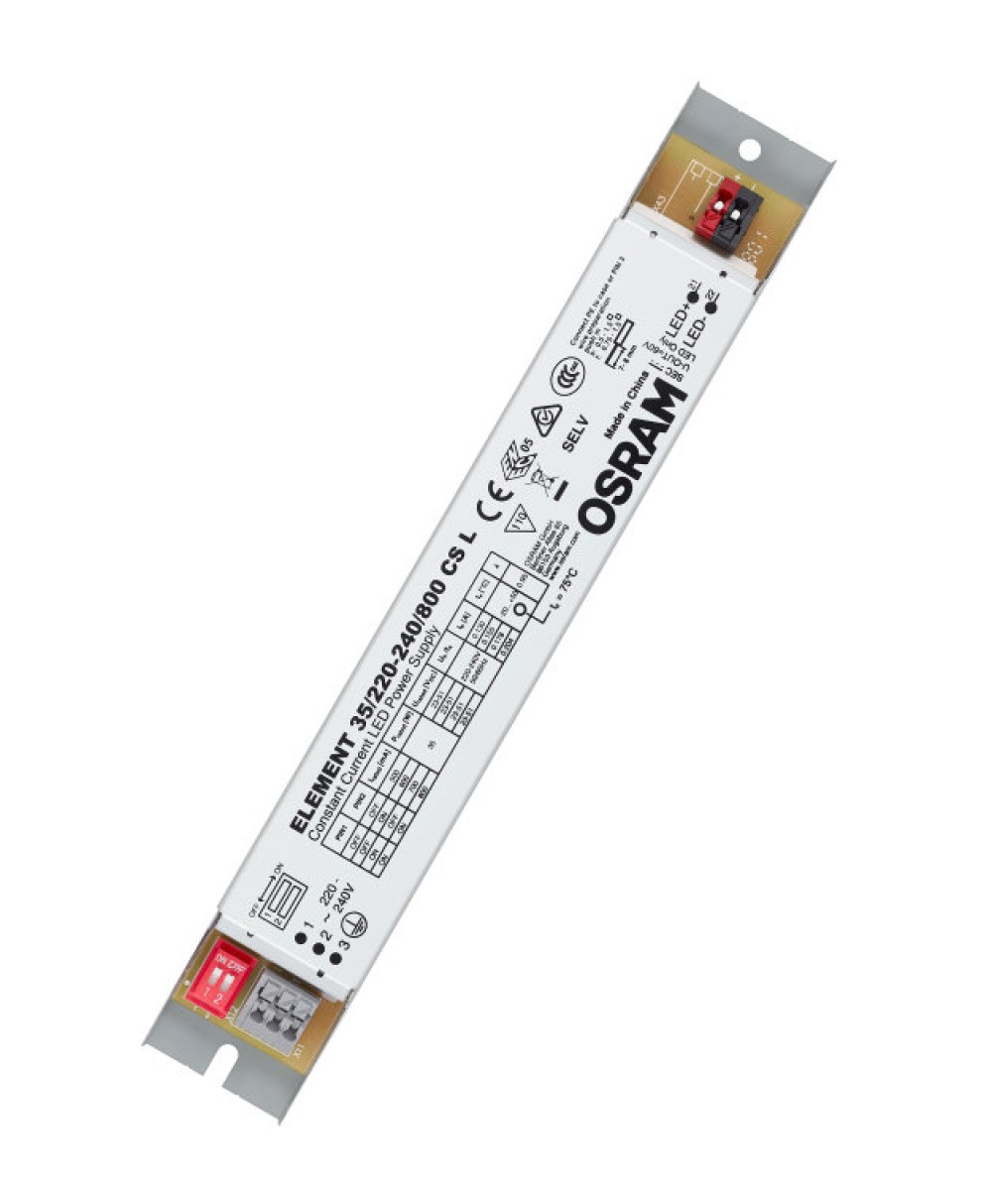

EM FIT 40/220-240/800 CS L
|
27...51 V | 500 / 600 / 700 / 800 mA | |
EM FIT 60/220-240/1200 CS L
|
27...51 V | 900 / 1050 / 1100 / 1200 mA | |
EM FIT 75/220-240/1600 CS L
|
27...51 V | 1300 / 1400 / 1500 / 1600 mA |
