BACKLED MINI M PLUS G4
EAN: BACKLED MINI M PLUS G4
Sales unit
Family data sheet
View downloads

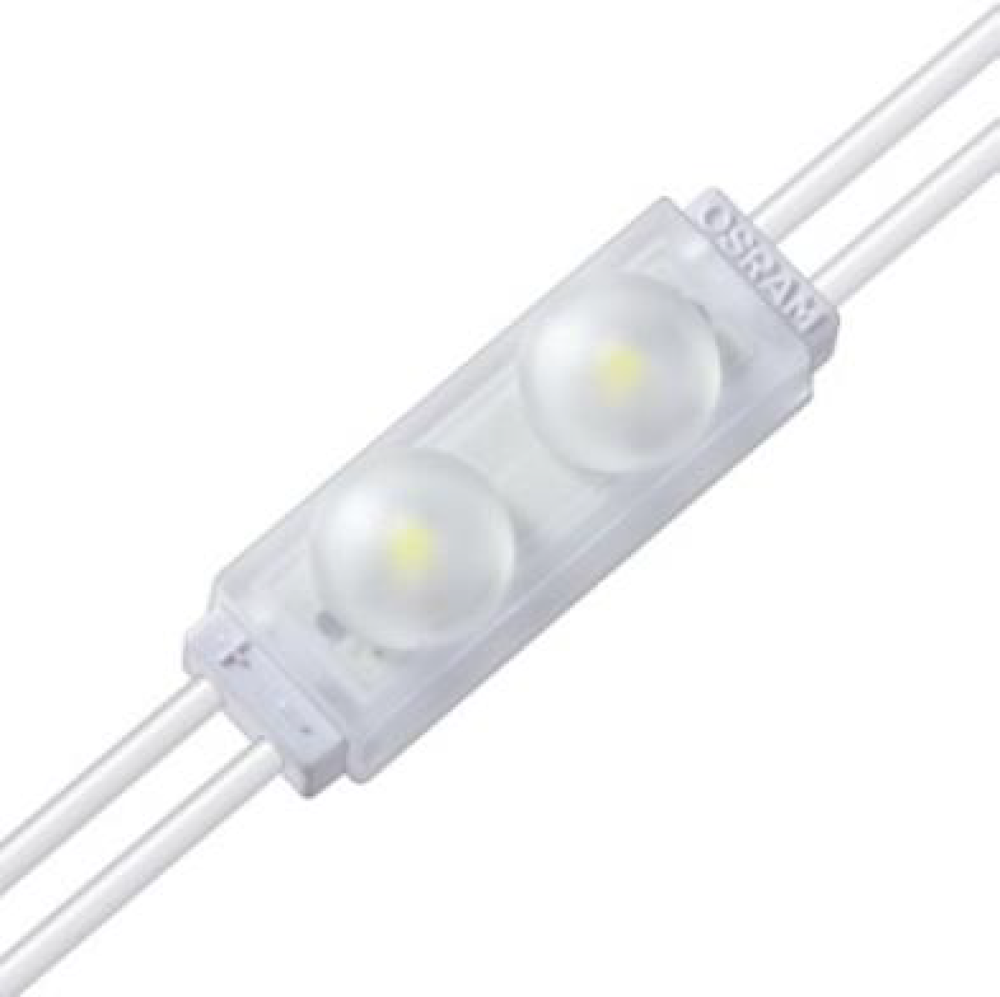

- LED chain comprising 40 LED modules connected by flexible cables
- Uniform illumination in narrow channels thanks to Oval Lens Technology
- PCB and LEDs are protected inside a complete overmolded IP66 housing
- CRI >80 and 3SDCM
- Large CCT choice
- Very long life time and 5 years guarantee
- Backlighting of thin and flat light boxes
- Permanent outdoor use in enclosed light boxes or channel letters
Products
| Product | Color rendering index Ra | Color temperature | Luminous flux | Data sheet |
BackLED Mini M CP, BA-Mini-M-CP 865 G4 28,8W 12V
|
80 | 6500 K | 79 lm | |
BackLED Mini M CP, BA-Mini-M-CP 871 G4 28,8W 12V
|
80 | 7100 K | 79 lm | |
BackLED Mini M CP, BA-Mini-M-CP 830 G4 28,8W 12V
|
80 | 3000 K | 72 lm | |
BackLED Mini M CP, BA-Mini-M-CP 840 G4 28,8W 12V
|
80 | 4000 K | 79 lm | |
BackLED Mini M CP, BA-Mini-M-CP 810 G4 28,8W 12V
|
80 | 10000 K | 72 lm |
