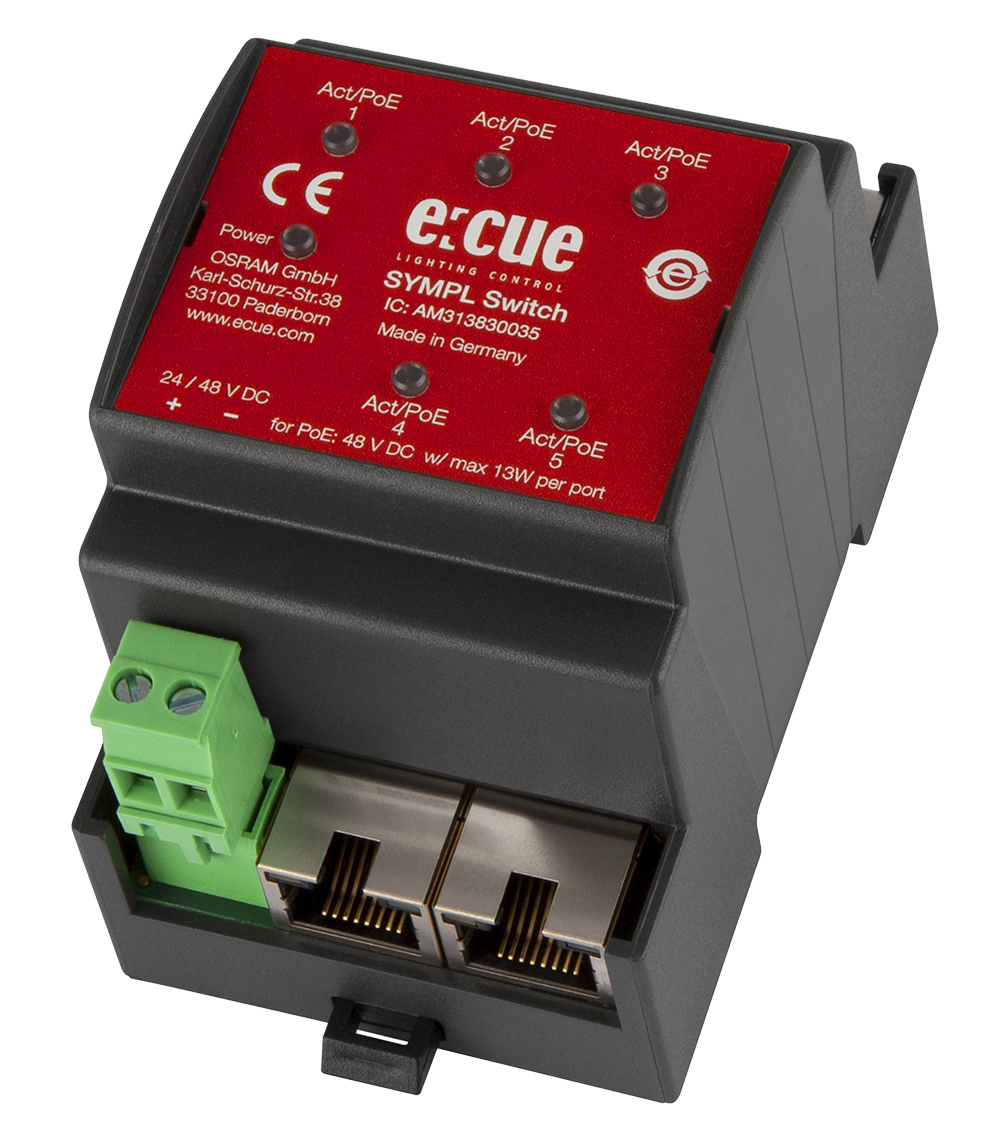

SYMPL Switch
EAN AM313830035
The SYMPL Switch is a designed Ethernet switch for up to 5 devices.
- Five Ethernet ports
- Power over Ethernet (PoE) for all ports
- Flexible mounting on 35 mm DIN rails or vertical surfaces
The SYMPL Switch is a designed Ethernet switch for up to 5 devices. It features PoE to power the connected devices over Ethernet, so connected devices do not need an additional power supply. The SYMPL Switch itself is powered by an external power supply.
| Dimensions (W x H x D) | 53.5 x 90.5 x 62 mm (excl. fastening clip) |
| Weight | 80 g |
| Power Supply | 24 V DC (terminal plug), or for PoE: 48 VDC only |
| Power Consumption | 2 W (no PoE powered devices connected) |
| Operating Temperature | 0 … 55 °C |
| Storage Temperature | -10 … 70 °C |
| Protection Class | IP20 |
| Mounting | 35 mm DIN rail (EN 60715) or key hole on vertical surface |
| Certification | CE, ETL, UKCA |
| Interface | 5 x Ethernet 10/100 Mbit/s, RJ45 |
| PoE-Ports | PoE Mode B (over spare wires) per IEEE802.3af, not galvanically isolated from Ethernet data, Pmax = 13 W per PoE Port |
