SYMPL relay Node
EAN AB444190035

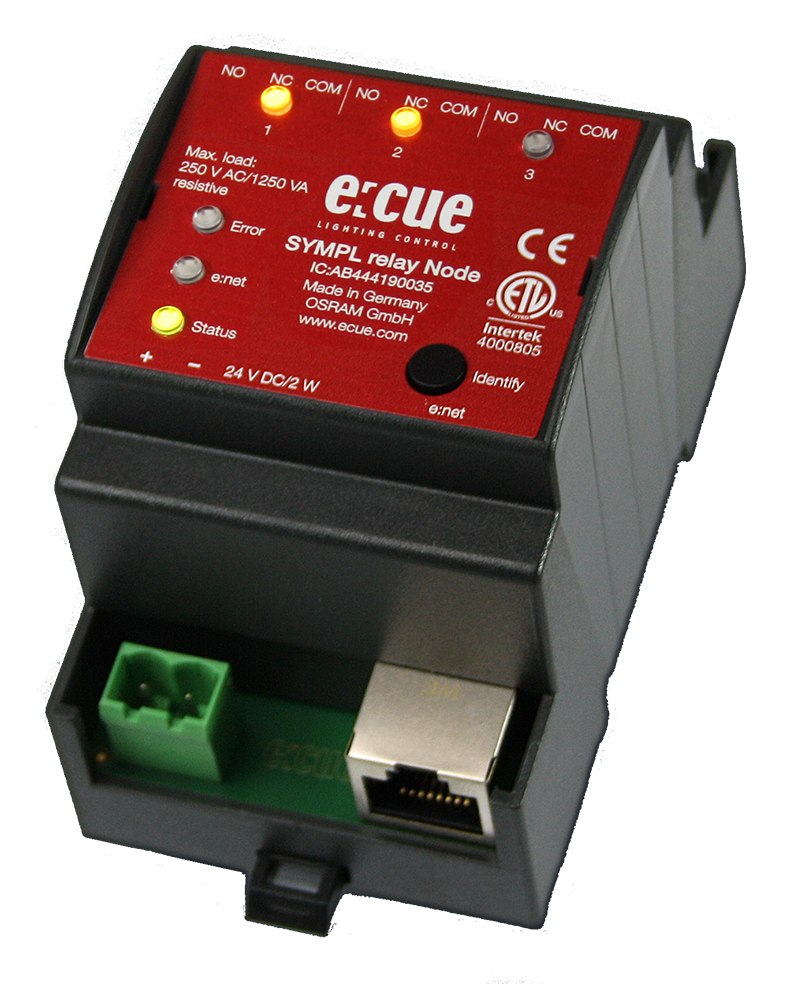

The e:cue SYMPL relay Node is a switching interface which can be used with e:cue’s lighting control software SYMPHOLIGHT.
- Three relay outputs SPDT for up to 5 A/250 V AC or 3 A/30 V DC
- Flexible mounting onto 35 mm DIN rails or vertical surfaces
- Simple and easy integration into e:cue SYMPHOLIGHT
- Separate webinterface for configuration
The e:cue SYMPL relay Node is a switching interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides three relay outputs in single-pole / double-throw configuration. Supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). Easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface.
| Dimensions (W x H x D) | 53.5 x 90.5 x 62 mm (excl. fastening clip) |
| Weight | 125 g |
| Power Supply | 24 V DC (terminal plug) or PoE IEEE 802.3af on RJ45 |
| Power Consumption | 2.8 W |
| Operating Temperature | 0 … 50 °C |
| Storage Temperature | -10 … 70 °C |
| Protection Class | IP20 |
| Mounting | 35 mm DIN rail (EN 60715), 3 units, or key hole on vertical surface |
| Certification | CE, ETL, UKCA |
| Interface | 3 x SPDT relays on 3-pin terminal plug |
| Interface Specifications | UL: 3 A @ 250 V AC / 3 A @ 30 V DC; VDE: 5 A @ 250 V AC (resistive) / 2 A @ 250 V AC cos(phi)=0.5 |
| Ethernet-Port | 1 x e:net 10/100 Mbit/s, RJ-45 |
