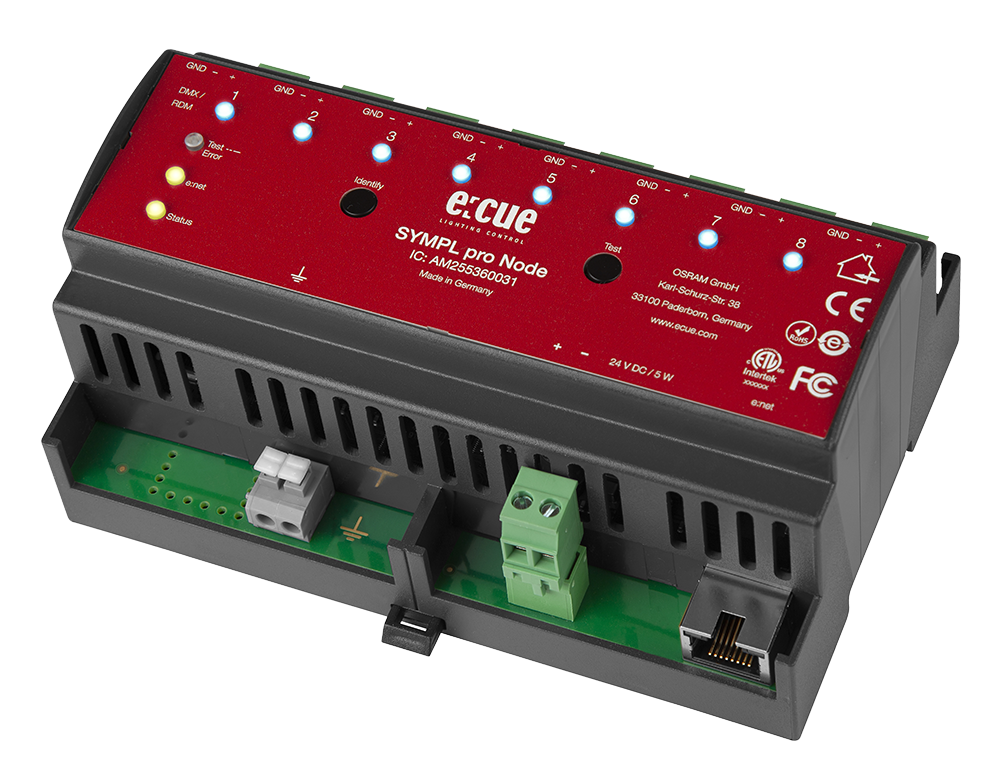

SYMPL pro Node
EAN AM255360031
The smart DMX/RDM controller for state-of-the-art lighting control projects has been specifically designed with tough outdoor environments in mind.
- 8 outputs for DMX512/RDM or e:pix or m:pix (dependent on model)
- Highly isolated outputs
- Integrated protection against surge (Level 3)
- Protection against miswiring
- Extended operating temperature -40 … 70°C*
- Embedded temperature & humidity sensors
- Reverse polarity protection
- Backup-mode on data loss
- Power-over-Ethernet
- Test mode access via button
The SYMPL pro Node is an eight-channel DMX / e:pix / m:pix and RDM interface for use with e:cue’s lighting control solution SYMPHOLIGHT. It provides eight independent DMX/RDM interfaces for eight DMX512 universes with 4096 channels. Also available as e:pix version (16384 channels, IC AM305690031) and m:pix version (12288 channels, IC CL24100000435). Especially designed for projects in tough outdoor environments. Connection to the server runs via Ethernet interface with 100 Mbit/s; powered by an external power supply or via Power-over-Ethernet.
| Dimensions (W x H x D) | 143 x 92 x 62 mm (excl. fastening clip) |
| Weight | 250 g |
| Power Supply | 24 … 48 V DC (terminal plug), reverse polarity protection, or PoE IEEE 802.3af |
| Power Consumption | Max. 8 W (incl. DMX termination) |
| Operating Temperature | -40 … 70 °C (70°C max. 1h/day, continuous max. 60°C) |
| Storage Temperature | -40 … 70 °C |
| Protection Class | IP20 |
| Mounting | 35 mm DIN rail (EN 60715) or key hole on vertical surface |
| Certification | CE, ETL, UKCA |
| Interface | 8 x DMX512, isolated in pairs, surge protection, 3-pin terminal plug |
| Ethernet-Port | 1 x e:net 10/100 Mbit/s, RJ-45, surge protection |
| Sensors | Temperature -40 … 120 ±°C (0.2 °C); Humidity 0 … 100% (±2%) |
