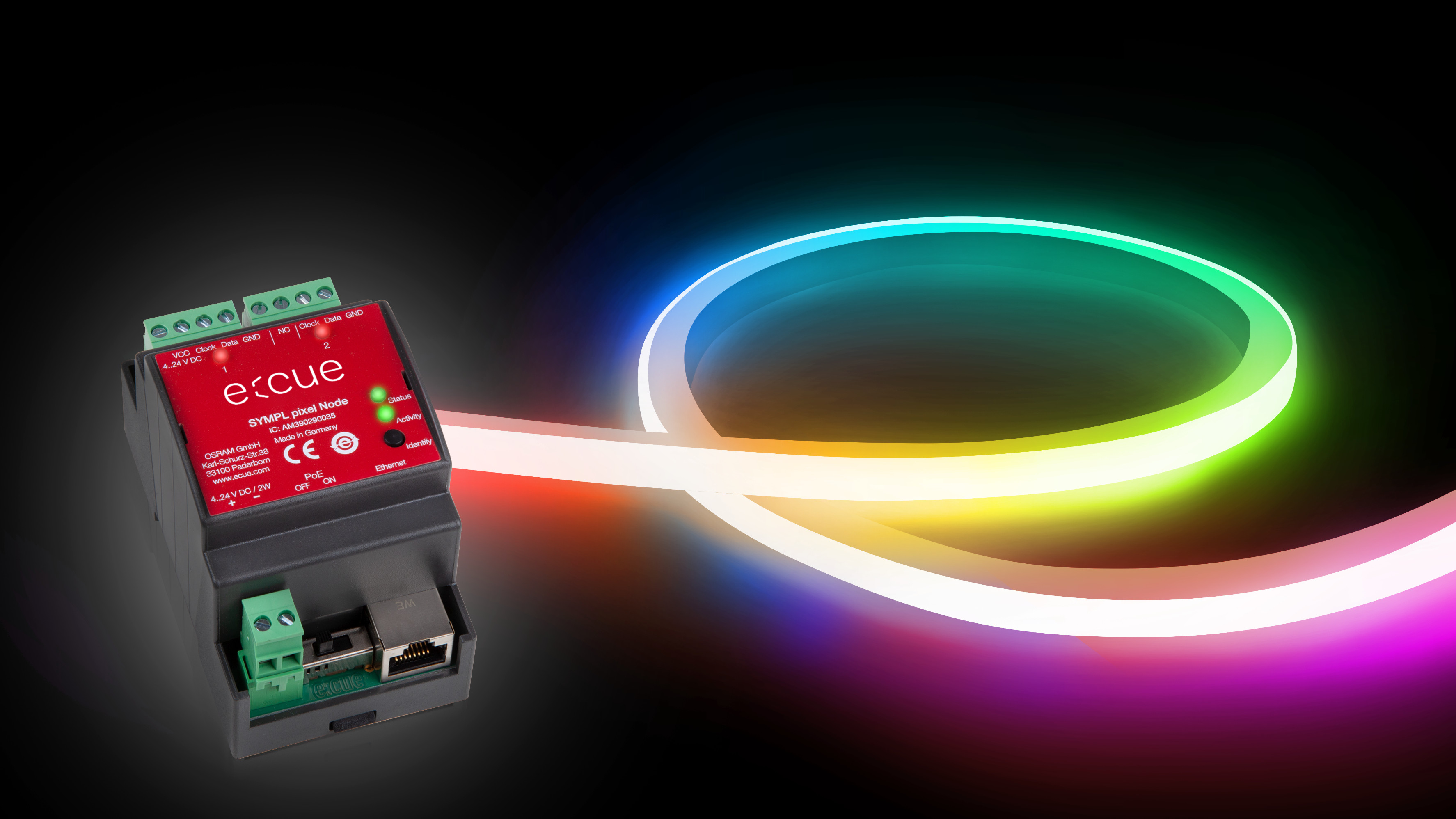

SYMPL pixel Node

The SYMPL pixel Node is an LED pixel controller which supports various serial addressable LED pixel products like strips, dots and boards with individually controllable pixels.

• e:net to serial addressable LED pixel interface, with 2 outputs
• Outputs a wide range of asynchronous and synchronous (SPI) protocols
• Controls up to 2048 pixel channels per output (= 682 RGB or 512 RGBW pixels)
• Supports 512 DMX channels per output (= 170 RGB pixels)
• Powered 3 ways: external PSU, PoE, or directly from the connected fixture
• Optional Pixel Range Extender increases distance up to 300 m
• Simple and easy integration in e:cue SYMPHOLIGHT
• Web interface for status and configuration

The SYMPL pixel Node is an LED pixel controller which supports various serial addressable LED pixel products like strips, dots and boards with individually controllable pixels. It can control a wide range of asynchronous and synchronous protocols (SPI). The SYMPL pixel Node comes with two pixel outputs with screw terminals, each configurable to a separate pixel protocol. Up to 2 x 2048 channels (=4096 total, = 1364 RGB pixels) are supported, with distances up to 300 m possible using the optional Pixel Range Extender.
