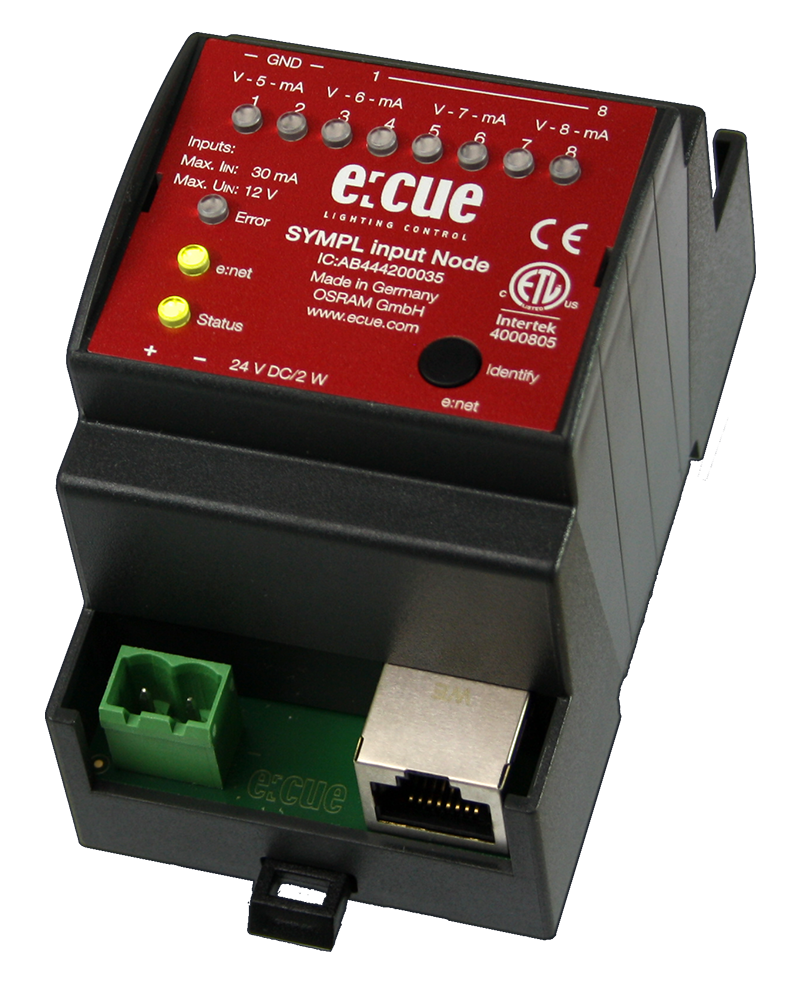

SYMPL input Node
EAN AB444200035
The e:cue SYMPL input Node is an eight-channel analog input interface which can be used with e:cue’s lighting control software SYMPHOLIGHT.
- Eight analog inputs for 0 ... 10 V
- Four inputs switchable to 0 ... 20 mA input
- Input configuration with a slide switch
- Flexible mounting onto 35 mm DIN rails or vertical surfaces
- Simple and easy integration into e:cue SYMPHOLIGHT
- Separate webinterface for configuration
The e:cue SYMPL input Node is an eight-channel analog input interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides eight independent analog 10 V inputs, four of which also support a 20 mA constant current input, configurable via a slide switch. Supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). Easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface.
| Dimensions (W x H x D) | 53.5 x 90.5 x 62 mm (excl. fastening clip) |
| Weight | 100 g |
| Power Supply | 24 V DC (terminal plug) or PoE IEEE 802.3af on RJ-45 |
| Power Consumption | 1.2 W |
| Operating Temperature | 0 … 50 °C |
| Storage Temperature | -10 … 70 °C |
| Protection Class | IP20 |
| Mounting | 35 mm DIN rail (EN 60715), 3 units, or key hole on vertical surface |
| Certification | CE, ETL, UKCA |
| Interface | 8 x analog inputs 0 … 10 V, 4 switchable to 0 … 20 mA, common ground connector, terminal plug row |
| Interface Specifications | Max. input voltage 12 V DC; max. input current 30 mA; input impedance 10 V 40 kΩ, 20 mA 150 Ω |
| Ethernet-Port | 1 x e:net/ethernet 10/100 Mbit/s, RJ-45 |
