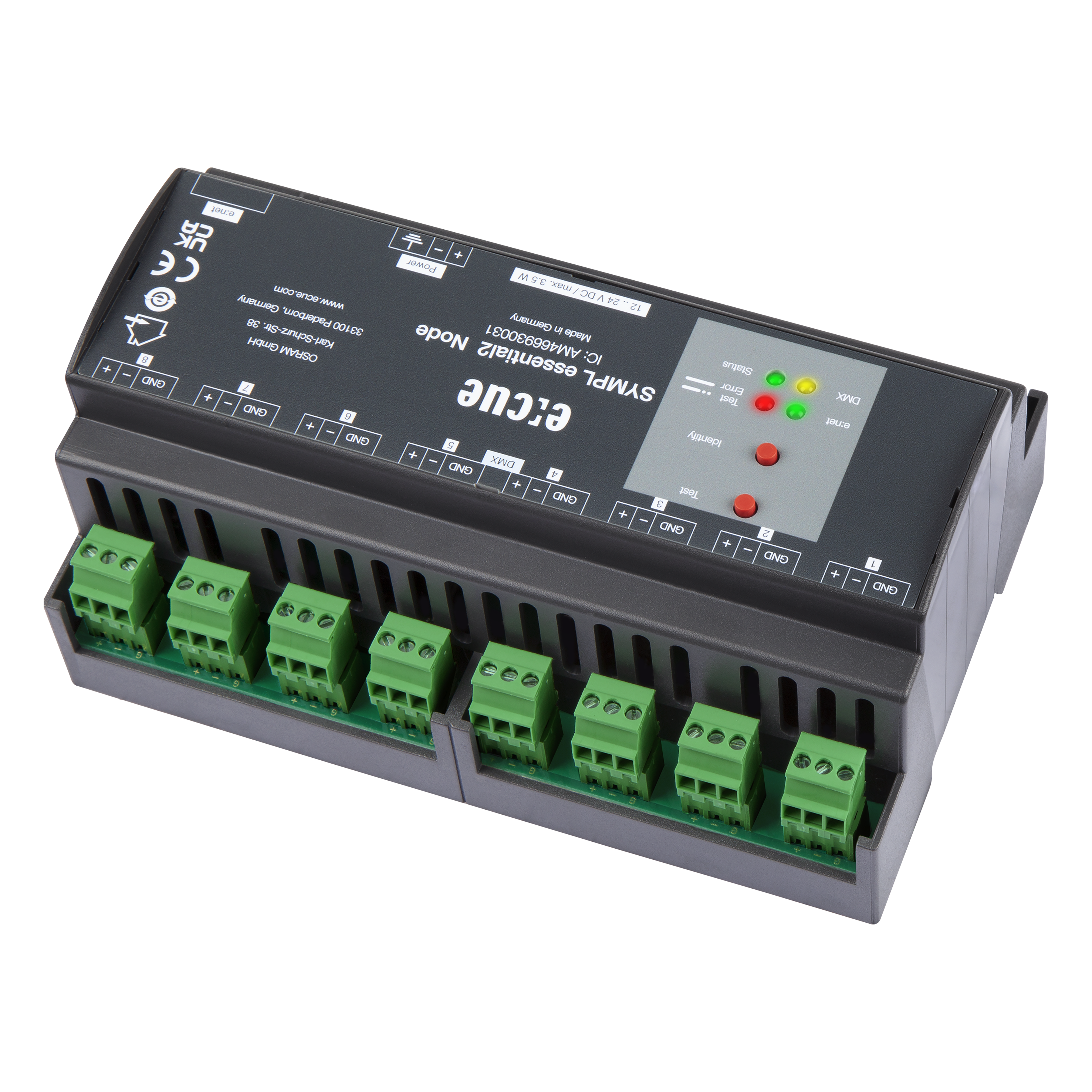

SYMPL essential2 Node
EAN AM466930031
The new smart DMX controller for state-of-the-art lighting control projects has been specifically designed with tough outdoor environments in mind.
- 8 ports (universes) for DMX512
- Integrated protection against surge (Level 3)
- Power-over-Ethernet
- High operating temperature: -30 ... 55 °C
- Isolated DMX outputs
- Surge protection (DMX side)
- Reverse polarity protection
- Test mode via button and web interface
The SYMPL essential2 Node is an eight-channel DMX interface for use with e:cue’s lighting control solutions SYMPHOLIGHT and LAS. It provides interfaces for up to 4096 DMX channels split into 8 universes with 512 channels each. The SYMPL essential2 Node can be powered by an external power supply or via Power-over-Ethernet (PoE). It is easily mounted on standard 35 mm DIN rails, or with key holes in the housing base.
| Dimensions (W x H x D) | 143 x 92 x 62 mm (excl. fastening clip) |
| Weight | 250 g |
| Power Supply | 12 … 24 V DC (terminal plug), reverse polarity protection, or PoE IEEE 802.3af |
| Power Consumption | Max. 3.5 W (incl. DMX termination) |
| Operating Temperature | -30 … 55 °C |
| Storage Temperature | -40 … 70 °C |
| Protection Class | IP20 |
| Mounting | 35 mm DIN rail (EN 60715) or key hole on vertical surface |
| Certification | CE, UKCA |
| Output interfaces | 8 x DMX512, short circuit protected, isolated in pairs, surge protection, 3-pin terminal plug |
| Ethernet-Port | 1 x e:net 10/100 Mbit/s, RJ-45 |
