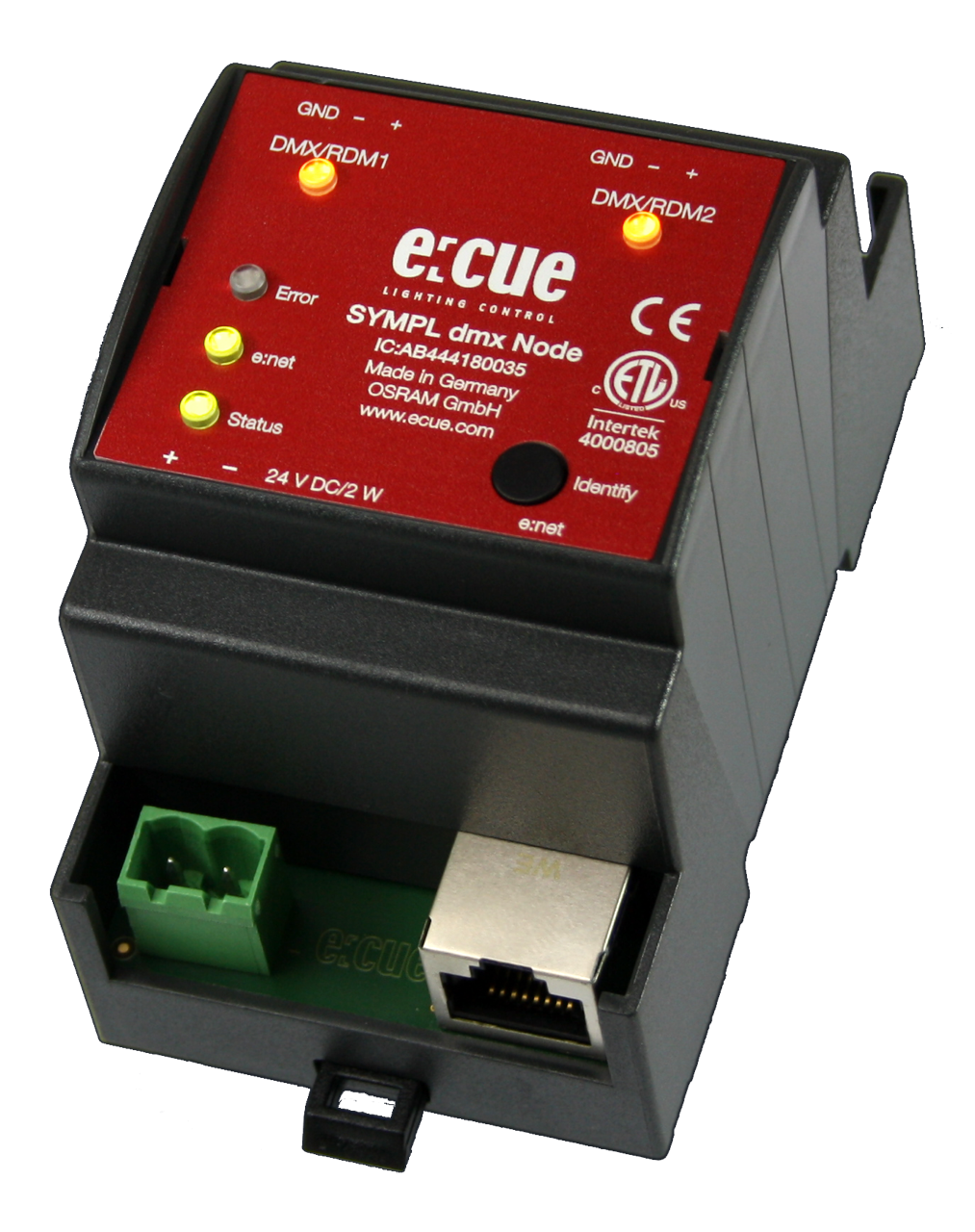

SYMPL dmx Node
EAN AB444180035
The SYMPL dmx Node is a two-channel DMX and RDM interface which can be used with e:cue’s lighting control software SYMPHOLIGHT.
- Two DMX512 outputs
- Both outputs support RDM
- Flexible mounting onto 35 mm DIN rails or vertical surfaces
- Simple and easy integration into e:cue SYMPHOLIGHT
- Separate webinterface for configuration
The SYMPL dmx Node is a two-channel DMX and RDM interface that can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides two independent DMX/RDM universes for up to 1024 channels. The SYMPL dmx Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). It is easily mounted onto standard 35 mm DIN rails or a suspension hole in the housing base, on walls, or on any other solid vertical surface.
| Dimensions (W x H x D) | 53.5 x 90.5 x 62 mm (excl. fastening clip) |
| Weight | 100 g |
| Power Supply | 24 V DC (terminal plug) or PoE IEEE 802.3af on RJ45 |
| Power Consumption | 2 W (incl. DMX termination) |
| Operating Temperature | 0 … 50 °C |
| Storage Temperature | -10 … 70 °C |
| Protection Class | IP20 |
| Mounting | 35 mm DIN rail (EN 60715), 3 units, or key hole on vertical surface |
| Certification | CE, ETL, UKCA |
| Interface | 2 x DMX512/RDM, individually isolated (1 kV), 3-pin terminal plug |
| Ethernet-Port | 1 x e:net 10/100 Mbit/s, RJ45 |
