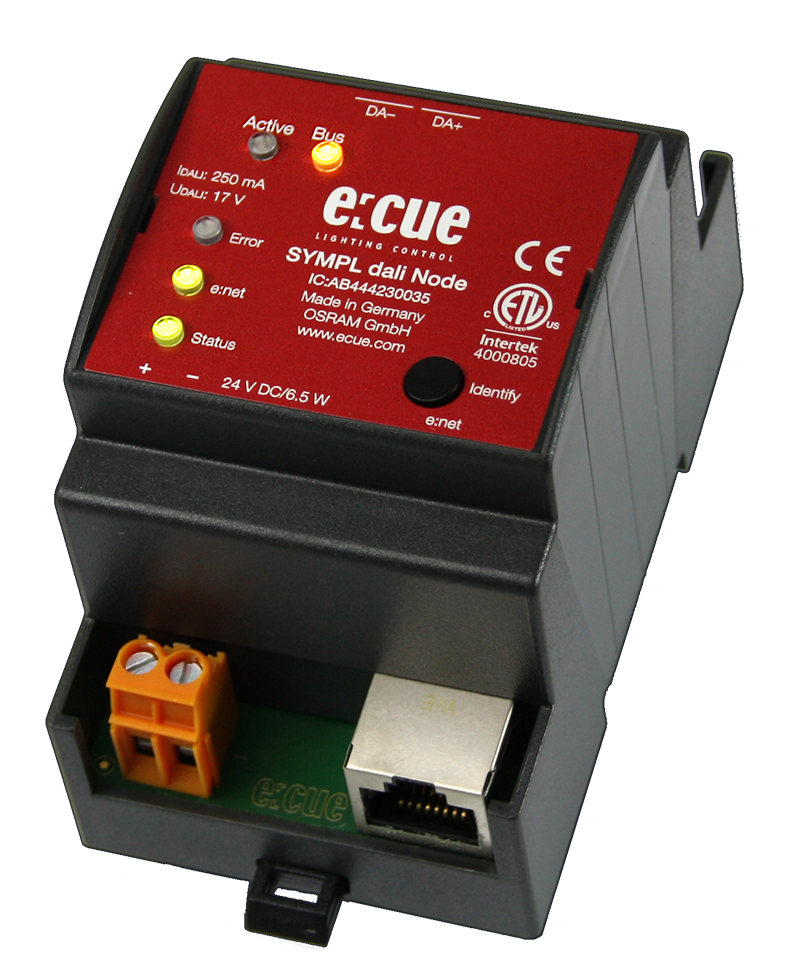

SYMPL dali Node
EAN AB444230035
The e:cue SYMPL dali Node is a single DALI line interface which can be used with e:cue’s lighting control software SYMPHOLIGHT.
- One DALI line for up to 128 DALI-2 devices
- Flexible mounting onto 35 mm DIN rails or vertical surfaces
- Simple and easy integration into e:cue SYMPHOLIGHT
- Separate webinterface for configuration
The e:cue SYMPL dali Node is a single DALI line interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides a DALI control for up to 128 DALI-2 devices. Supplied with voltage via an external adaptor. Easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface.
| Dimensions (W x H x D) | 53.5 x 90.5 x 62 mm (excl. fastening clip) |
| Weight | 100 g |
| Power Supply | 24 V DC (screw terminal) |
| Power Consumption | 6.5 W |
| Operating Temperature | 0 … 50 °C |
| Storage Temperature | -10 … 70 °C |
| Protection Class | IP20 |
| Mounting | 35 mm DIN rail (EN 60715), 3 units, or key hole on vertical surface |
| Certification | CE, ETL, UKCA |
| Interface | 1 x DALI line, conforms to EN 62386-101, 2-pin terminal plug |
| Interface Specifications | Max. IDALI = 250 mA; Bus voltage max. VDALI = 17 V; short circuit protection IDALISC = 12 mA |
| Ethernet-Port | 1 x e:net 10/100 Mbit/s, RJ-45 |
