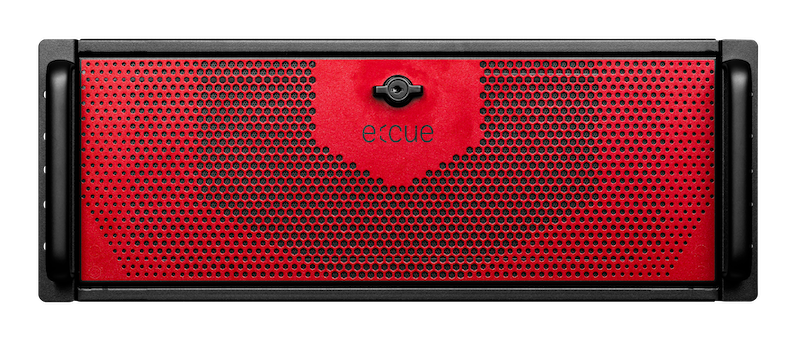

Lighting Control Engine 4
EAN CL25100005035
A high-performance server with two pre-installed e:cue software applications for medium to large projects.
- e:cue SYMPHOLIGHT and Lighting Application Suite software licenses, pre-installed
- High-quality industrial components for reliable 24/7 operation
- 2 x M.2 SSD in RAID 1 for increased system stability
- Easily mountable in 19-inch racks, space-saving (4U)
- 5 years of support and warranty
The Lighting Control Engine 4 (LCE4) is a high-performance server for controlling large lighting projects, with pre-installed e:cue SYMPHOLIGHT and Lighting Application Suite (LAS). As a central control unit it orchestrates all devices and lights in a project, supporting a wide range of Ethernet-based protocols. Shows and light scenes can be controlled via the internal web server from mobile devices, web browsers, or cloud applications. Also available with a multi-range PSU (IC CL25100005735).
| Dimensions (W x H x D) | 430 x 176 x 468 mm (excl. mounting brackets) |
| Power Supply | 200 … 240 V AC, 50/60 Hz |
| Power Consumption | 110 W typically |
| Operating Temperature | 0 … 40 °C |
| Storage Temperature | -10 … 70 °C |
| Protection Class | IP20 |
| Housing Material | Steel, front panel powder-coated |
| Mounting | 19-inch rack with rails |
| Certification | CE, FCC |
| USB | 1 x USB 3.0 Type-C, 2 x USB 3.0 (front); 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 2 x USB 2.0 (rear) |
| Ethernet Port | 2 x e:net 10/100/1000/2500 Mbps, RJ45 |
| Graphics | 2 x HDMI, 4 x DisplayPort |
| Data Storage | 2 x M.2 SSD (RAID 1) |
Downloads
EN_LCE4_Spec_v1p5.pdf · Datasheet · 621.3kB
⭳ download
EN_LCE4_Setup_v1p3.pdf · Manual · 2.62MB
⭳ download
