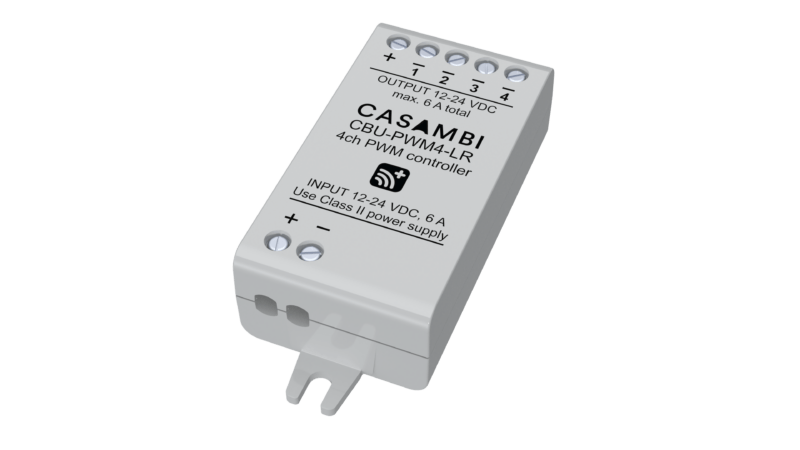

CBU-PWM4-LR Bluetooth 4-channel PWM dimmer, long range
EAN CBU-PWM4-LR
Bluetooth controllable, long-range four-channel PWM dimmer for constant-voltage LED loads such as LED strips and constant-voltage modules.
- Four PWM channels, 6.0 A combined output current freely divided between them
- Made for RGBW and tunable-white installations
- Protected against overvoltage, overcurrent and short circuit
- Controlled from the Casambi app (iOS / Android) or ordinary wall switches
- Automatic mesh network of up to 250 units
- Long-range radio for units set far apart or behind metalwork
- Standby draw under 0.3 W
Wires in between a 12-24 VDC supply and the LED load, so one unit dims a four-channel strip run without any separate driver electronics. Because the 6 A is shared freely across the channels, an RGBW fixture and an unequal tunable-white pair are both handled by the same part. Minimum load is 3 W.
| Input voltage | 12-24 VDC, Class II |
| Output voltage | 12-24 VDC |
| Output channels | 4 |
| Max output current | 6.0 A total, freely divided |
| Max output power | 144 W at 24 VDC; 72 W at 12 VDC |
| Minimum load | 3 W |
| PWM frequency | 400 Hz |
| No-load standby power | < 0.3 W |
| Operating temperature | -20 … +45 °C |
| Max case temperature | +75 °C |
| Storage temperature | -25 … +75 °C |
| Radio frequency | 2402-2480 MHz |
| Max radio output power | +8 dBm |
| Wire range | 0.75-1.5 mm² (14-22 AWG) |
| Dimensions | 72.6 x 30.0 x 18.0 mm |
| Weight | 23 g |
| Protection rating | IP20 |
| Protection class | Class II |
| Certifications | CE, AU/NZ |
