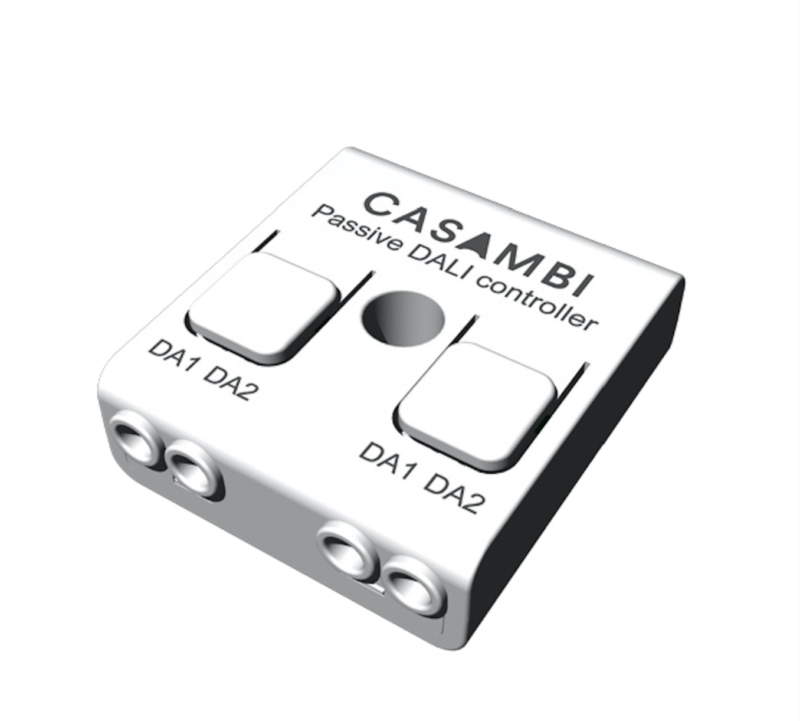

CBU-DCS Bluetooth DALI controller, bus-powered
EAN CBU-DCS
Bluetooth controllable, Casambi enabled DALI controller powered directly from the DALI bus — no power supply of its own.
- Bluetooth-controlled DALI management device
- Works with DALI sensors for presence detection and daylight harvesting
- Supports Device Type 6, Device Type 8, tunable white and RGB control
- Two connector sets internally in parallel, simplifying installation
- Philips SR certified, works with OSRAM DEXAL systems
Because it draws its power from the DALI bus itself, the CBU-DCS adds Casambi Bluetooth control to an existing DALI installation without any extra wiring or a separate supply. Up to three DALI loads per unit.
| Input | DALI bus |
| Voltage range | 9.5-22.5 VDC |
| Max input current (idle) | 5 mA |
| Peak input current | 30 mA |
| Max DALI bus current | 250 mA |
| DALI loads | 3 |
| Dimensions | 40.4 x 36.3 x 14.0 mm |
| Weight | 15 g |
| Protection rating | IP20, indoor use only |
| Bluetooth declaration | D040049 |
Downloads
CBU_DCS_Data-Sheet_EU_EN_2_0_24092021.pdf · Datasheet · 429.49kB
