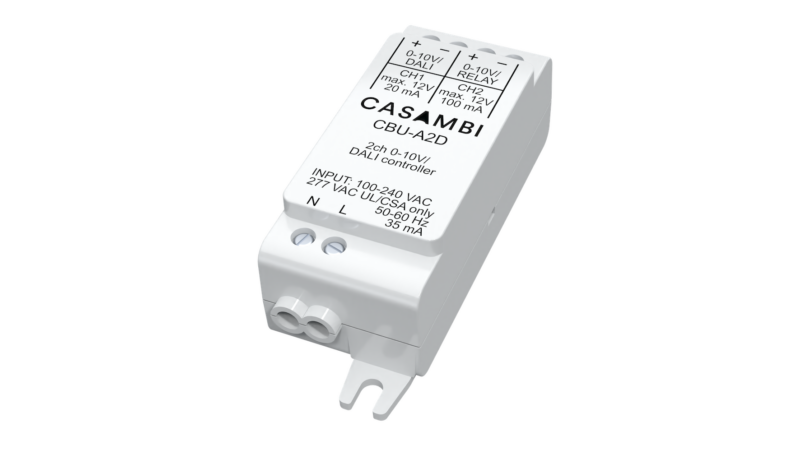

CBU-A2D Bluetooth 2-channel 0-10V / DALI controller
EAN CBU-A2D
Bluetooth controllable, Casambi enabled two-channel 0-10V / DALI controller with a universal 100-277 VAC input.
- Two channels: drives one or two 0-10V LED drivers, or a tunable-white driver
- Universal 100-277 VAC input voltage range
- Configurable DALI mode for LED drivers and sensors
- Presence detection and daylight harvesting
- Relay output on channel 2
- Compact 76 x 26 x 23 mm body
The CBU-A2D is the two-channel workhorse of the range: one unit controls a tunable-white pair or two separate 0-10V drivers, and switches to DALI mode when the installation calls for it. The wide mains input makes it suitable for EU, UL and CSA markets from one part number.
| Voltage range | 100-240 VAC (CE/UL/CSA); 277 VAC (UL/CSA only) |
| Frequency | 50-60 Hz |
| Max mains current | 35 mA |
| No-load standby power | < 0.5 W |
| Channel 1 — 0-10V | 0-10 VDC, max 7 mA (sinking) |
| Channel 1 — DALI | 12 VDC, max 20 mA (sourcing) |
| Channel 2 — 0-10V | 0-10 VDC, max 7 mA (sinking) |
| Channel 2 — relay | 12 VDC, max 100 mA (sourcing) |
| Dimensions | 76.0 x 26.0 x 23.0 mm |
| Protection rating | IP20 |
| Protection class | Class II |
